50A05R-S45ON06-C
50A05R-S45ON06-C
50A05R-S45ON06-C

50A05R-S45ON06-C

UGC DOR8347568
par Dormer Pramet
Primary Use:
Availability in Distribution Centers:
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)
For more information about this product, click here
$899.00 CAD - $899.00 CAD
$899.00 CAD
$899.00 CAD - $899.00 CAD
$899.00 CAD

Vendu en lots de : 1

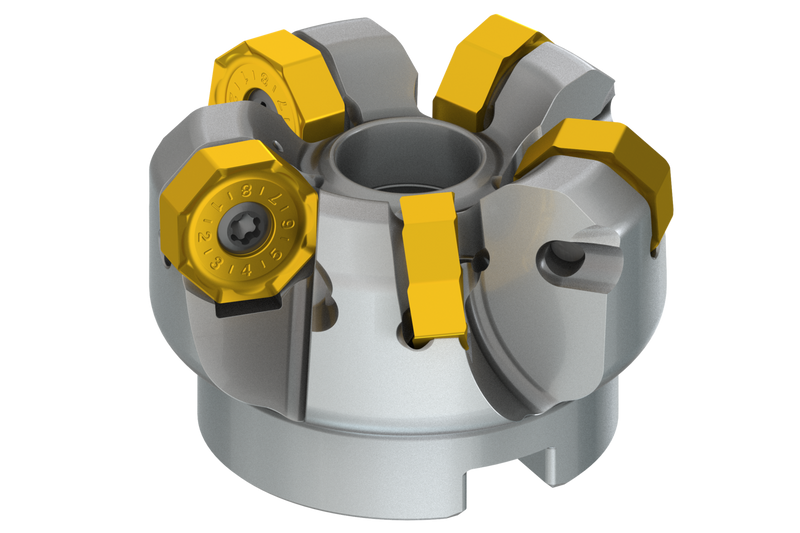

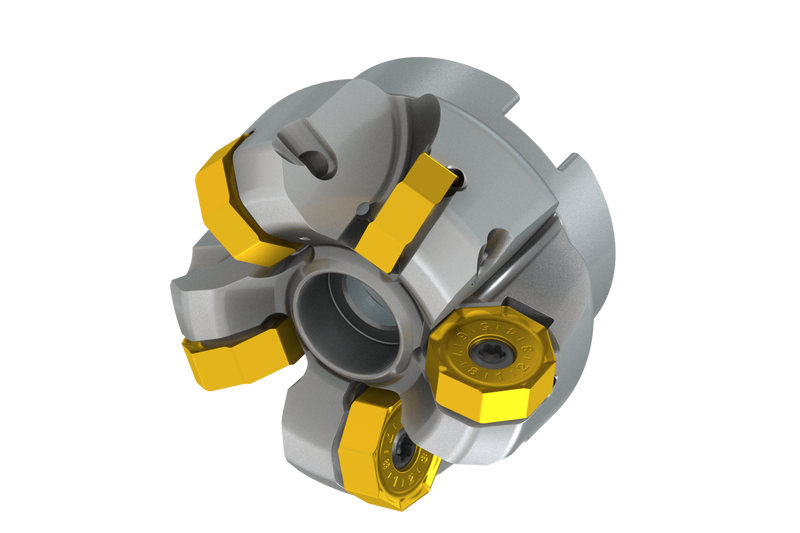

Fraise à surfacer de géométrie double négative qui utilise 5 plaquettes double face ONMX 0605.., ONMX 0605..-W ou SNMX 1705.., diamètre de coupe de 50mm à maximum 60,8mm avec un angle d'attaque de 43° et un alésage de connexion de 22mm selon DIN 8030-A, longueur fonctionnelle de 40mm et, arrosage par l'intérieur pour le surfaçage et le chanfreinage avec une profondeur de coupe maximale de ON.. 4mm, SN.. 7mm

For more information about this product, click here

Identification
Ordering Code (ANSI/ISO)50A05R-S45ON06-C
Product Number8347568
Product FamilySON06C
Insert Geometry
Depth of Cut Max — mm (APMX)4.0 mm

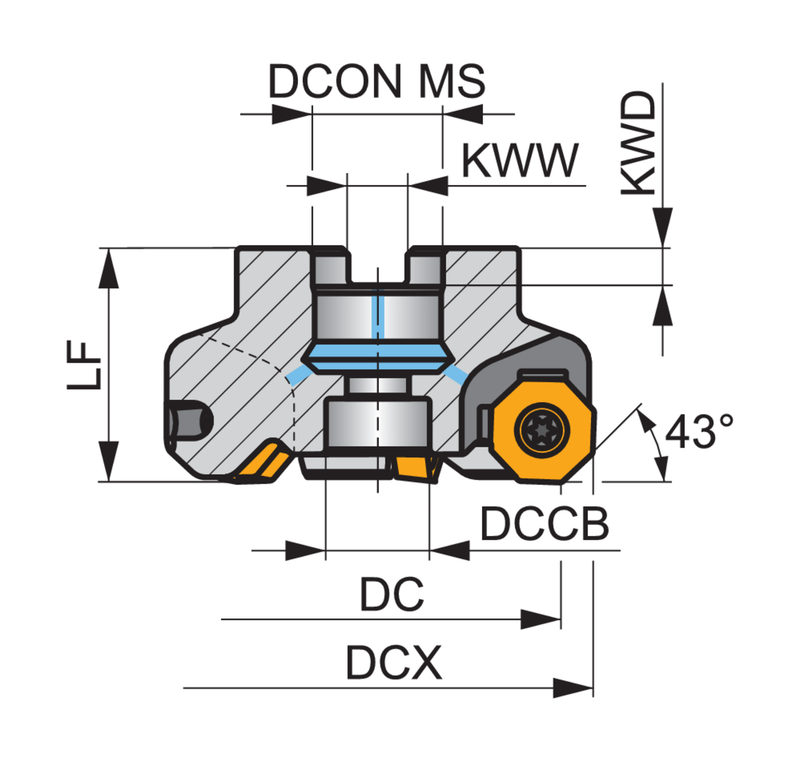

Dimensions
Cutting Diameter — in (DC)1.969"
Cutting Diameter — mm (DC)50.0 mm
Functional Length — in (LF)1.575"
Functional Length — mm (LF)40.0 mm
Connection Dia. — in (DCON)0.866"
Connection Dia. — mm (DCON)22.0 mm
Number of Flutes (NOF)5
Tool Information
Tool DesignSON06C
ShankFraise à surfacer-planer DIN 8030 A
Through Coolant Yes
Reference Numbers
EDP Number8347568
EAN3603604105279
File Type Download
50A05R-S45ON06-C — 3D Model STP Download
50A05R-S45ON06-C — 2D Model DXF Download
50A05R-S45ON06-C — Line Drawing PDF Download
