63A06R-S45ON06-C
63A06R-S45ON06-C
63A06R-S45ON06-C

63A06R-S45ON06-C

UGC DOR8347580
par Dormer Pramet
Primary Use:
Availability in Distribution Centers:
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)
For more information about this product, click here
$996.00 CAD - $996.00 CAD
$996.00 CAD
$996.00 CAD - $996.00 CAD
$996.00 CAD

Vendu en lots de : 1

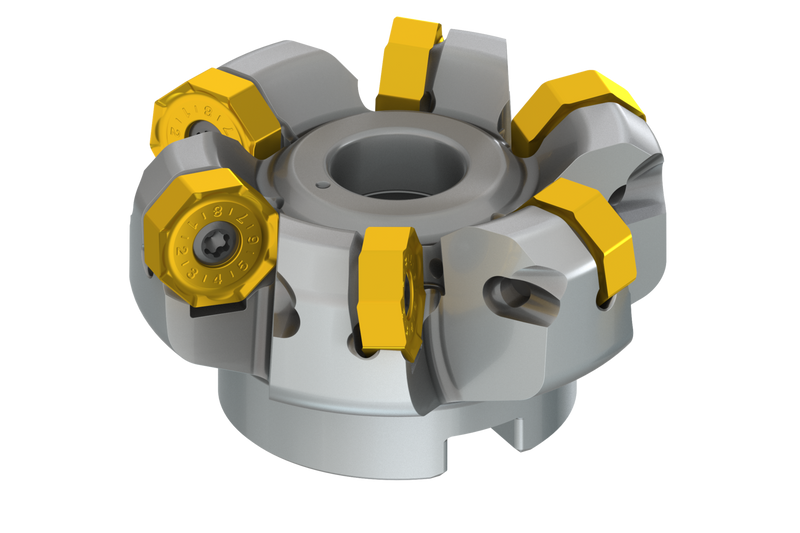

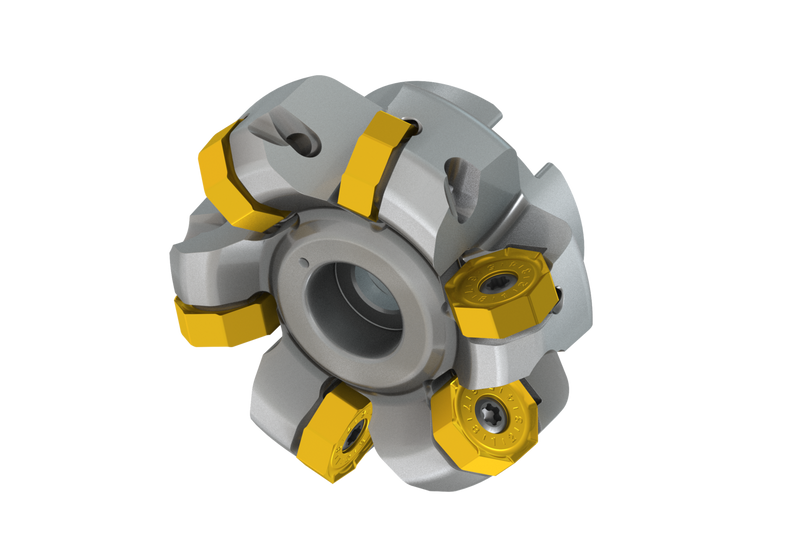

Fraise à surfacer à géométrie double négative qui utilise 6 plaquettes double face ONMX 0605.., ONMX 0605..-W ou SNMX 1705.., diamètre de coupe de 63 mm à un maximum de 73,8 mm avec un angle d'attaque de 43° et un alésage de raccordement de 22 mm selon DIN 8030-A, 40 mm fonctionnel et, arrosage central et pas différentiel pour le surfaçage et le chanfreinage avec une profondeur de coupe maximale de ON.. 4 mm, SN.. 7 mm

For more information about this product, click here

Identification
Ordering Code (ANSI/ISO)63A06R-S45ON06-C
Product Number8347580
Product FamilySON06C
Insert Geometry
Depth of Cut Max — mm (APMX)4.0 mm

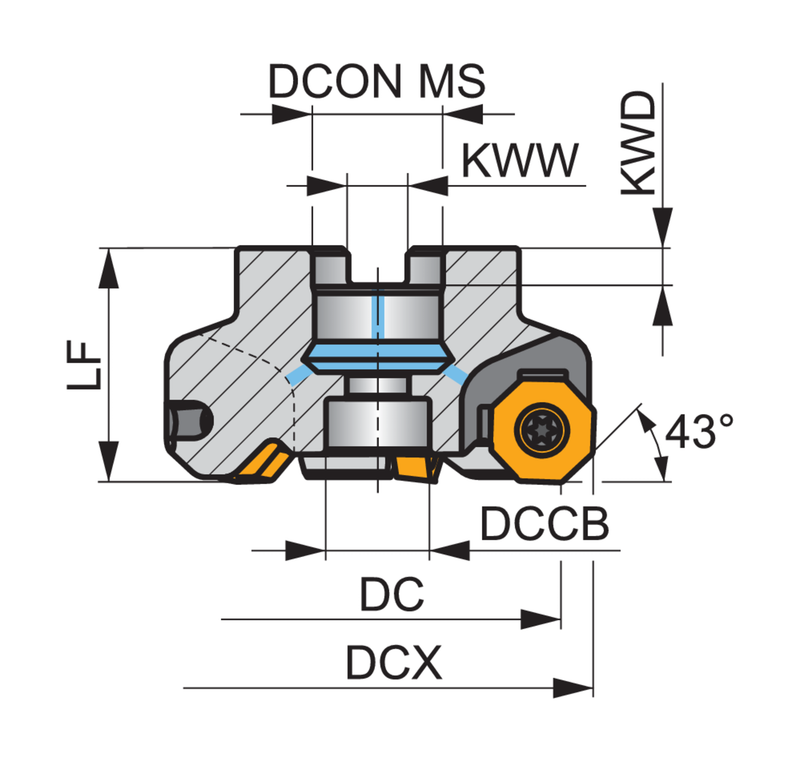

Dimensions
Cutting Diameter — in (DC)2.48"
Cutting Diameter — mm (DC)63.0 mm
Functional Length — in (LF)1.575"
Functional Length — mm (LF)40.0 mm
Connection Dia. — in (DCON)0.866"
Connection Dia. — mm (DCON)22.0 mm
Number of Flutes (NOF)6
Tool Information
Tool DesignSON06C
ShankFraise à surfacer-dresser DIN 8030 A
Through Coolant Yes
Reference Numbers
EDP Number8347580
EAN3603604105293
File Type Download
63A06R-S45ON06-C — 3D Model STP Download
63A06R-S45ON06-C — 2D Model DXF Download
63A06R-S45ON06-C — Line Drawing PDF Download
