250C18R-S45ON06-C
250C18R-S45ON06-C
250C18R-S45ON06-C

250C18R-S45ON06-C

UGC DOR8347792
par Dormer Pramet
Primary Use:
Availability in Distribution Centers:
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)
For more information about this product, click here
$3,984.00 CAD - $3,984.00 CAD
$3,984.00 CAD
$3,984.00 CAD - $3,984.00 CAD
$3,984.00 CAD

Vendu en lots de : 1

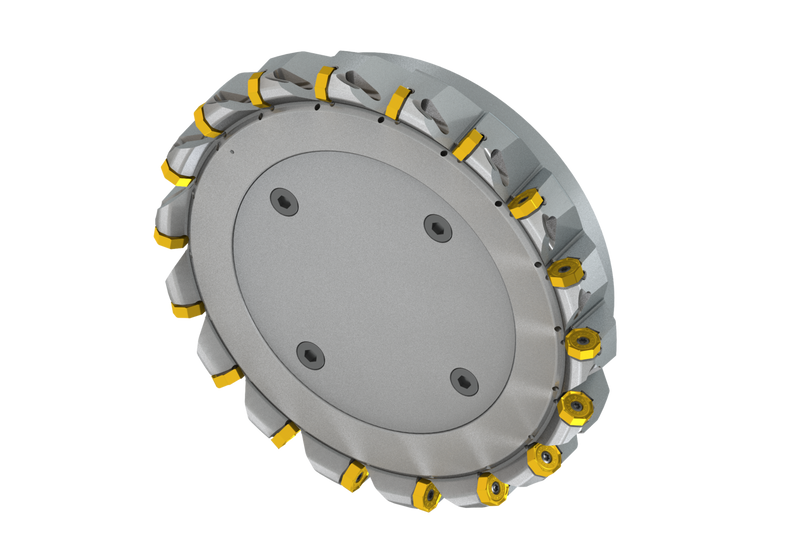

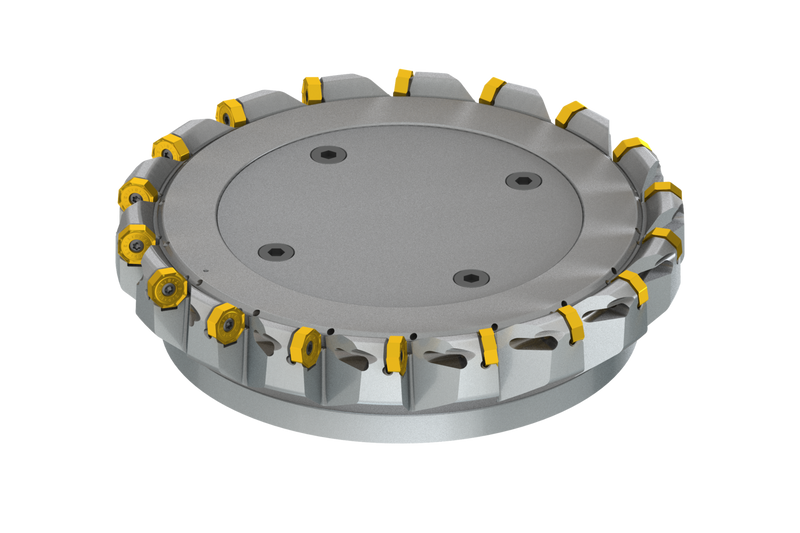

Fraise à surfacer avec géométrie double négative qui utilise 18 plaquettes double face ONMX 0605.., ONMX 0605..-W ou SNMX 1705.., diamètre de coupe de 250mm à un maximum de 260,8mm avec un angle d'attaque de 43° et un alésage de raccordement de 60mm selon DIN 8030-C, fonctionnel de 63mm et, arrosage central pour le surfaçage et le chanfreinage avec une profondeur de coupe maximale de ON.. 4mm, SN.. 7mm

For more information about this product, click here

Identification
Ordering Code (ANSI/ISO)250C18R-S45ON06-C
Product Number8347792
Product FamilySON06C
Insert Geometry
Depth of Cut Max — mm (APMX)4.0 mm

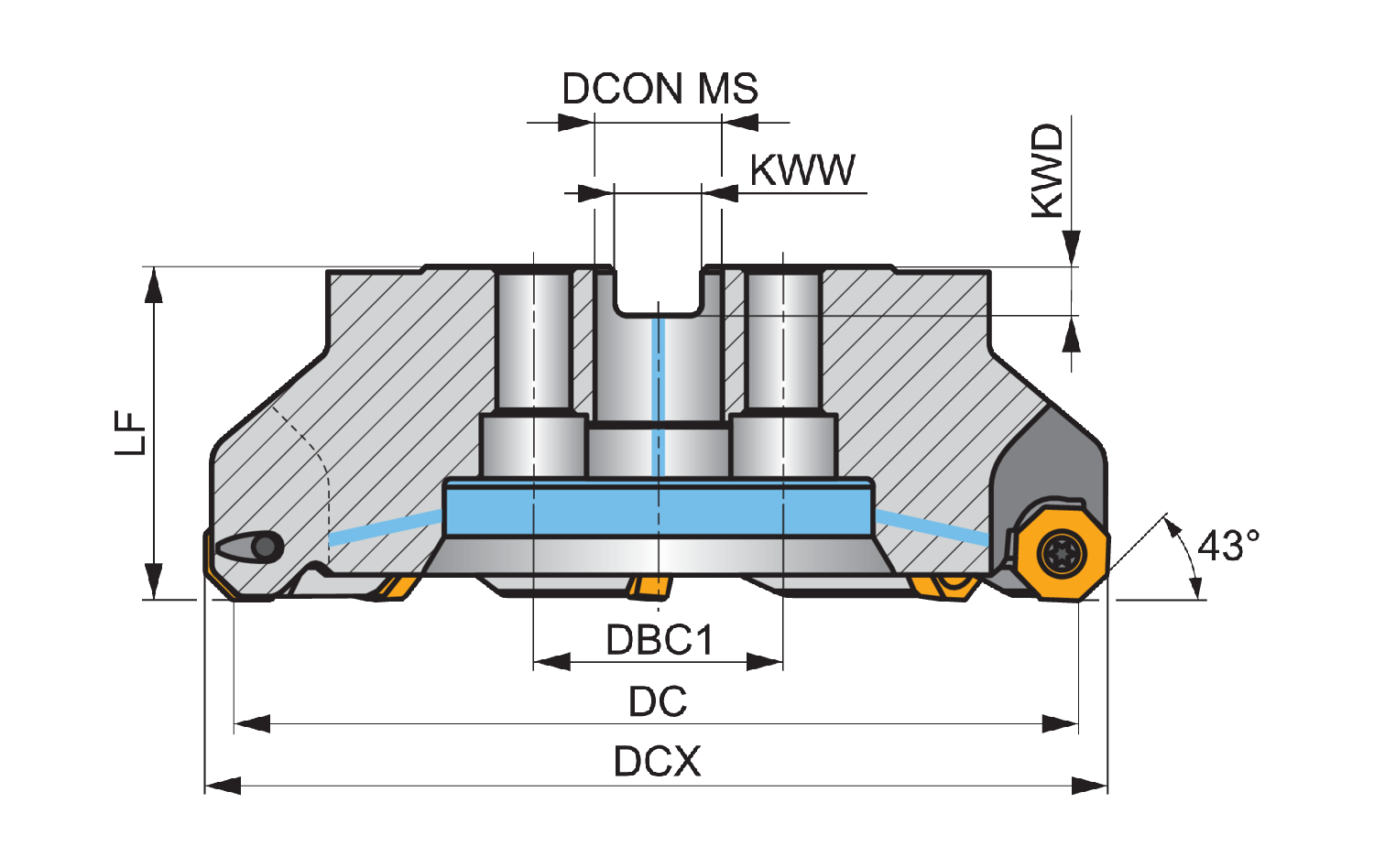

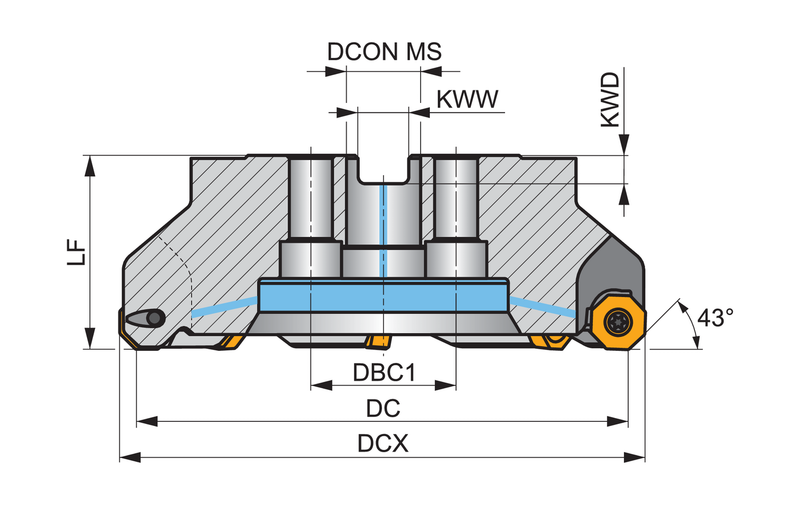

Dimensions
Cutting Diameter — in (DC)9.843"
Cutting Diameter — mm (DC)250.0 mm
Functional Length — in (LF)2.48"
Functional Length — mm (LF)63.0 mm
Connection Dia. — in (DCON)2.362"
Connection Dia. — mm (DCON)60.0 mm
Number of Flutes (NOF)18
Tool Information
Tool DesignSON06C
ShankFraise à surfacer-dresser DIN 8030 C
Through Coolant Yes
Reference Numbers
EDP Number8347792
EAN3603604105453
File Type Download
250C18R-S45ON06-C — 3D Model STP Download
250C18R-S45ON06-C — 2D Model DXF Download
250C18R-S45ON06-C — Line Drawing PDF Download
