ONMX 060508SR-F:M6330
ONMX 060508SR-F:M6330

ONMX 060508SR-F:M6330

UGC DOR8348373
par Dormer Pramet
Primary Use:
Availability in Distribution Centers:
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)
For more information about this product, click here
$37.63 CAD - $37.63 CAD
$37.63 CAD
$37.63 CAD - $37.63 CAD
$37.63 CAD

Vendu en lots de : 10

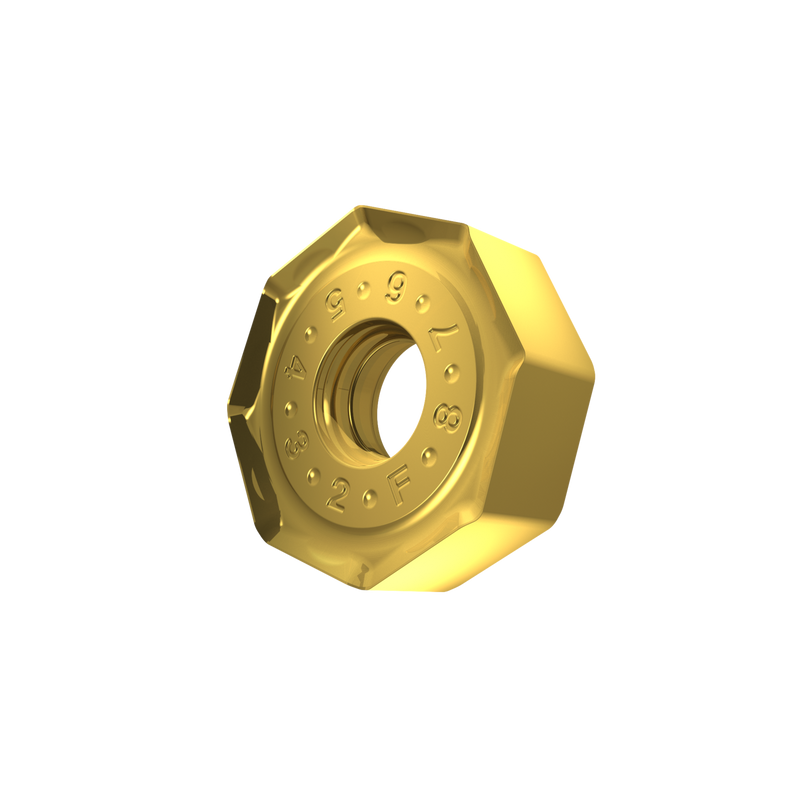

Plaquette de fraisage double face ONMX 0605, octogonale pour une profondeur de coupe maximale de 4mm, avec un rayon de bec de 0,8mm, une précision de positionnement selon la classe de tolérance ISO-M et une géométrie F avec arêtes de coupe arrondies et facette, carbure WC-Co revêtu PVD M6330 dans les plages de nuances ISO P20 -P35/M20 -M35 et S20 -S30 pour l'usinage de l'acier, de l'acier inoxydable et du superalliage avec des fraises à surfacer SON06C

For more information about this product, click here

Identification
Ordering Code (ANSI/ISO)ONMX 060508SR-F:M6330
GradeM6330
Chipbreaker (CBMD)F
Product Number8348373
Product FamilyONMX 06
Insert Geometry
Insert DesignONMX 06
Insert Shape Code (SC)O - octogonal
Inscribed Circle Dia. — in (IC)0.669"
Inscribed Circle Dia. — mm (IC)17.0 mm
Insert Thickness — in (S)0.219"
Insert Thickness — mm (S)5.56 mm
Corner Radius — in (RE)0.031"
Corner Radius — mm (RE)0.8 mm
Tool Information
Reference Numbers
EDP Number8348373
EAN3603604110365
Material Group Suitability
P — Steel and Cast Steel Usage principal
M — Stainless Steel Usage principal
S — High Temperature Alloys Usage principal
File Type Download

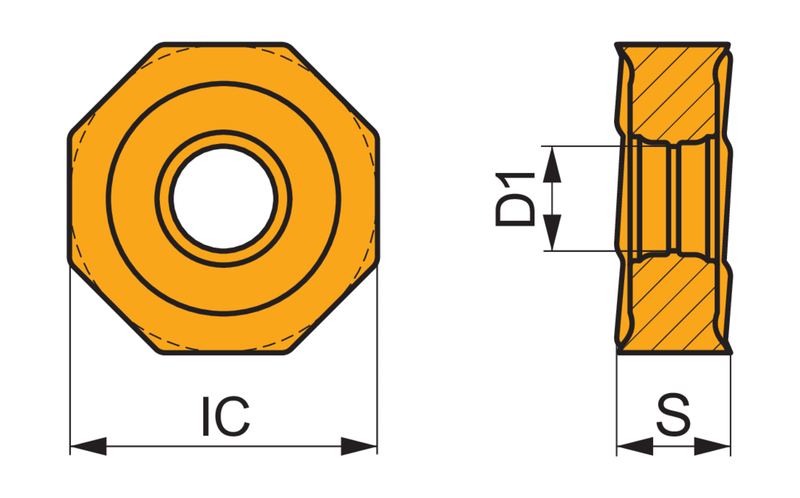

ONMX 060508SR-F:M6330 — Line Drawing PDF Download
