ONMX 060508SR-F:M8330
ONMX 060508SR-F:M8330

ONMX 060508SR-F:M8330

UGC DOR8348374
par Dormer Pramet
Primary Use: Possible Use:
Availability in Distribution Centers:
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)
For more information about this product, click here
$37.71 CAD - $37.71 CAD
$37.71 CAD
$37.71 CAD - $37.71 CAD
$37.71 CAD

Vendu en lots de : 10

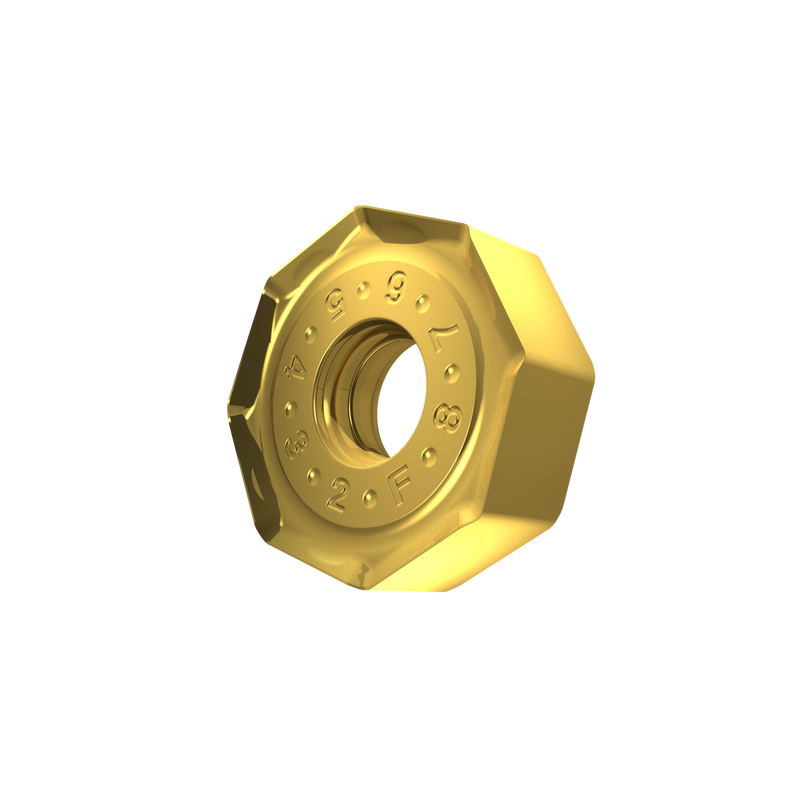

Plaquette de fraisage double-face ONMX 0605, octogonale pour une profondeur de coupe maximale de 4 mm, avec un rayon de bec de 0,8 mm, une précision de positionnement selon la classe de tolérance ISO M et une géométrie F avec arêtes de coupe arrondies et facette, en carbure WC-Co à grains fins revêtu PVD M8330 dans les plages de nuances ISO P20 -P40 et M20 -M35 pour l'usinage de l'acier et de l'acier inoxydable avec les fraises à surfacer SON06C

For more information about this product, click here

Identification
Ordering Code (ANSI/ISO)ONMX 060508SR-F:M8330
GradeM8330
Chipbreaker (CBMD)F
Product Number8348374
Product FamilyONMX 06

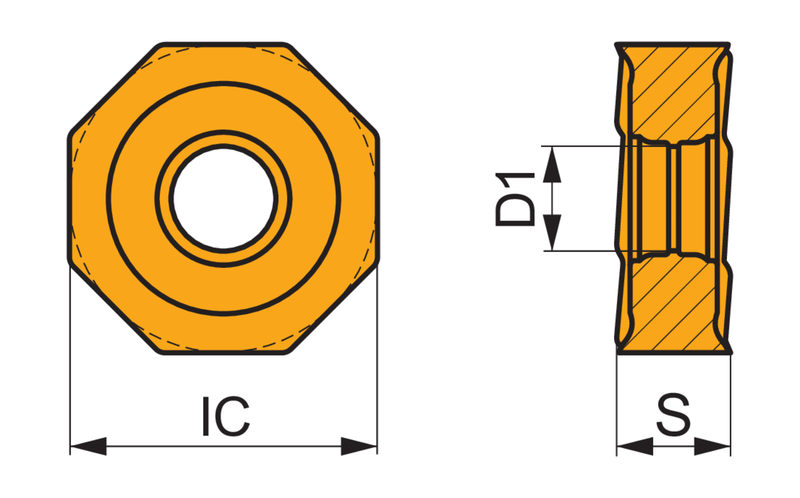

Insert Geometry
Insert DesignONMX 06
Insert Shape Code (SC)O - octogonal
Inscribed Circle Dia. — in (IC)0.669"
Inscribed Circle Dia. — mm (IC)17.0 mm
Insert Thickness — in (S)0.219"
Insert Thickness — mm (S)5.56 mm
Corner Radius — in (RE)0.031"
Corner Radius — mm (RE)0.8 mm
Tool Information
Reference Numbers
EDP Number8348374
EAN3603604110372
Material Group Suitability
P — Steel and Cast Steel Usage principal
M — Stainless Steel Usage principal
S — High Temperature Alloys Utilisation possible
File Type Download
ONMX 060508SR-F:M8330 — Line Drawing PDF Download
