ONMX 060508SR-M:M8340
ONMX 060508SR-M:M8340

ONMX 060508SR-M:M8340

UGC DOR8348443
par Dormer Pramet
Primary Use: Possible Use:
Availability in Distribution Centers:
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)
For more information about this product, click here
$37.71 CAD - $37.71 CAD
$37.71 CAD
$37.71 CAD - $37.71 CAD
$37.71 CAD

Vendu en lots de : 10

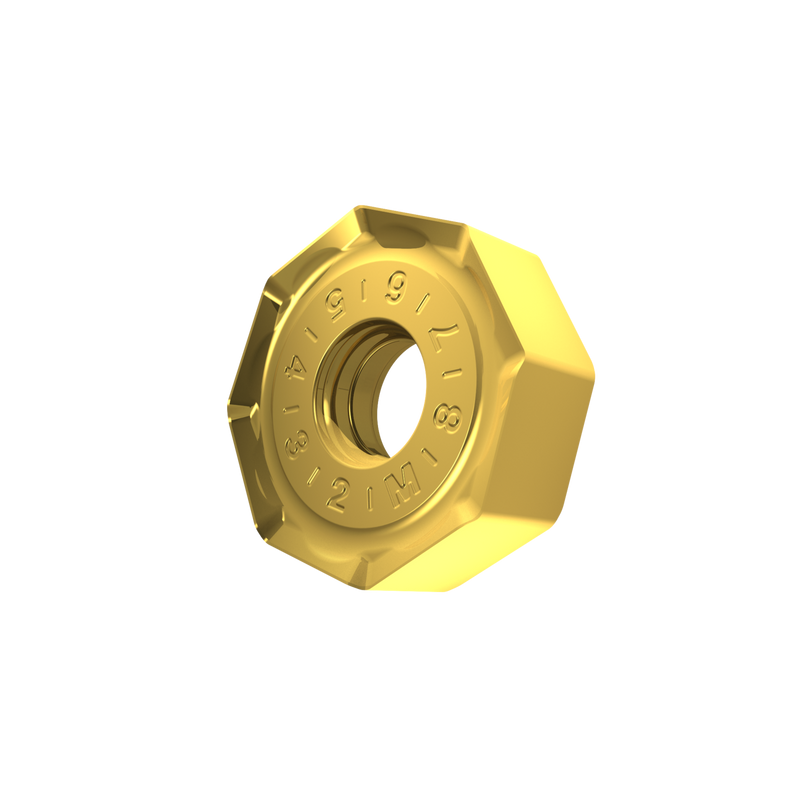

Plaquette de fraisage double-face ONMX 0605, octogonale pour une profondeur de coupe maximale de 4mm, avec un rayon de bec de 0.8mm, une précision de positionnement selon la classe de tolérance ISO-M et une géométrie M avec des arêtes de coupe arrondies et un chanfrein, carbure WC-Co à grains fins revêtu PVD M8340 dans la gamme de nuances ISO P25 -P50 pour l'usinage de l'acier avec des fraises à surfacer SON06C

For more information about this product, click here

Identification
Ordering Code (ANSI/ISO)ONMX 060508SR-M:M8340
GradeM8340
Chipbreaker (CBMD)M
Product Number8348443
Product FamilyONMX 06

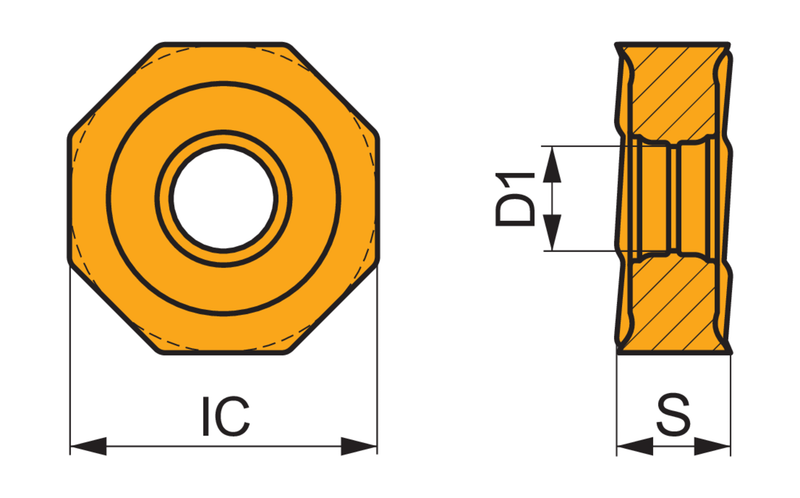

Insert Geometry
Insert DesignONMX 06
Insert Shape Code (SC)O - octogonal
Inscribed Circle Dia. — in (IC)0.669"
Inscribed Circle Dia. — mm (IC)17.0 mm
Insert Thickness — in (S)0.219"
Insert Thickness — mm (S)5.56 mm
Corner Radius — in (RE)0.031"
Corner Radius — mm (RE)0.8 mm
Tool Information
Reference Numbers
EDP Number8348443
EAN3603604110433
Material Group Suitability
P — Steel and Cast Steel Usage principal
M — Stainless Steel Utilisation possible
S — High Temperature Alloys Utilisation possible
File Type Download
ONMX 060508SR-M:M8340 — Line Drawing PDF Download
