ONMX 060508SR-M:M9325
ONMX 060508SR-M:M9325

ONMX 060508SR-M:M9325

UGC DOR8348444
par Dormer Pramet
Primary Use: Possible Use:
Availability in Distribution Centers:
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)
For more information about this product, click here
$37.71 CAD - $37.71 CAD
$37.71 CAD
$37.71 CAD - $37.71 CAD
$37.71 CAD

Vendu en lots de : 10

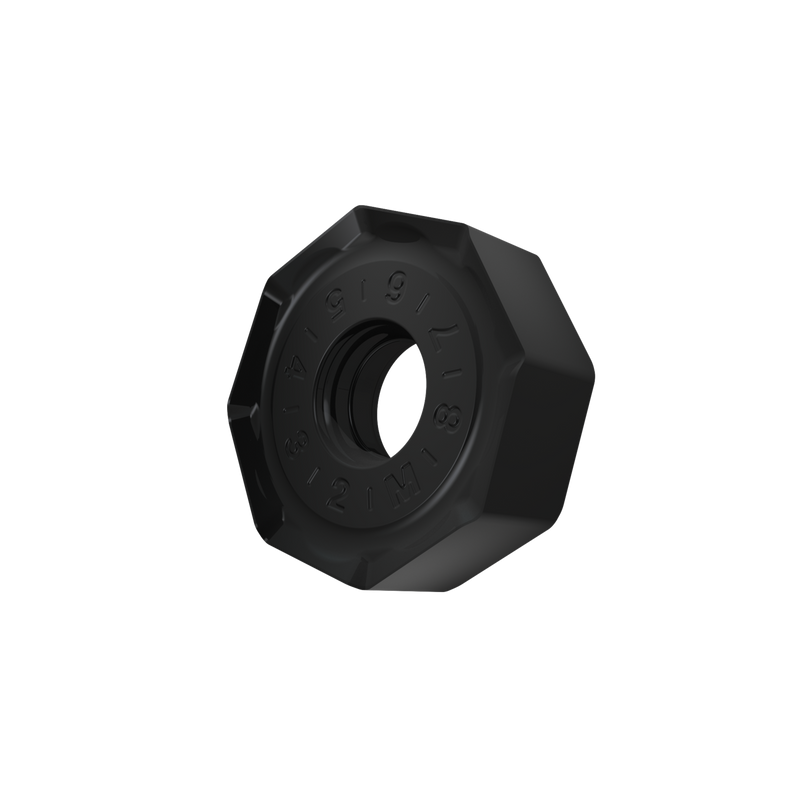

Plaquette de fraisage double face ONMX 0605, octogonale pour une profondeur de coupe maximale de 4mm, avec un rayon de bec de 0,8mm, une précision de positionnement selon la classe de tolérance ISO-M et une géométrie M avec des arêtes de coupe et un listel arrondis, en carbure WC-Co revêtu M9325 MT-CVD dans la gamme de nuances ISO P10 -P30 pour l'usinage de l'acier avec les fraises à surfacer SON06C

For more information about this product, click here

Identification
Ordering Code (ANSI/ISO)ONMX 060508SR-M:M9325
GradeM9325
Chipbreaker (CBMD)M
Product Number8348444
Product FamilyONMX 06

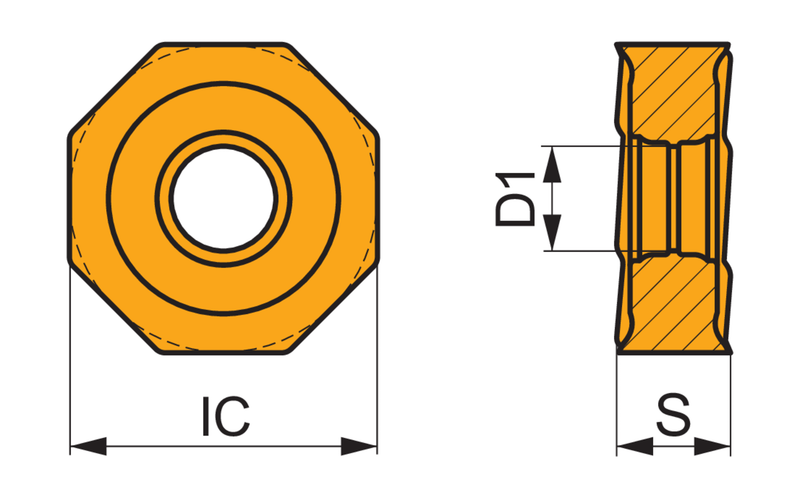

Insert Geometry
Insert DesignONMX 06
Insert Shape Code (SC)O - octogonale
Inscribed Circle Dia. — in (IC)0.669"
Inscribed Circle Dia. — mm (IC)17.0 mm
Insert Thickness — in (S)0.219"
Insert Thickness — mm (S)5.56 mm
Corner Radius — in (RE)0.031"
Corner Radius — mm (RE)0.8 mm
Tool Information
Reference Numbers
EDP Number8348444
EAN3603604110440
Material Group Suitability
P — Steel and Cast Steel Usage principal
H — Hardened Materials Usage possible
File Type Download
ONMX 060508SR-M:M9325 — Line Drawing PDF Download
