ONMX 060508SR-R:8215
ONMX 060508SR-R:8215

ONMX 060508SR-R:8215

UGC DOR8348736
par Dormer Pramet
Primary Use:
Availability in Distribution Centers:
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)
For more information about this product, click here
$37.07 CAD - $37.07 CAD
$37.07 CAD
$37.07 CAD - $37.07 CAD
$37.07 CAD

Vendu en lots de : 10

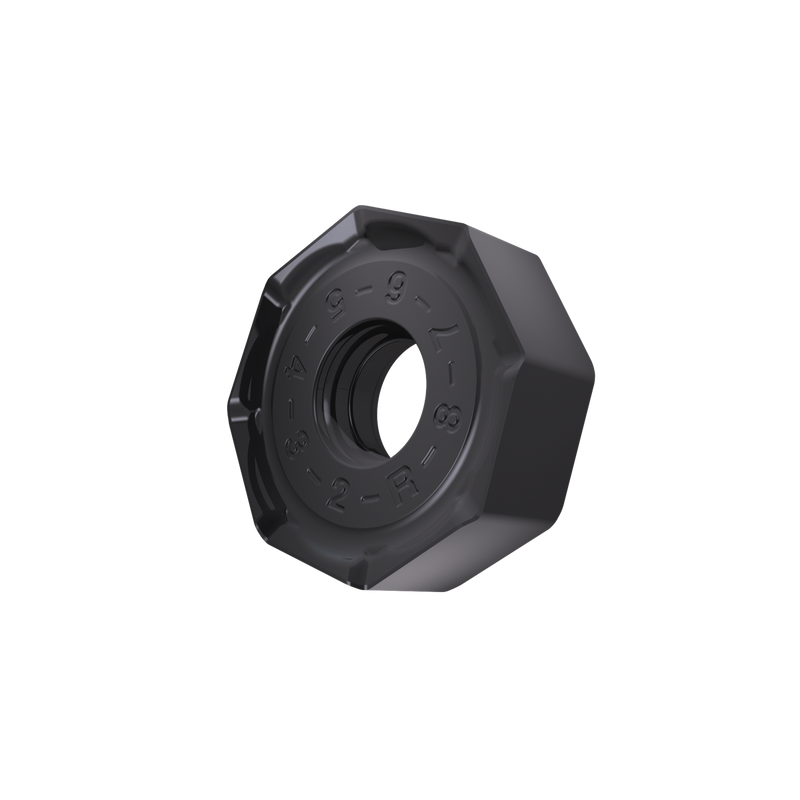

Plaquette de fraisage double face ONMX 0605, octogonale pour une profondeur de coupe maximale de 4mm, avec rayon de coin de 0.8mm, une précision de positionnement selon la classe de tolérance ISO-M et géométrie R avec arêtes de coupe arrondies et facette, carbure WC-Co à grain fin revêtu PVD 8215 dans les plages de grades ISO P10 -P20/K10 -K25 et H10 -H15 pour l'usinage de l'acier, de la fonte et des matériaux trempés avec fraises à surfacer SON06C

For more information about this product, click here

Identification
Ordering Code (ANSI/ISO)ONMX 060508SR-R:8215
Grade8215
Chipbreaker (CBMD)R
Product Number8348736
Product FamilyONMX 06

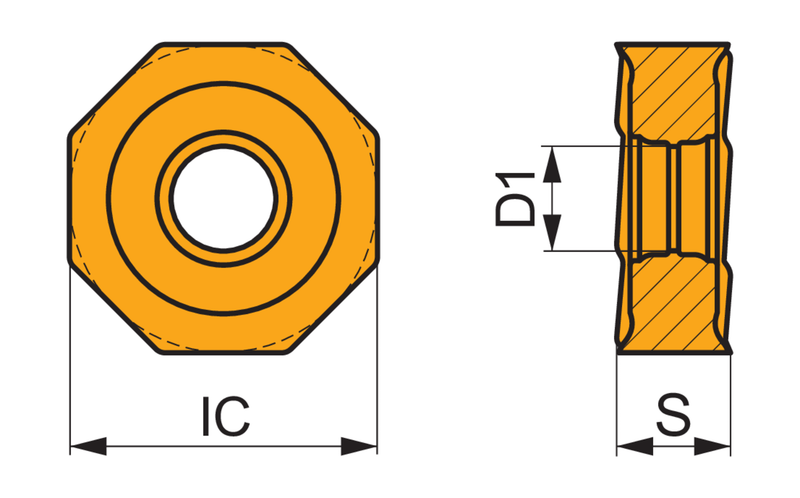

Insert Geometry
Insert DesignONMX 06
Insert Shape Code (SC)O - octogonal
Inscribed Circle Dia. — in (IC)0.669"
Inscribed Circle Dia. — mm (IC)17.0 mm
Insert Thickness — in (S)0.219"
Insert Thickness — mm (S)5.56 mm
Corner Radius — in (RE)0.031"
Corner Radius — mm (RE)0.8 mm
Tool Information
Reference Numbers
EDP Number8348736
EAN3603604108508
Material Group Suitability
P — Steel and Cast Steel Usage principal
K — Cast Iron Usage principal
H — Hardened Materials Usage principal
File Type Download
ONMX 060508SR-R:8215 — Line Drawing PDF Download
