ONMX 060508SR-R:M8340
ONMX 060508SR-R:M8340

ONMX 060508SR-R:M8340

UGC DOR8348738
par Dormer Pramet
Primary Use: Possible Use:
Availability in Distribution Centers:
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)
For more information about this product, click here
$37.71 CAD - $37.71 CAD
$37.71 CAD
$37.71 CAD - $37.71 CAD
$37.71 CAD

Vendu en lots de : 10

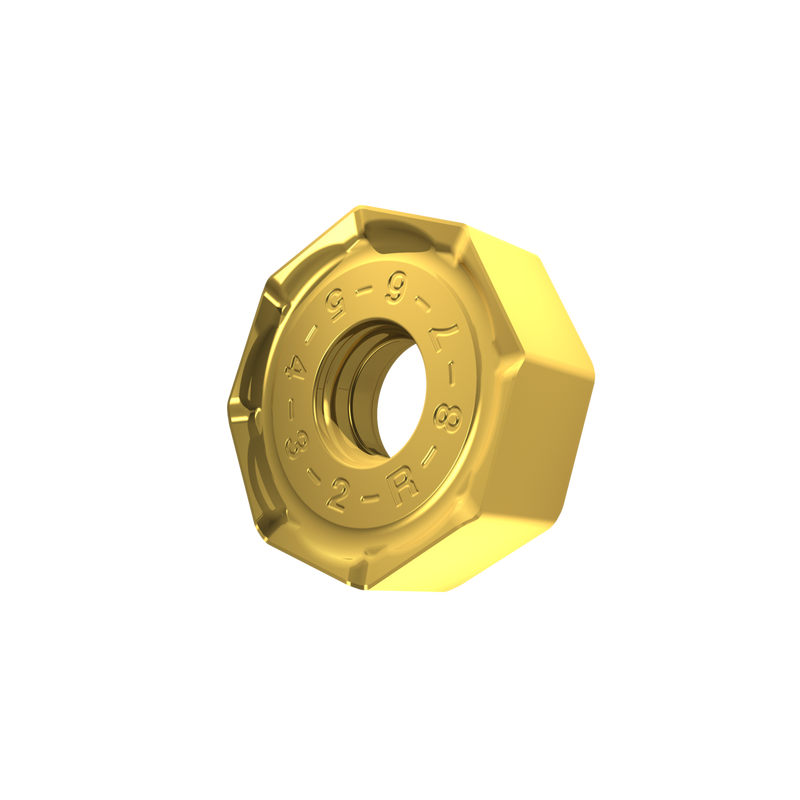

Plaquette de fraisage double face ONMX 0605, octogonale pour une profondeur de coupe maximale de 4mm, avec un rayon de coin de 0.8mm, une précision de positionnement selon la classe de tolérance ISO-M et une géométrie R avec des arêtes de coupe arrondies et un chanfrein, carbure WC-Co à grains fins revêtu PVD M8340 dans la plage de nuances ISO P25 -P50 pour l'usinage de l'acier avec les fraises à surfacer SON06C

For more information about this product, click here

Identification
Ordering Code (ANSI/ISO)ONMX 060508SR-R:M8340
GradeM8340
Chipbreaker (CBMD)R
Product Number8348738
Product FamilyONMX 06
Insert Geometry
Insert DesignONMX 06
Insert Shape Code (SC)O - octogonal
Inscribed Circle Dia. — in (IC)0.669"
Inscribed Circle Dia. — mm (IC)17.0 mm
Insert Thickness — in (S)0.219"
Insert Thickness — mm (S)5.56 mm
Corner Radius — in (RE)0.031"
Corner Radius — mm (RE)0.8 mm
Tool Information
Reference Numbers
EDP Number8348738
EAN3603604108522
Material Group Suitability
P — Steel and Cast Steel Usage principal
K — Cast Iron Utilisation possible
File Type Download

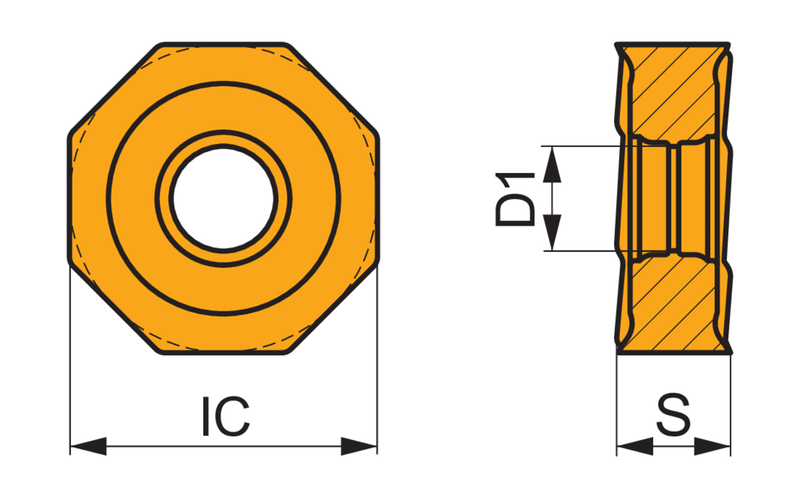

ONMX 060508SR-R:M8340 — Line Drawing PDF Download
