SNMX 170508SR-M:M9325
SNMX 170508SR-M:M9325

SNMX 170508SR-M:M9325

UGC DOR8348779
par Dormer Pramet
Primary Use: Possible Use:
Availability in Distribution Centers:
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)
For more information about this product, click here
$34.29 CAD - $34.29 CAD
$34.29 CAD
$34.29 CAD - $34.29 CAD
$34.29 CAD

Vendu en lots de : 10

Plaquette de fraisage double face SNMX 1705, carrée pour une profondeur de coupe maximale de 7 mm, avec rayon de bec de 0,8 mm, une précision de positionnement selon la classe de tolérance ISO-M et géométrie M avec arêtes de coupe arrondies et facette, en carbure WC-Co revêtu MT-CVD M9325 dans la gamme de nuances ISO P10-P30 pour l'usinage de l'acier avec les fraises à surfacer SON06C

For more information about this product, click here

Identification
Ordering Code (ANSI/ISO)SNMX 170508SR-M:M9325
GradeM9325
Chipbreaker (CBMD)M
Product Number8348779
Product FamilySNMX 17

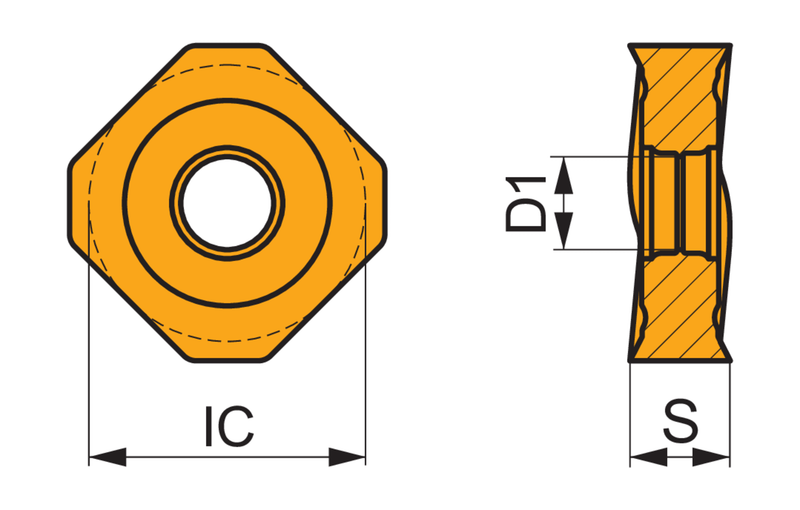

Insert Geometry
Insert DesignSNMX 17
Insert Shape Code (SC)C - carré
Inscribed Circle Dia. — in (IC)0.669"
Inscribed Circle Dia. — mm (IC)17.0 mm
Insert Thickness — in (S)0.219"
Insert Thickness — mm (S)5.56 mm
Corner Radius — in (RE)0.031"
Corner Radius — mm (RE)0.8 mm
Tool Information
Reference Numbers
EDP Number8348779
EAN3603604108607
Material Group Suitability
P — Steel and Cast Steel Usage principal
H — Hardened Materials Utilisation possible
File Type Download
SNMX 170508SR-M:M9325 — Line Drawing PDF Download
