SNMX 170508SR-R:8215
SNMX 170508SR-R:8215

SNMX 170508SR-R:8215

UGC DOR8348792
par Dormer Pramet
Primary Use:
Availability in Distribution Centers:
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)
For more information about this product, click here
$33.73 CAD - $33.73 CAD
$33.73 CAD
$33.73 CAD - $33.73 CAD
$33.73 CAD

Vendu en lots de : 10

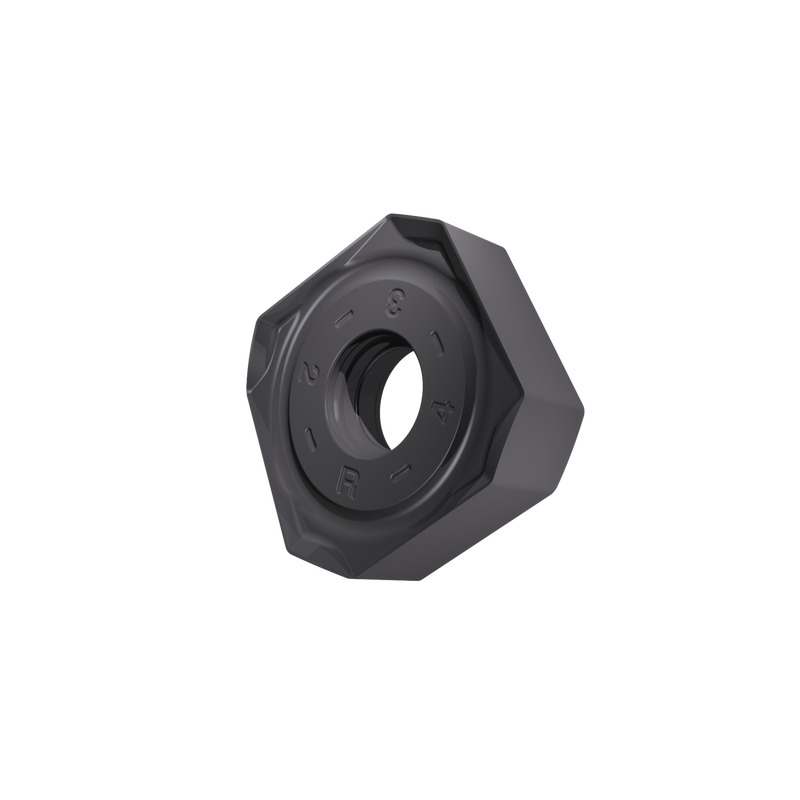

Plaquette de fraisage double face SNMX 1705, carrée pour une profondeur de coupe maximale de 7 mm, avec rayon de bec de 0,8 mm, une précision de positionnement selon la classe de tolérance ISO-M et géométrie R avec arêtes de coupe arrondies et facette, carbure WC-Co à grain fin revêtu PVD 8215 dans les plages de nuances ISO P10-P20/K10-K25 et H10-H15 pour l'usinage de l'acier, de la fonte et des matériaux trempés avec les fraises à surfacer SON06C

For more information about this product, click here

Identification
Ordering Code (ANSI/ISO)SNMX 170508SR-R:8215
Grade8215
Chipbreaker (CBMD)R
Product Number8348792
Product FamilySNMX 17

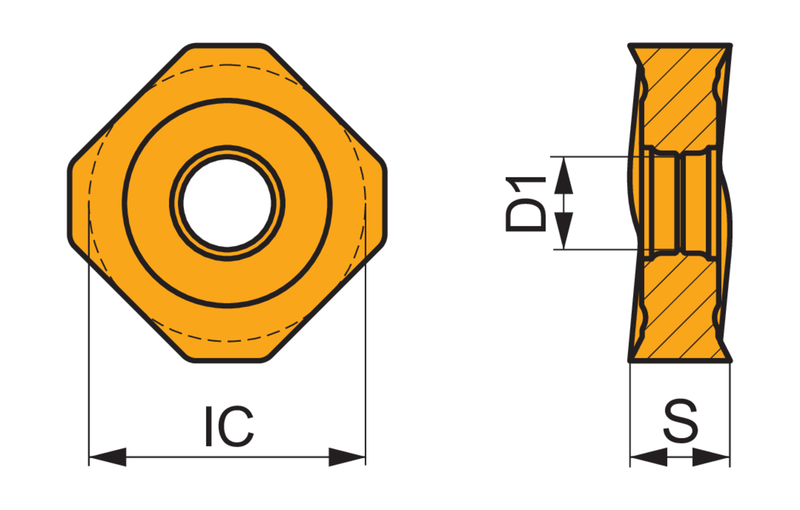

Insert Geometry
Insert DesignSNMX 17
Insert Shape Code (SC)C - carré
Inscribed Circle Dia. — in (IC)0.669"
Inscribed Circle Dia. — mm (IC)17.0 mm
Insert Thickness — in (S)0.219"
Insert Thickness — mm (S)5.56 mm
Corner Radius — in (RE)0.031"
Corner Radius — mm (RE)0.8 mm
Tool Information
Reference Numbers
EDP Number8348792
EAN3603604108621
Material Group Suitability
P — Steel and Cast Steel Usage principal
K — Cast Iron Usage principal
H — Hardened Materials Usage principal
File Type Download
SNMX 170508SR-R:8215 — Line Drawing PDF Download
