SNMX 170508SR-R:M8330
SNMX 170508SR-R:M8330

SNMX 170508SR-R:M8330

UGC DOR8348793
par Dormer Pramet
Primary Use: Possible Use:
Availability in Distribution Centers:
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)
For more information about this product, click here
$34.29 CAD - $34.29 CAD
$34.29 CAD
$34.29 CAD - $34.29 CAD
$34.29 CAD

Vendu en lots de : 10

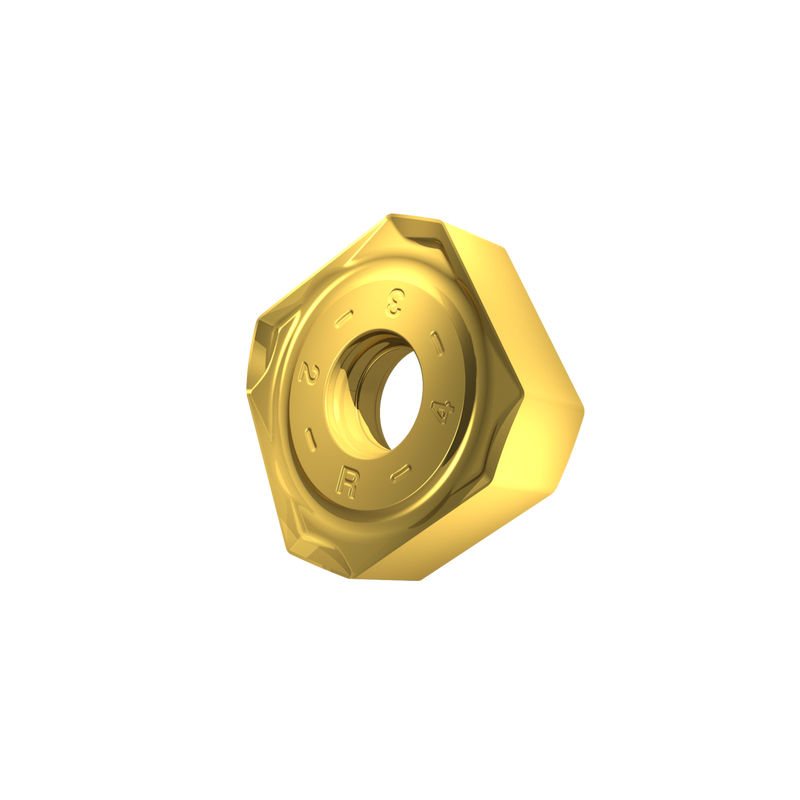

Plaquette de fraisage double-face SNMX 1705, carrée pour une profondeur de coupe maximale de 7mm, avec rayon de coin de 0.8mm, une précision de positionnement selon la classe de tolérance ISO-M et géométrie R avec arêtes de coupe arrondies et facette, carbure WC-Co à grain fin revêtu PVD M8330 dans les plages de nuances ISO P20 -P40 et K20 -K40 pour l'usinage de l'acier et de la fonte avec les fraises à surfacer SON06C

For more information about this product, click here

Identification
Ordering Code (ANSI/ISO)SNMX 170508SR-R:M8330
GradeM8330
Chipbreaker (CBMD)R
Product Number8348793
Product FamilySNMX 17

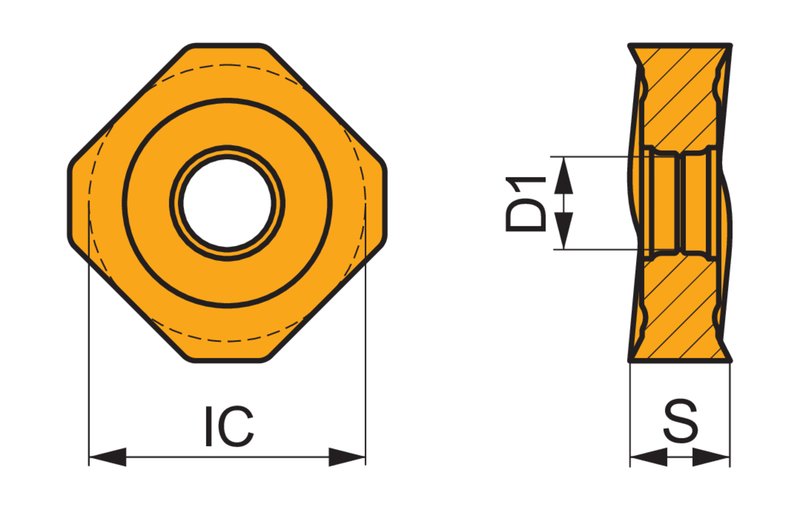

Insert Geometry
Insert DesignSNMX 17
Insert Shape Code (SC)C - carré
Inscribed Circle Dia. — in (IC)0.669"
Inscribed Circle Dia. — mm (IC)17.0 mm
Insert Thickness — in (S)0.219"
Insert Thickness — mm (S)5.56 mm
Corner Radius — in (RE)0.031"
Corner Radius — mm (RE)0.8 mm
Tool Information
Reference Numbers
EDP Number8348793
EAN3603604108638
Material Group Suitability
P — Steel and Cast Steel Usage principal
K — Cast Iron Usage principal
H — Hardened Materials Utilisation possible
File Type Download
SNMX 170508SR-R:M8330 — Line Drawing PDF Download
