SNMX 170508SR-R:M5315
SNMX 170508SR-R:M5315

SNMX 170508SR-R:M5315

UGC DOR8348797
par Dormer Pramet
Primary Use: Possible Use:
Availability in Distribution Centers:
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)
For more information about this product, click here
$34.29 CAD - $34.29 CAD
$34.29 CAD
$34.29 CAD - $34.29 CAD
$34.29 CAD

Vendu en lots de : 10

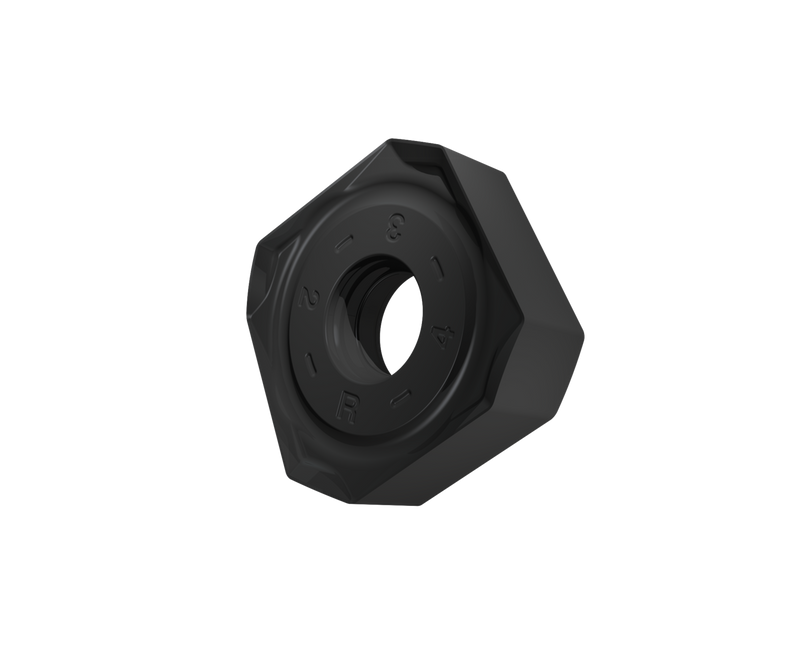

Plaquette de fraisage double face SNMX 1705, carrée pour une profondeur de coupe maximale de 7 mm, avec un rayon de coin de 0,8 mm, une précision de positionnement selon la classe de tolérance ISO-M et une géométrie R avec des arêtes de coupe arrondies et un chanfrein, en carbure WC-Co revêtu MT-CVD M5315 dans les plages de nuances ISO K05-K25 et H05-H20 pour l'usinage de la fonte et des matériaux trempés avec des fraises à surfacer SON06C

For more information about this product, click here

Identification
Ordering Code (ANSI/ISO)SNMX 170508SR-R:M5315
GradeM5315
Chipbreaker (CBMD)R
Product Number8348797
Product FamilySNMX 17

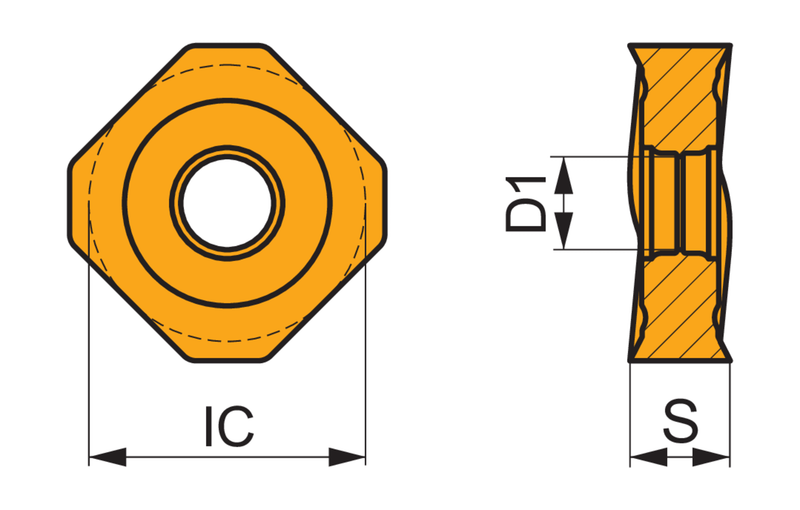

Insert Geometry
Insert DesignSNMX 17
Insert Shape Code (SC)C - carré
Inscribed Circle Dia. — in (IC)0.669"
Inscribed Circle Dia. — mm (IC)17.0 mm
Insert Thickness — in (S)0.219"
Insert Thickness — mm (S)5.56 mm
Corner Radius — in (RE)0.031"
Corner Radius — mm (RE)0.8 mm
Tool Information
Reference Numbers
EDP Number8348797
EAN3603604108669
Material Group Suitability
P — Steel and Cast Steel Utilisation possible
K — Cast Iron Usage principal
H — Hardened Materials Usage principal
