A32111.0

A32111.0

UGC DOR8349677
par Dormer Pramet
Primary Use: Possible Use:
Availability in Distribution Centers:
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)
For more information about this product, click here
$13.40 CAD - $13.40 CAD
$13.40 CAD
$13.40 CAD - $13.40 CAD
$13.40 CAD

Vendu en lots de : 5

Foret robuste à trois pans pour les trous de profondeur moyenne. Diamètre de 11 mm avec une longueur totale de 117 mm. Principalement adapté aux opérations manuelles et aux perceuses à colonne. Les trois pans sur la tige permettent un serrage antidérapant. La pointe auto-centrante à 135° réduit la force de poussée et la finition de surface trempée à la vapeur et au bronze améliore le pouvoir lubrifiant. Convient pour le perçage principalement dans une large gamme de matériaux à paroi mince.

For more information about this product, click here

Identification
Ordering Code (ANSI/ISO)A32111.0
GradeST/Bronze
Product Number8349677
Product FamilyA321

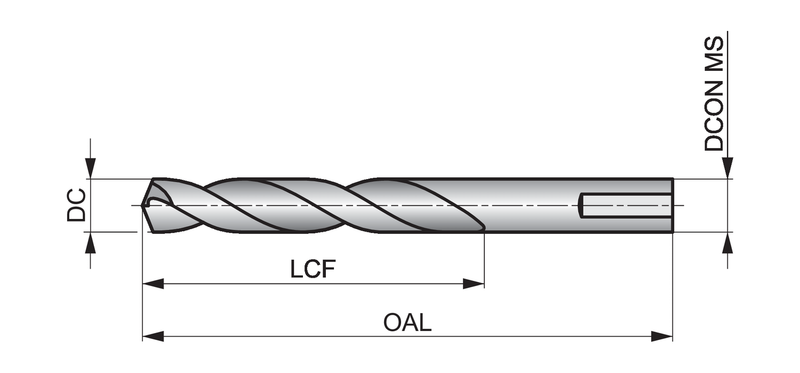

Dimensions
Cutting Diameter — in (DC)0.433"
Cutting Diameter — mm (DC)11.0 mm
Overall Length — in (OAL)4.6063"
Overall Length — mm (OAL)117.0 mm
Flute Length — in (LCF)3.0315"
Flute Length — mm (LCF)77.0 mm
Length × Diameter Ratio3.5
Connection Dia. — in (DCON)0.4331"
Connection Dia. — mm (DCON)11.0 mm
Drill Point Angle (SIG)135°
Tool Information
ShankQueue cylindrique à 3 méplats
Direction of ToolD'accord
StandardNorme de travail
Reference Numbers
EDP Number8349677
EAN3603607072233
File Type Download
A32111.0 — Line Drawing PDF Download
