A32111,5

A32111,5

UGC DOR8349678
par Dormer Pramet
Primary Use: Possible Use:
Availability in Distribution Centers:
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)
For more information about this product, click here
$14.99 CAD - $14.99 CAD
$14.99 CAD
$14.99 CAD - $14.99 CAD
$14.99 CAD

Vendu en lots de : 5

Foret robuste à trois pans pour des trous de profondeur moyenne. Diamètre de 11,5 mm avec une longueur totale de 120 mm. Convient principalement aux opérations manuelles et aux perceuses à colonne. Les trois pans sur la tige permettent un mandrinage antidérapant. La pointe auto-centrante à 135° réduit la force de poussée et la surface trempée à la vapeur et au bronze améliore la lubrification. Convient principalement au perçage dans une large gamme de matériaux à paroi mince.

For more information about this product, click here

Identification
Ordering Code (ANSI/ISO)A32111.5
GradeST/Bronze
Product Number8349678
Product FamilyA321
Dimensions
Cutting Diameter — in (DC)0.453"
Cutting Diameter — mm (DC)11.5 mm
Overall Length — in (OAL)4.7244"
Overall Length — mm (OAL)120.0 mm
Flute Length — in (LCF)3.1102"
Flute Length — mm (LCF)79.0 mm
Length × Diameter Ratio3.5
Connection Dia. — in (DCON)0.4528"
Connection Dia. — mm (DCON)11.5 mm
Drill Point Angle (SIG)135°
Tool Information
ShankQueue cylindrique avec 3-Méplats
Direction of ToolD'accord
StandardNorme de travail
Reference Numbers
EDP Number8349678
EAN3603607072240
File Type Download

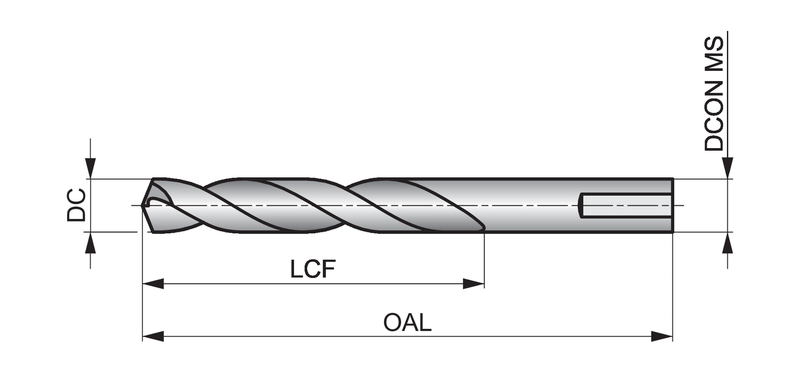

A32111,5 — Line Drawing PDF Download
