CNMX 191140SN-RF:T9415
CNMX 191140SN-RF:T9415

CNMX 191140SN-RF:T9415

UGC DOR8366636
par Dormer Pramet
Primary Use: Possible Use:
Availability in Distribution Centers:
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)
For more information about this product, click here
$45.79 CAD - $45.79 CAD
$45.79 CAD
$45.79 CAD - $45.79 CAD
$45.79 CAD

Vendu en lots de : 10

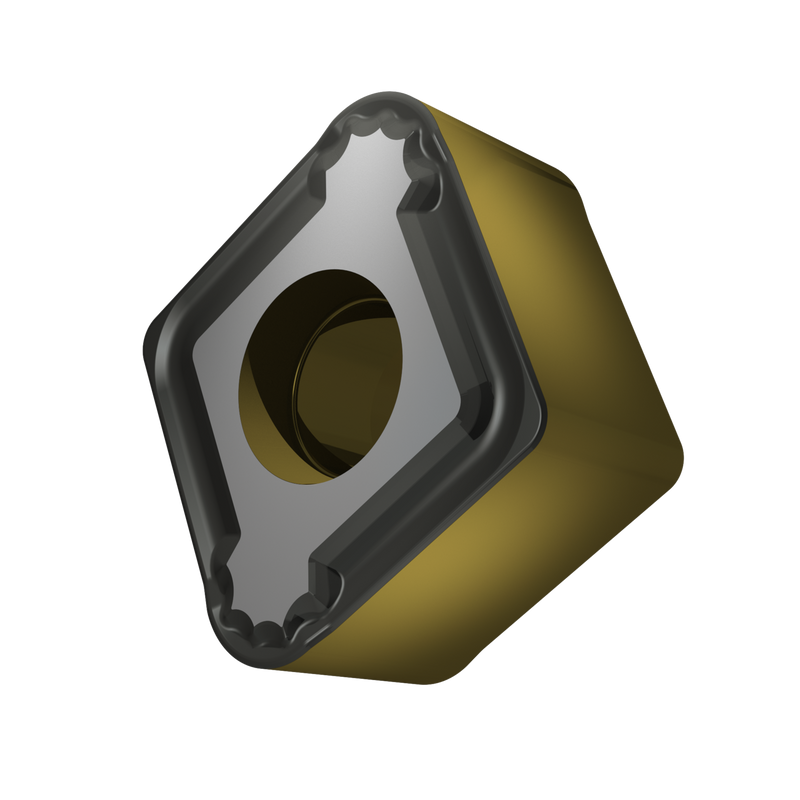

Plaquette négative de conception spéciale, rhomboïdale à 80° avec un diamètre de cercle inscrit de 19,05 mm, 11 mm d'épaisseur, rayon de bec de 4 mm, précision d'indexage selon la classe de tolérance ISO-M, brise-copeaux RF avec arêtes de coupe arrondies à facette, en nuance T9415, un carbure WC-Co à gradient fonctionnel revêtu MT-CVD dans la plage ISO P05-P30, pour l'usinage lourd à moyen des aciers

For more information about this product, click here

Identification
Ordering Code (ANSI/ISO)CNMX 191140SN-RF:T9415
GradeT9415
Chipbreaker (CBMD)RF
Product Number8366636
Product FamilyCNMX 19

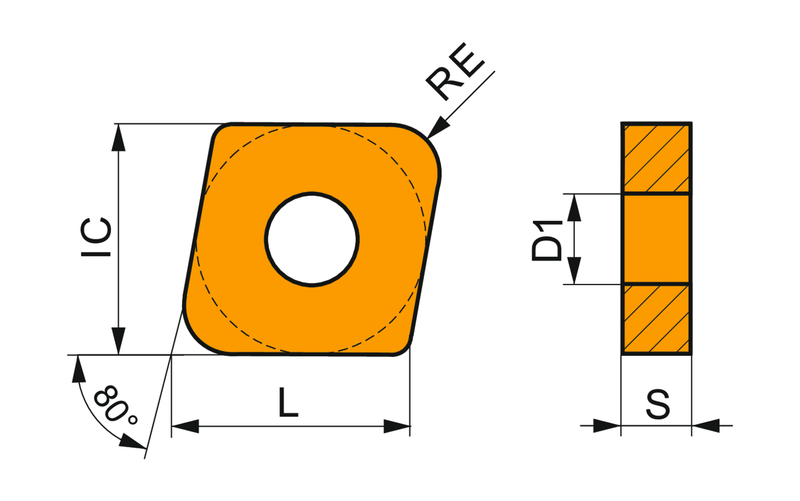

Insert Geometry
Insert DesignCNMX 19
Insert Shape Code (SC)C - angle inclus rhomboïdal 80°
Inscribed Circle Dia. — in (IC)0.75"
Inscribed Circle Dia. — mm (IC)19.05 mm
Insert Thickness — in (S)0.433"
Insert Thickness — mm (S)11.0 mm
Corner Radius — in (RE)0.157"
Corner Radius — mm (RE)4 mm
Tool Information
Reference Numbers
EDP Number8366636
EAN3603604127011
File Type Download
CNMX 191140SN-RF:T9415 — Line Drawing PDF Download
