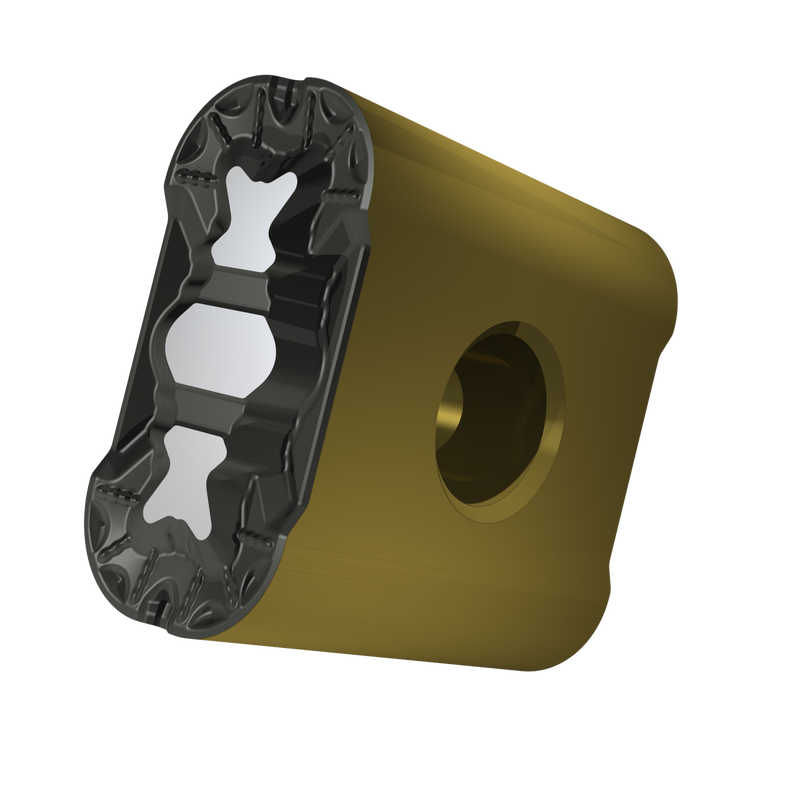

LNMX 191940SN-RF:T9415
LNMX 191940SN-RF:T9415

LNMX 191940SN-RF:T9415

UGC DOR8366637
par Dormer Pramet
Primary Use: Possible Use:
Availability in Distribution Centers:
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)
For more information about this product, click here
$52.43 CAD - $52.43 CAD
$52.43 CAD
$52.43 CAD - $52.43 CAD
$52.43 CAD

Vendu en lots de : 10

Plaquette de délignage spéciale à angle négatif, rectangulaire de 19 mm de long, de 19,05 mm d'épaisseur pour une profondeur de coupe de 4 mm, précision de positionnement selon la classe de tolérance ISO M, brise-copeaux RF, en nuance T9415, un carbure WC-Co à gradient fonctionnel avec revêtement MT-CVD, dans la plage ISO P05-P30, pour les aciers

For more information about this product, click here

Identification
Ordering Code (ANSI/ISO)LNMX 191940SN-RF:T9415
GradeT9415
Chipbreaker (CBMD)RF
Product Number8366637
Product FamilyLN.X 19, LN.X 30
Insert Geometry
Insert DesignLN.X 19, LN.X 30
Insert Shape Code (SC)L - rectangulaire
Insert Thickness — in (S)0.75"
Insert Thickness — mm (S)19.05 mm
Corner Radius — in (RE)0.157"
Corner Radius — mm (RE)4 mm
Tool Information
Reference Numbers
EDP Number8366637
EAN3603604127028
File Type Download
LNMX 191940SN-RF:T9415 — Line Drawing PDF Download
