SNMX 191140SN-TF:T9415
SNMX 191140SN-TF:T9415

SNMX 191140SN-TF:T9415

UGC DOR8366642
par Dormer Pramet
Primary Use: Possible Use:
Availability in Distribution Centers:
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)
For more information about this product, click here
$45.79 CAD - $45.79 CAD
$45.79 CAD
$45.79 CAD - $45.79 CAD
$45.79 CAD

Vendu en lots de : 10

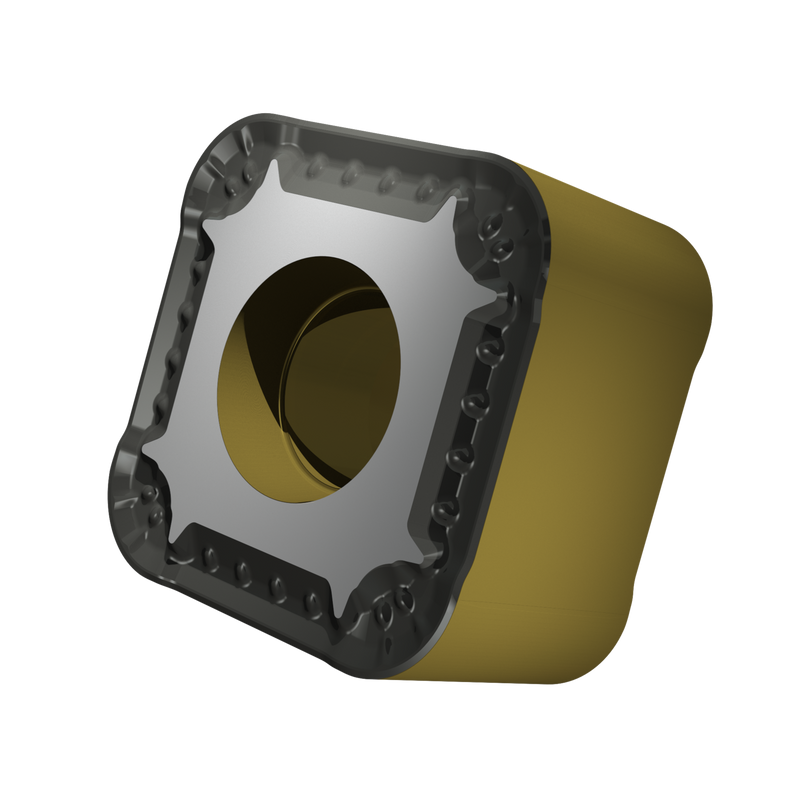

Plaquette négative spéciale pour tournage lourd, carrée avec un diamètre de cercle inscrit de 19,05mm, épaisseur de 11mm, rayon de bec de 4mm, précision d'indexage selon la classe de tolérance ISO-M, brise-copeaux TF avec arêtes de coupe arrondies avec facette, en nuance T9415, un carbure WC-Co à gradient fonctionnel revêtu MT-CVD dans la plage ISO P05 -P30, pour l'usinage lourd à moyen des aciers

For more information about this product, click here

Identification
Ordering Code (ANSI/ISO)SNMX 191140SN-TF:T9415
GradeT9415
Chipbreaker (CBMD)TF
Product Number8366642
Product FamilySNMX 19

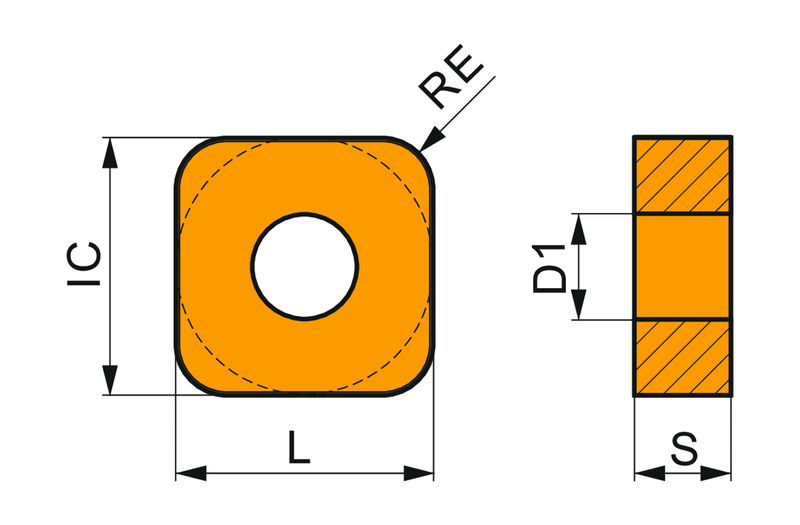

Insert Geometry
Insert DesignSNMX 19
Insert Shape Code (SC)C - carré
Inscribed Circle Dia. — in (IC)0.75"
Inscribed Circle Dia. — mm (IC)19.05 mm
Insert Thickness — in (S)0.433"
Insert Thickness — mm (S)11.0 mm
Corner Radius — in (RE)0.157"
Corner Radius — mm (RE)4 mm
Tool Information
Reference Numbers
EDP Number8366642
EAN3603604127073
File Type Download
SNMX 191140SN-TF:T9415 — Line Drawing PDF Download
