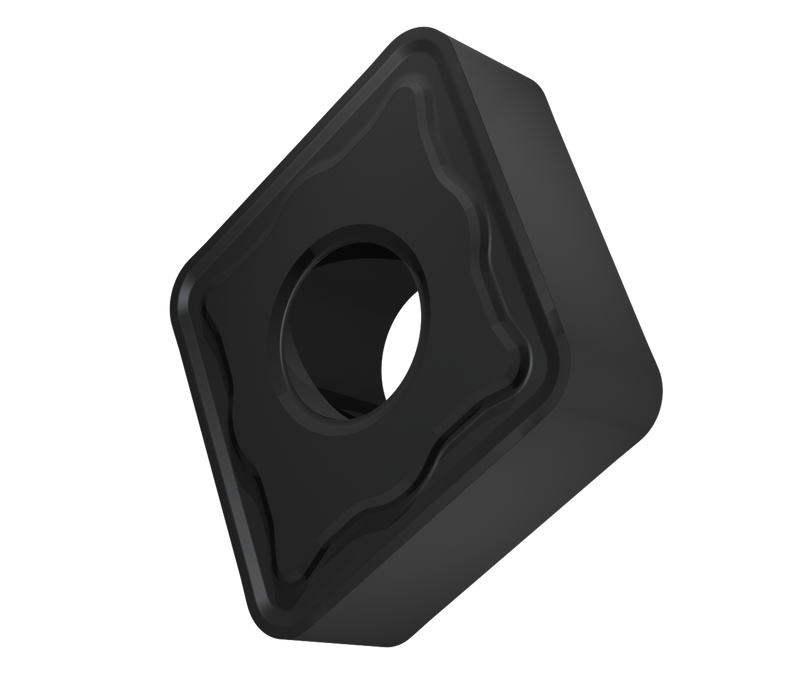

CNMG 434-KR:T5315
CNMG 434-KR:T5315

CNMG 434-KR:T5315

UGC DOR8377237
par Dormer Pramet
Primary Use: Possible Use:
Availability in Distribution Centers:
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)
For more information about this product, click here
$14.00 CAD - $14.00 CAD
$14.00 CAD
$14.00 CAD - $14.00 CAD
$14.00 CAD

Vendu en lots de : 10

Plaquette négative double face, rhomboïde 80° avec diamètre de cercle inscrit de 1/2", épaisseur de 3/16", rayon de bec de 1/16" et précision de positionnement selon la classe de tolérance ISO- M, brise-copeaux KR, en nuance T5315, un carbure WC-Co revêtu MT-CVD de gamme ISO K10 - K25, pour l'usinage moyen à lourd des fontes

For more information about this product, click here

Identification
Ordering Code (ANSI)CNMG 434-KR:T5315
Product Name (ISO)CNMG 120416E-KR:T5315
GradeT5315
Chipbreaker (CBMD)Corée du Sud
Product Number8377237
Product FamilyCNMG
Insert Geometry
Insert DesignCNMG
Insert Shape Code (SC)C - angle inclus rhombique de 80°
Insert Geometry
Inscribed Circle Dia. — in (IC)0.5"
Inscribed Circle Dia. — mm (IC)12.7 mm
Insert Thickness — in (S)0.187"
Insert Thickness — mm (S)4.76 mm
Corner Radius — in (RE)0.063"
Corner Radius — mm (RE)1.6 mm
Tool Information
Reference Numbers
EDP Number8377237
EAN3603604133159
Material Group Suitability
P — Steel and Cast Steel Utilisation possible
K — Cast Iron Usage principal
H — Hardened Materials Usage possible
File Type Download
CNMG 434-KR:T5315 — Line Drawing PDF Download
