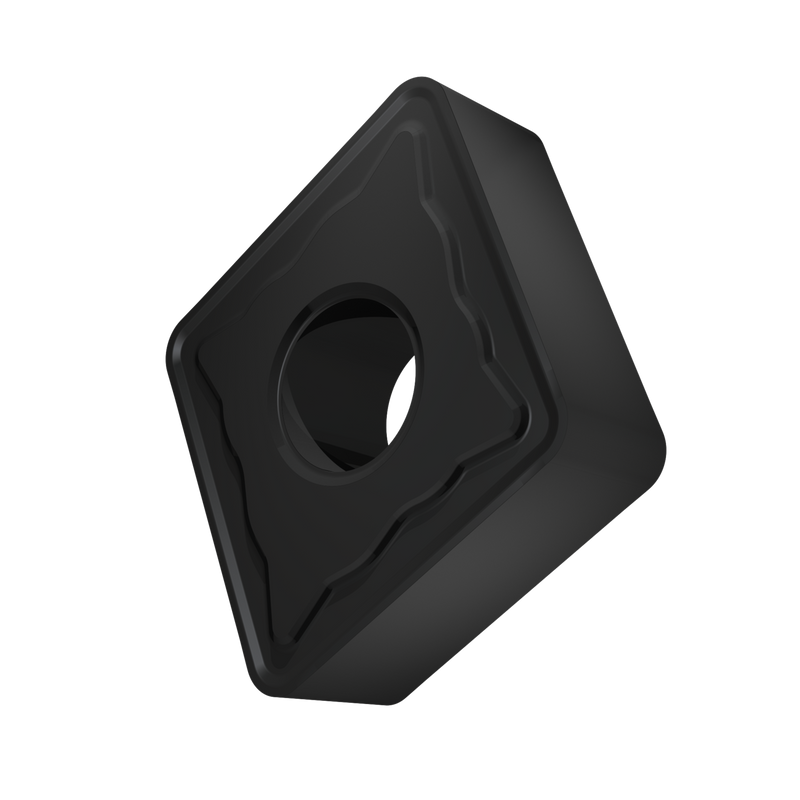

CNMG 544-KR:T5315
CNMG 544-KR:T5315

CNMG 544-KR:T5315

UGC DOR8377239
par Dormer Pramet
Primary Use: Possible Use:
Availability in Distribution Centers:
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)
For more information about this product, click here
$22.29 CAD - $22.29 CAD
$22.29 CAD
$22.29 CAD - $22.29 CAD
$22.29 CAD

Vendu en lots de : 10

Plaquette double face négative, rhomboïde à 80° avec un diamètre de cercle inscrit de 5/8", épaisseur de 1/4", rayon de bec de 1/16" et une précision d'indexage selon la classe de tolérance ISO-M, brise-copeaux KR, en nuance T5315, un carbure WC-Co revêtu MT-CVD dans la gamme ISO K10 - K25, pour l'usinage moyen à lourd des fontes

For more information about this product, click here

Identification
Ordering Code (ANSI)CNMG 544-KR:T5315
Product Name (ISO)CNMG 160616E-KR:T5315
GradeT5315
Chipbreaker (CBMD)Corée du Sud
Product Number8377239
Product FamilyCNMG
Insert Geometry
Insert DesignCNMG
Insert Shape Code (SC)C - angle de 80° inclus, rhomboédrique
Insert Geometry
Inscribed Circle Dia. — in (IC)0.625"
Inscribed Circle Dia. — mm (IC)15.88 mm
Insert Thickness — in (S)0.25"
Insert Thickness — mm (S)6.35 mm
Corner Radius — in (RE)0.063"
Corner Radius — mm (RE)1.6 mm
Tool Information
Reference Numbers
EDP Number8377239
EAN3603604133173
Material Group Suitability
P — Steel and Cast Steel Utilisation possible
K — Cast Iron Usage principal
H — Hardened Materials Utilisation possible
File Type Download
CNMG 544-KR:T5315 — Line Drawing PDF Download
