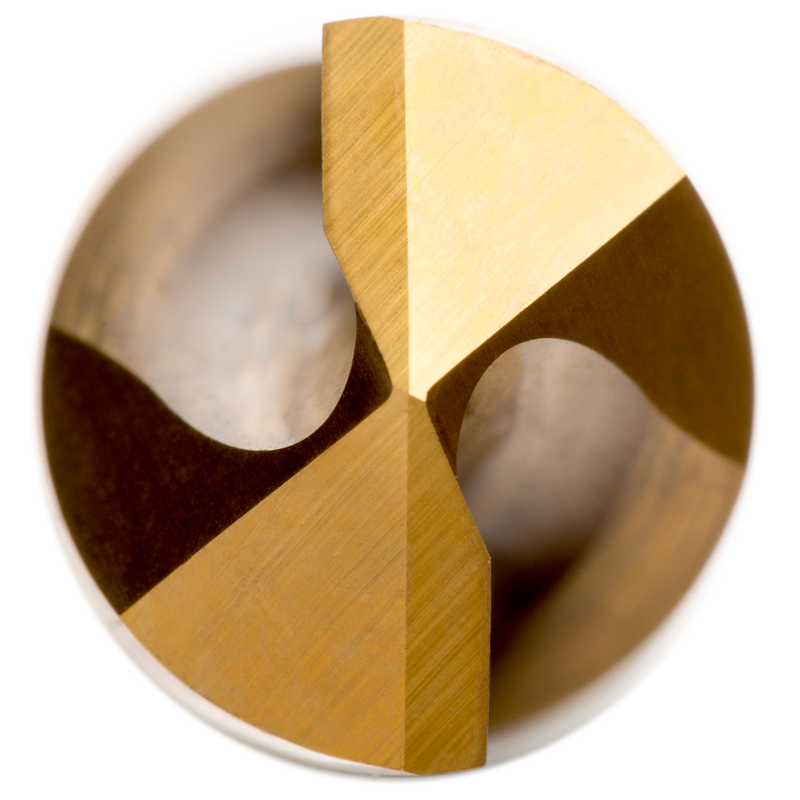

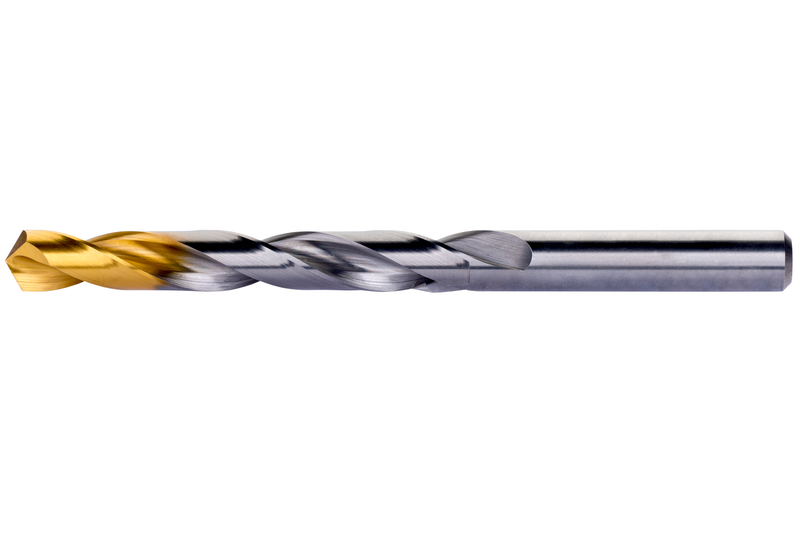

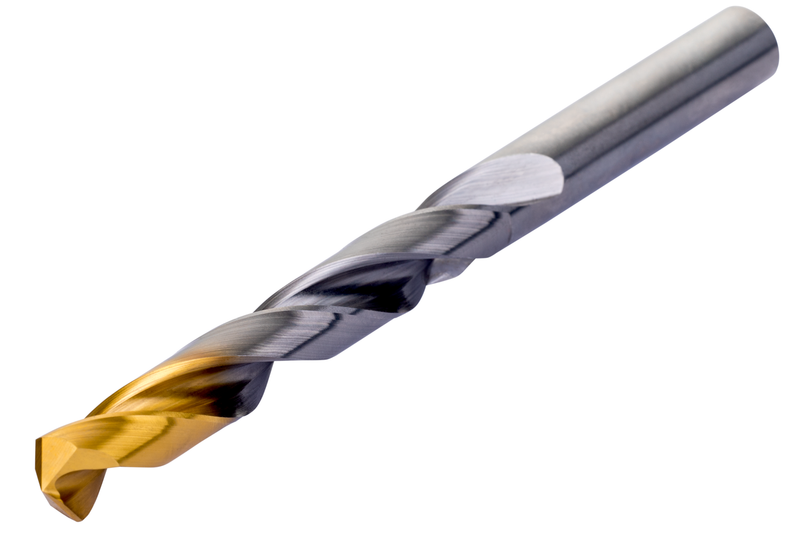

R00321/64
R00321/64
R00321/64
R00321/64

R00321/64

UGC DOR8402707
par Dormer Pramet
Primary Use: Possible Use:
Availability in Distribution Centers:
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)
For more information about this product, click here
$104.50 CAD - $104.50 CAD
$104.50 CAD
$104.50 CAD - $104.50 CAD
$104.50 CAD

Vendu en lots de : 1

Diamètre de coupe 0,3281 pouce, longueur totale 4,6063 pouces, longueur de goujure 2,9528 pouces et profondeur de perçage maximale 1,312 pouce sans débourrage.

For more information about this product, click here

Identification
Ordering Code (ANSI/ISO)R00321/64
GradeLumineux/TiN
Product Number8402707
Product FamilyR003

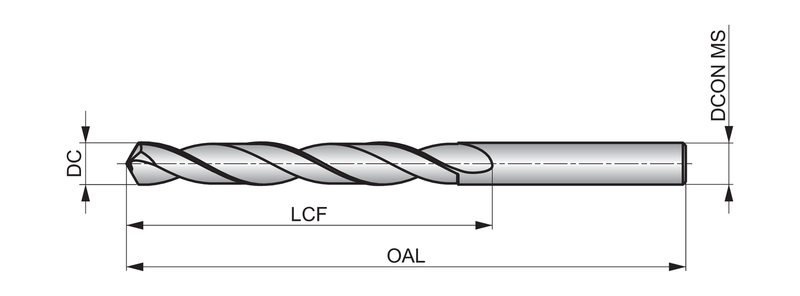

Dimensions
Cutting Diameter — in (DC)0.3281"
Cutting Diameter — mm (DC)8.33 mm
Cutting Diameter — Fractional21/64
Overall Length — in (OAL)4.6063"
Overall Length — mm (OAL)117.0 mm
Flute Length — in (LCF)2.9528"
Flute Length — mm (LCF)75.0 mm
Length × Diameter Ratio4
Connection Dia. — mm (DCON)8.33 mm
Drill Point Angle (SIG)120°
Tool Information
ShankQueue cylindrique
Direction of ToolD'accord
StandardDIN 338
Reference Numbers
EDP Number8402707
EAN3603607082287
File Type Download
R00321/64 — 3D Model STP Download
R00321/64 — 2D Model DXF Download
R00321/64 — Line Drawing PDF Download
