R00327/64
R00327/64
R00327/64
R00327/64

R00327/64

UGC DOR8402713
par Dormer Pramet
Primary Use: Possible Use:
Availability in Distribution Centers:
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)
For more information about this product, click here
$125.71 CAD - $125.71 CAD
$125.71 CAD
$125.71 CAD - $125.71 CAD
$125.71 CAD

Vendu en lots de : 1

Diamètre de coupe 0,4219 pouce, longueur totale 5,5906 pouces, longueur de goujure 3,7008 pouces et profondeur de perçage maximale 1,688 pouce sans débourrage.

For more information about this product, click here

Identification
Ordering Code (ANSI/ISO)R00327/64
GradeBrillant/TiN
Product Number8402713
Product FamilyR003

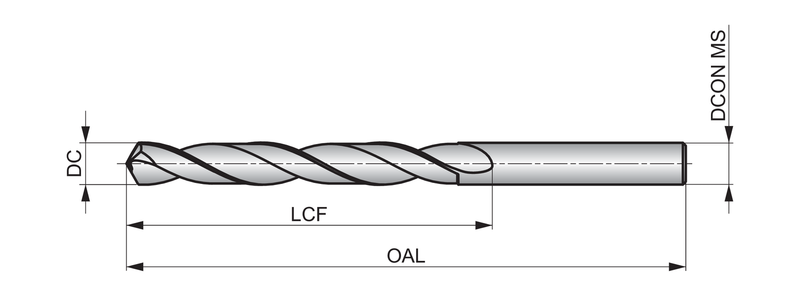

Dimensions
Cutting Diameter — in (DC)0.4219"
Cutting Diameter — mm (DC)10.72 mm
Cutting Diameter — Fractional27/64
Overall Length — in (OAL)5.5906"
Overall Length — mm (OAL)142.0 mm
Flute Length — in (LCF)3.7008"
Flute Length — mm (LCF)94.0 mm
Length × Diameter Ratio4
Connection Dia. — mm (DCON)10.72 mm
Drill Point Angle (SIG)120°
Tool Information
ShankQueue cylindrique
Direction of ToolD'accord
StandardDIN 338
Reference Numbers
EDP Number8402713
EAN3603607082348
File Type Download
R00327/64 — 3D Model STP Download
R00327/64 — 2D Model DXF Download
R00327/64 — Line Drawing PDF Download
