R0031/2
R0031/2
R0031/2
R0031/2

R0031/2

UGC DOR8402718
par Dormer Pramet
Primary Use: Possible Use:
Availability in Distribution Centers:
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)
For more information about this product, click here
$166.57 CAD - $166.57 CAD
$166.57 CAD
$166.57 CAD - $166.57 CAD
$166.57 CAD

Vendu en lots de : 1

Diamètre de coupe 0,5 pouce, longueur totale 5,9449 pouces, longueur des cannelures 3,9764 pouces et profondeur de perçage maximale de 2 pouces sans débourrage.

For more information about this product, click here

Identification
Ordering Code (ANSI/ISO)R0031/2
GradeBrillant/TiN
Product Number8402718
Product FamilyR003

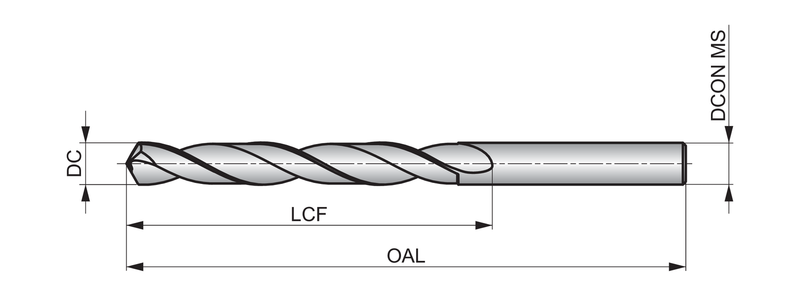

Dimensions
Cutting Diameter — in (DC)0.5"
Cutting Diameter — mm (DC)12.7 mm
Cutting Diameter — Fractional1/2
Overall Length — in (OAL)5.9449"
Overall Length — mm (OAL)151.0 mm
Flute Length — in (LCF)3.9764"
Flute Length — mm (LCF)101.0 mm
Length × Diameter Ratio4
Connection Dia. — mm (DCON)12.7 mm
Drill Point Angle (SIG)120°
Tool Information
ShankQueue cylindrique
Direction of ToolD'accord
StandardDIN 338
Reference Numbers
EDP Number8402718
EAN3603607082393
File Type Download
R0031/2 — 3D Model STP Download
R0031/2 — 2D Model DXF Download
R0031/2 — Line Drawing PDF Download
