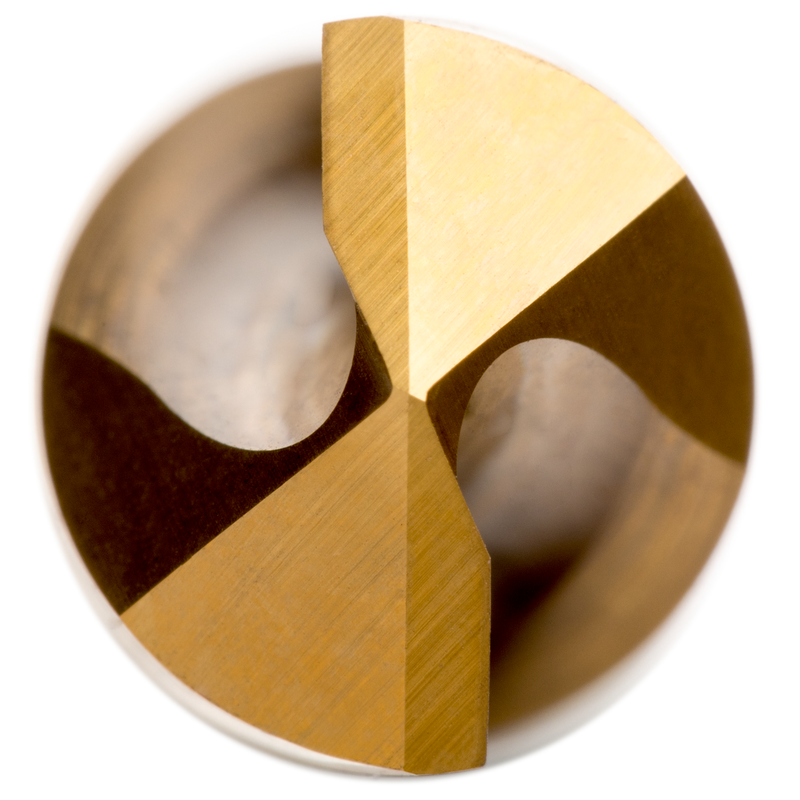

R003U
R003U
R003U
R003U

R003U

UGC DOR8402738
par Dormer Pramet
Primary Use: Possible Use:
Availability in Distribution Centers:
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)
For more information about this product, click here
$90.36 CAD - $90.36 CAD
$90.36 CAD
$90.36 CAD - $90.36 CAD
$90.36 CAD

Vendu en lots de : 1

Diamètre de coupe 0,368 pouce, longueur totale 4,9213 pouces, longueur de la cannelure 3,189 pouces et profondeur de perçage maximale 1,472 pouce sans débourrage.

For more information about this product, click here

Identification
Ordering Code (ANSI/ISO)R003U
GradeBrillant/TiN
Product Number8402738
Product FamilyR003
Dimensions
Cutting Diameter — in (DC)0.368"
Cutting Diameter — mm (DC)9.35 mm
Overall Length — in (OAL)4.9213"
Overall Length — mm (OAL)125.0 mm
Flute Length — in (LCF)3.189"
Flute Length — mm (LCF)81.0 mm
Length × Diameter Ratio4
Connection Dia. — mm (DCON)9.35 mm
Drill Point Angle (SIG)120°
Tool Information
ShankQueue cylindrique
Direction of ToolD'accord
StandardDIN 338
Reference Numbers
EDP Number8402738
EAN3603607082591
File Type Download
R003U — 3D Model STP Download
R003U — 2D Model DXF Download
R003U — Line Drawing PDF Download
