R003N44
R003N44
R003N44
R003N44

R003N44

UGC DOR8402768
par Dormer Pramet
Primary Use: Possible Use:
Availability in Distribution Centers:
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)
For more information about this product, click here
$25.50 CAD - $25.50 CAD
$25.50 CAD
$25.50 CAD - $25.50 CAD
$25.50 CAD

Vendu en lots de : 1

Diamètre de coupe 0,086 pouce, longueur totale 2,0866 pouces, longueur de la cannelure 1,063 pouce et profondeur de perçage maximale 0,344 pouce sans débourrage.

For more information about this product, click here

Identification
Ordering Code (ANSI/ISO)R003N44
GradeBrillant/TiN
Product Number8402768
Product FamilyR003

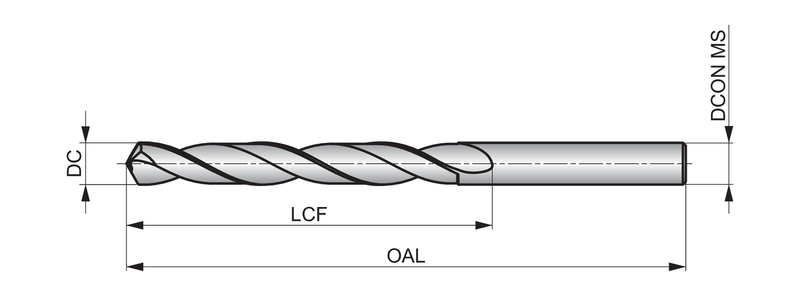

Dimensions
Cutting Diameter — in (DC)0.086"
Cutting Diameter — mm (DC)2.18 mm
Overall Length — in (OAL)2.0866"
Overall Length — mm (OAL)53.0 mm
Flute Length — in (LCF)1.063"
Flute Length — mm (LCF)27.0 mm
Length × Diameter Ratio4
Connection Dia. — mm (DCON)2.18 mm
Drill Point Angle (SIG)120°
Tool Information
ShankQueue cylindrique
Direction of ToolD'accord
StandardDIN 338
Reference Numbers
EDP Number8402768
EAN3603607082898
File Type Download
R003N44 — 3D Model STP Download
R003N44 — 2D Model DXF Download
R003N44 — Line Drawing PDF Download
