R0035.8
R0035.8
R0035.8
R0035.8

R0035.8

UGC DOR8402860
par Dormer Pramet
Primary Use: Possible Use:
Availability in Distribution Centers:
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)
For more information about this product, click here
$68.44 CAD - $68.44 CAD
$68.44 CAD
$68.44 CAD - $68.44 CAD
$68.44 CAD

Vendu en lots de : 1

Diamètre de coupe 5,8 mm, longueur totale 93 mm, longueur de la partie coupante 57 mm et profondeur de perçage maximale 23,2 mm sans débourrage.

For more information about this product, click here

Identification
Ordering Code (ANSI/ISO)R0035.8
GradeBrillant/TiN
Product Number8402860
Product FamilyR003

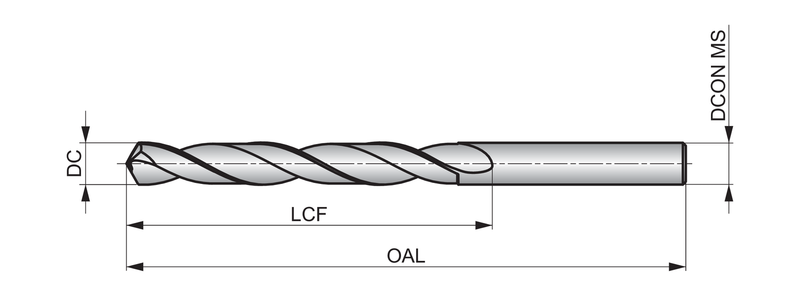

Dimensions
Cutting Diameter — in (DC)0.2283"
Cutting Diameter — mm (DC)5.8 mm
Overall Length — in (OAL)3.6614"
Overall Length — mm (OAL)93.0 mm
Flute Length — in (LCF)2.2441"
Flute Length — mm (LCF)57.0 mm
Length × Diameter Ratio4
Connection Dia. — mm (DCON)5.8 mm
Drill Point Angle (SIG)120°
Tool Information
ShankQueue cylindrique
Direction of ToolD'accord
StandardDIN 338
Reference Numbers
EDP Number8402860
EAN3603607083819
File Type Download
R0035.8 — 3D Model STP Download
R0035.8 — 2D Model DXF Download
R0035.8 — Line Drawing PDF Download
