R0036.0
R0036.0
R0036.0
R0036.0

R0036.0

UGC DOR8402862
par Dormer Pramet
Primary Use: Possible Use:
Availability in Distribution Centers:
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)
For more information about this product, click here
$68.44 CAD - $68.44 CAD
$68.44 CAD
$68.44 CAD - $68.44 CAD
$68.44 CAD

Vendu en lots de : 1

Diamètre de coupe 6 mm, longueur totale 93 mm, longueur utile 57 mm, profondeur de perçage maximale 24 mm sans débourrage.

For more information about this product, click here

Identification
Ordering Code (ANSI/ISO)R0036.0
GradeBrillant/TiN
Product Number8402862
Product FamilyR003

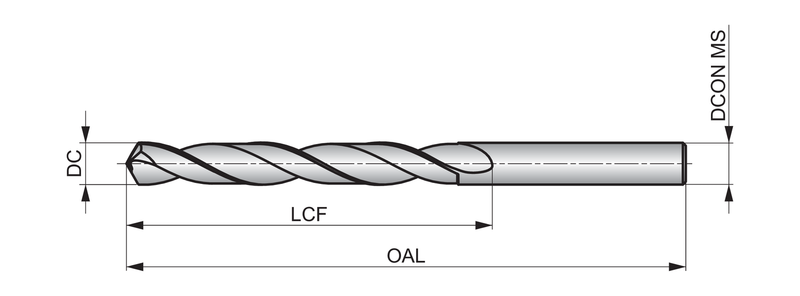

Dimensions
Cutting Diameter — in (DC)0.2362"
Cutting Diameter — mm (DC)6.0 mm
Overall Length — in (OAL)3.6614"
Overall Length — mm (OAL)93.0 mm
Flute Length — in (LCF)2.2441"
Flute Length — mm (LCF)57.0 mm
Length × Diameter Ratio4
Connection Dia. — mm (DCON)6.0 mm
Drill Point Angle (SIG)120°
Tool Information
ShankQueue cylindrique
Direction of ToolD'accord
StandardDIN 338
Reference Numbers
EDP Number8402862
EAN3603607083833
File Type Download
R0036.0 — 3D Model STP Download
R0036.0 — 2D Model DXF Download
R0036.0 — Line Drawing PDF Download
