UGC DOR8402903
par Dormer Pramet
Primary Use: Possible Use:
Availability in Distribution Centers:
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)
For more information about this product, click here
$125.71 CAD - $125.71 CAD
$125.71 CAD
$125.71 CAD - $125.71 CAD
$125.71 CAD

Vendu en lots de : 1

Diamètre de coupe 10,2 mm, longueur totale 133 mm, longueur utile 87 mm et profondeur de perçage maximale 40,8 mm sans débourrage.

For more information about this product, click here

Identification
Ordering Code (ANSI/ISO)R00310.2
GradeLumineux/TiN
Product Number8402903
Product FamilyR003

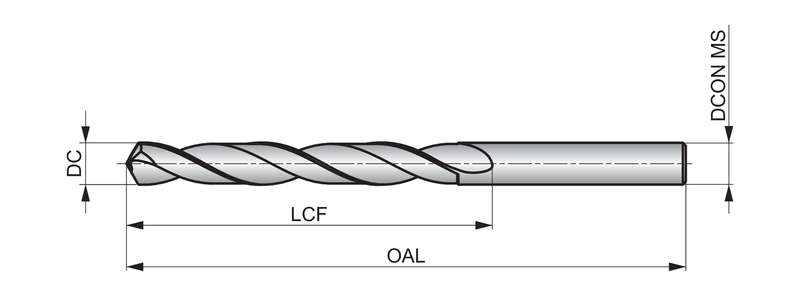

Dimensions
Cutting Diameter — in (DC)0.4016"
Cutting Diameter — mm (DC)10.2 mm
Overall Length — in (OAL)5.2362"
Overall Length — mm (OAL)133.0 mm
Flute Length — in (LCF)3.4252"
Flute Length — mm (LCF)87.0 mm
Length × Diameter Ratio4
Connection Dia. — mm (DCON)10.2 mm
Drill Point Angle (SIG)120°
Tool Information
ShankQueue cylindrique
Direction of ToolD'accord
StandardDIN 338
Reference Numbers
EDP Number8402903
EAN3603607084243
File Type Download
R00310.2 — 3D Model STP Download
R00310.2 — 2D Model DXF Download
R00310.2 — Line Drawing PDF Download
