UGC DOR8402972
par Dormer Pramet
Primary Use: Possible Use:
Availability in Distribution Centers:
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)
For more information about this product, click here
$13.04 CAD - $13.04 CAD
$13.04 CAD
$13.04 CAD - $13.04 CAD
$13.04 CAD

Vendu en lots de : 1

Diamètre de coupe 1,2 mm, longueur totale 30 mm, longueur de la partie coupante 8 mm, et profondeur de perçage maximale 3 mm sans débourrage.

For more information about this product, click here

Identification
Ordering Code (ANSI/ISO)R0231.2
GradeBrillant/TiN
Product Number8402972
Product FamilyR023

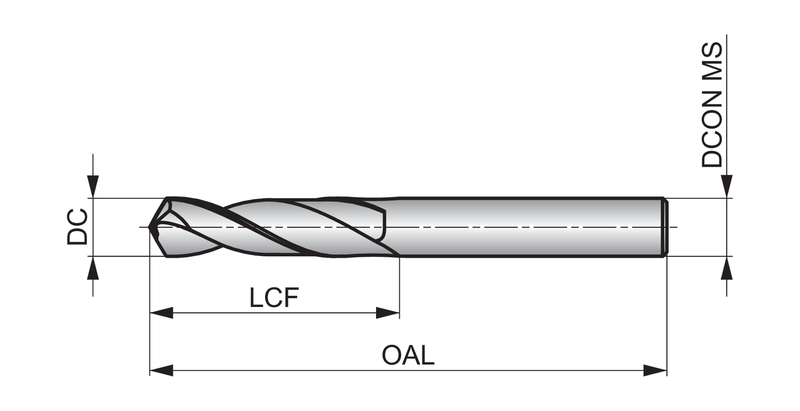

Dimensions
Cutting Diameter — in (DC)0.0472"
Cutting Diameter — mm (DC)1.2 mm
Overall Length — in (OAL)1.1811"
Overall Length — mm (OAL)30.0 mm
Flute Length — in (LCF)0.315"
Flute Length — mm (LCF)8.0 mm
Length × Diameter Ratio2.5
Connection Dia. — mm (DCON)1.2 mm
Drill Point Angle (SIG)120°
Tool Information
ShankQueue cylindrique
Direction of ToolD'accord
StandardDIN 6539
Reference Numbers
EDP Number8402972
EAN3603607084939
File Type Download
R0231.2 — 3D Model STP Download
R0231.2 — 2D Model DXF Download
R0231.2 — Line Drawing PDF Download
