E894UNC1/4
E894UNC1/4
E894UNC1/4

E894UNC1/4

UGC DOR8450731
par Dormer Pramet
Primary Use:
Availability in Distribution Centers:
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)
For more information about this product, click here
$79.26 CAD - $79.26 CAD
$79.26 CAD
$79.26 CAD - $79.26 CAD
$79.26 CAD

Vendu en lots de : 1

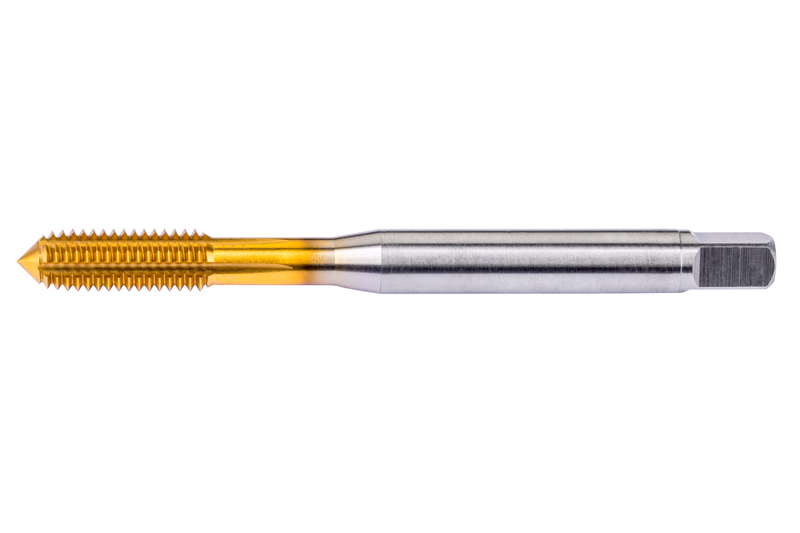

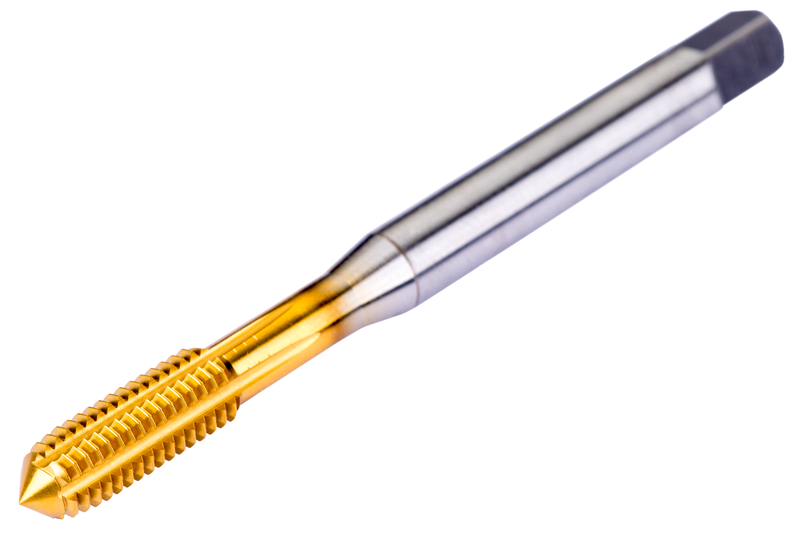

Taraud à refouler avec gorges de lubrification et entrée forme C, semi-progressif (2-3xP), pour filetage Unified National Coarse UNC 1/4" à 20 filets par pouce et tolérance 2BX, dimensions selon la norme DIN/ANSI, avec queue de 0,2550" et carré d'entraînement de 0,1909", en HSS-E cobalté avec revêtement TiN pour le taraudage de trous traversants ou borgnes jusqu'à 3,5xD dans l'acier et l'acier moulé, l'acier inoxydable et l'aluminium corroyé ou moulé.

For more information about this product, click here

Identification
Ordering Code (ANSI/ISO)E894UNC1/4
GradeTiN
Product Number8450731
Product FamilyE894(NU)

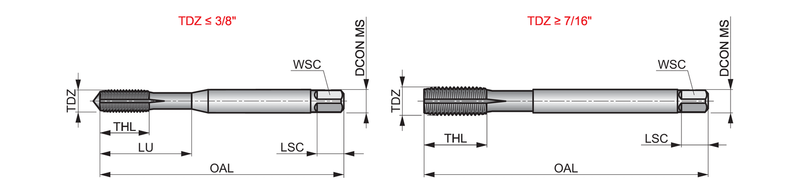

Dimensions
Overall Length — in (OAL)3.15"
Overall Length — mm (OAL)80.01 mm
Length × Diameter Ratio3.5
Usable Length — in (LU)1.181"
Usable Length — mm (LU)30.0 mm
Connection Dia. — in (DCON)0.255"
Connection Dia. — mm (DCON)6.48 mm
Number of Flutes (NOF)5
Threading
Thread Diameter Size (TDZ)1/4
Thread Diameter — in (TD)0.25"
Thread Diameter — mm (TD)6.35 mm
Thread Form (THFT)UNC - Coarse Unifié
Threads per Inch (TPI)20.0
Tool Information
Direction of ToolD'accord
StandardDIN/ANSI
Reference Numbers
EDP Number8450731
EAN3603607092361
File Type Download
E894UNC1/4 — Line Drawing PDF Download
