E894UNF1/2
E894UNF1/2
E894UNF1/2

E894UNF1/2

UGC DOR8450744
par Dormer Pramet
Primary Use:
Availability in Distribution Centers:
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)
For more information about this product, click here
$155.91 CAD - $155.91 CAD
$155.91 CAD
$155.91 CAD - $155.91 CAD
$155.91 CAD

Vendu en lots de : 1

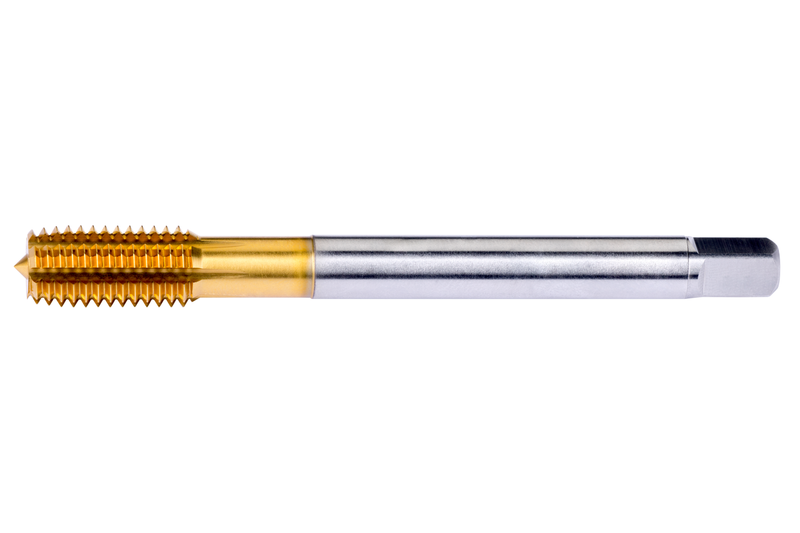

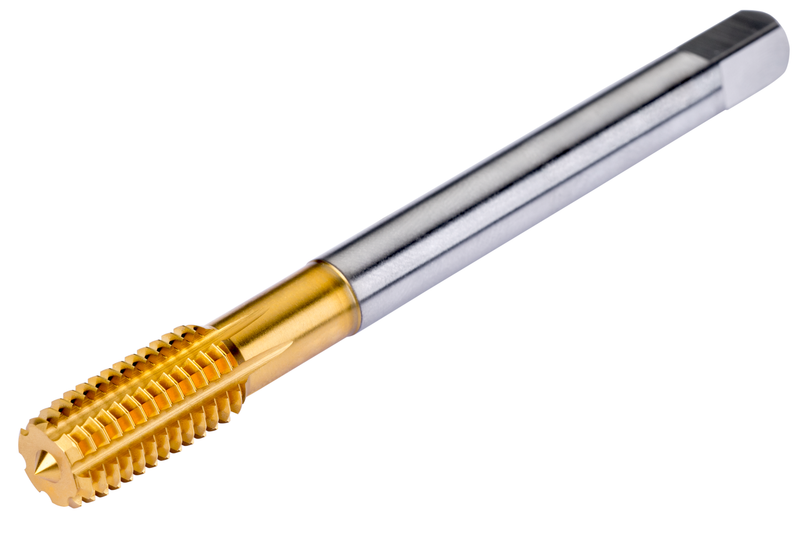

Taraud à refouler avec gorges de lubrification et entrée forme C (2-3 filets), pour filet UNF 1/2" à 20 filets par pouce et tolérance 2BX, dimensions selon la norme DIN/ANSI avec queue de 0,3670" et carré d'entraînement de 0,2748", en HSS-E cobalt avec revêtement TiN pour le taraudage de trous débouchants ou borgnes jusqu'à 3,5xD dans les aciers et aciers moulés, les aciers inoxydables et les aluminiums corroyés ou moulés.

For more information about this product, click here

Identification
Ordering Code (ANSI/ISO)E894UNF1/2
GradeTiN
Product Number8450744
Product FamilyE894(NUF)
Dimensions
Overall Length — in (OAL)3.937"
Overall Length — mm (OAL)100.0 mm
Length × Diameter Ratio3.5
Connection Dia. — in (DCON)0.367"
Connection Dia. — mm (DCON)9.32 mm
Number of Flutes (NOF)6
Threading
Thread Diameter Size (TDZ)1/2
Thread Diameter — in (TD)0.5"
Thread Diameter — mm (TD)12.7 mm
Thread Form (THFT)UNF - Unifié fin
Threads per Inch (TPI)20.0
Tool Information
Direction of ToolD'accord
StandardDIN/ANSI
Reference Numbers
EDP Number8450744
EAN3603607092491
File Type Download
E894UNF1/2 — Line Drawing PDF Download
