E894M4
E894M4
E894M4

E894M4

UGC DOR8450747
par Dormer Pramet
Primary Use:
Availability in Distribution Centers:
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)
For more information about this product, click here
$68.83 CAD - $68.83 CAD
$68.83 CAD
$68.83 CAD - $68.83 CAD
$68.83 CAD

Vendu en lots de : 1

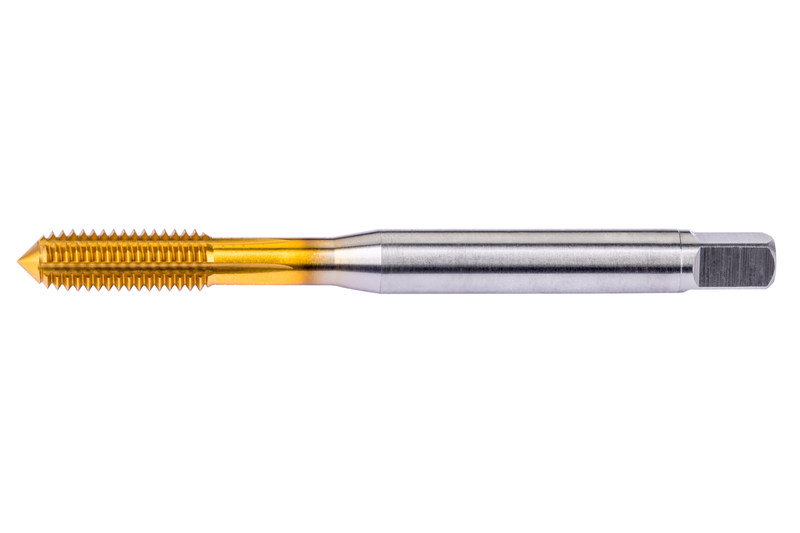

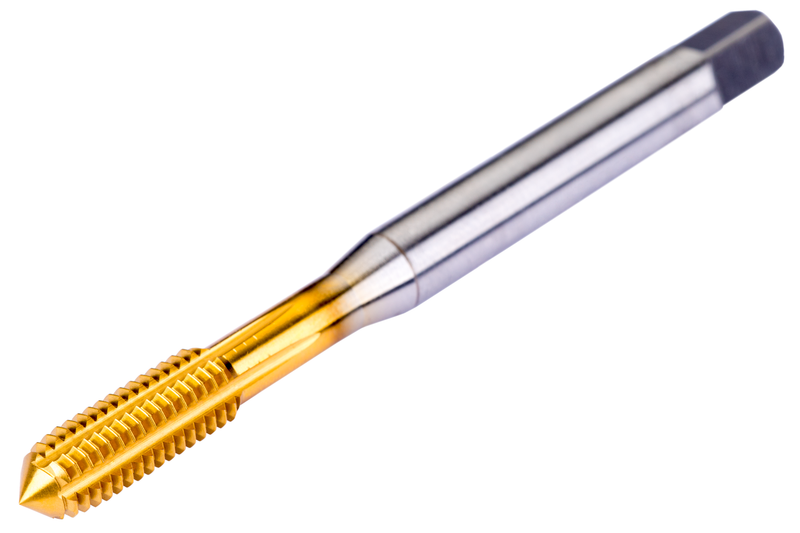

Taraud à refouler avec gorges de lubrification et entrée forme C (2-3 filets), pour filetage ISO-Métrique M4 au pas de 0,70 mm et tolérance 6HX, dimensions conformes à la norme DIN/ANSI avec queue de 0,1680" et carré d'entraînement de 0,1311", en HSS-E cobalt avec revêtement TiN pour le taraudage de trous débouchants ou borgnes jusqu'à 3,5xD dans l'acier et l'acier moulé, l'acier inoxydable et l'aluminium corroyé ou moulé.

For more information about this product, click here

Identification
Ordering Code (ANSI/ISO)E894M4
GradeTiN
Product Number8450747
Product FamilyE894(M)

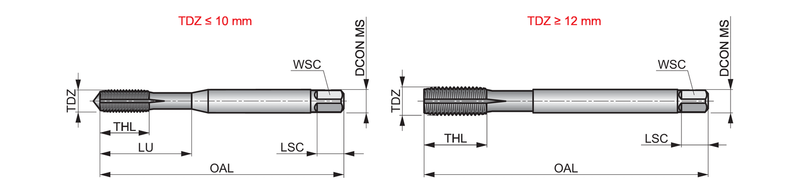

Dimensions
Overall Length — in (OAL)2.48"
Overall Length — mm (OAL)63.0 mm
Length × Diameter Ratio3.5
Usable Length — in (LU)0.827"
Usable Length — mm (LU)21.0 mm
Connection Dia. — in (DCON)0.168"
Connection Dia. — mm (DCON)4.27 mm
Number of Flutes (NOF)5
Threading
Thread Diameter Size (TDZ)4
Thread Form (THFT)M - Pas métrique gros
Thread Pitch — mm (TP)0.7 mm
Tool Information
Direction of ToolD'accord
StandardDIN/ANSI
Reference Numbers
EDP Number8450747
EAN3603607092521
File Type Download
E894M4 — Line Drawing PDF Download
