GL2-A32SGL-10-45
GL2-A32SGL-10-45
GL2-A32SGL-10-45

GL2-A32SGL-10-45

UGC DOR8461781
par Dormer Pramet
Primary Use:
Availability in Distribution Centers:
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)
For more information about this product, click here
$464.00 CAD - $464.00 CAD
$464.00 CAD
$464.00 CAD - $464.00 CAD
$464.00 CAD

Vendu en lots de : 1

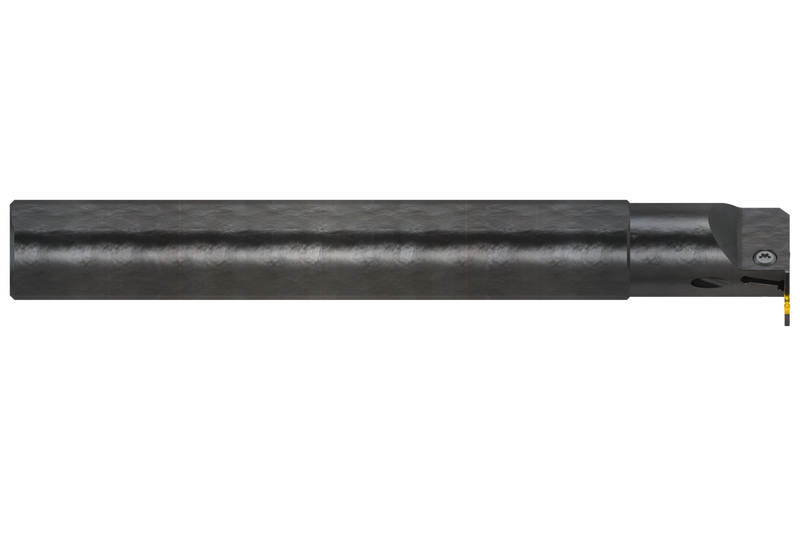

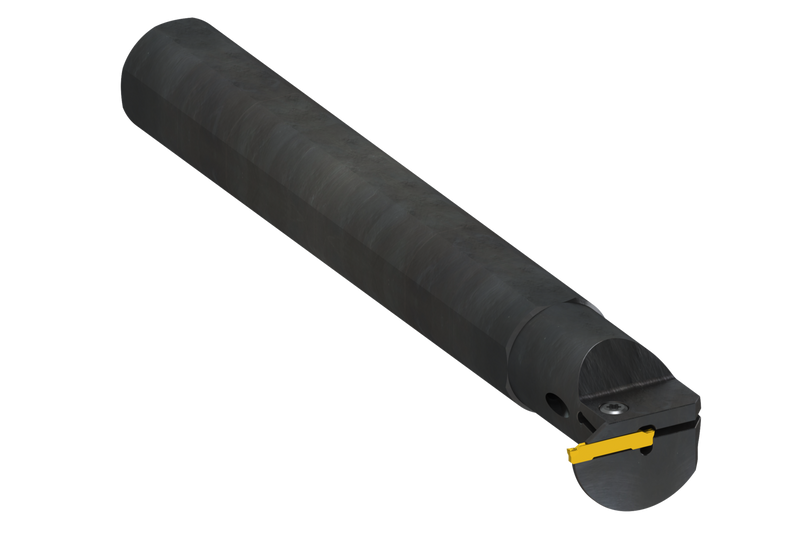

Le GL2-A32SGL-10-45 est un outil interne à gauche avec arrosage interne pour les plaquettes GL, conçu avec un siège et une lame renforcés pour la sécurité. Il convient aux applications de gorge interne, de tournage et de profilage. Le corps est traité pour une durée de vie prolongée de l'outil.

For more information about this product, click here

Identification
Ordering Code (ANSI/ISO)GL2-A32SGL-10-45
Product Number8461781
Product FamilyGLAG (SR) INT
Insert Geometry
Depth of Cut Max — in (APMX)0.394"

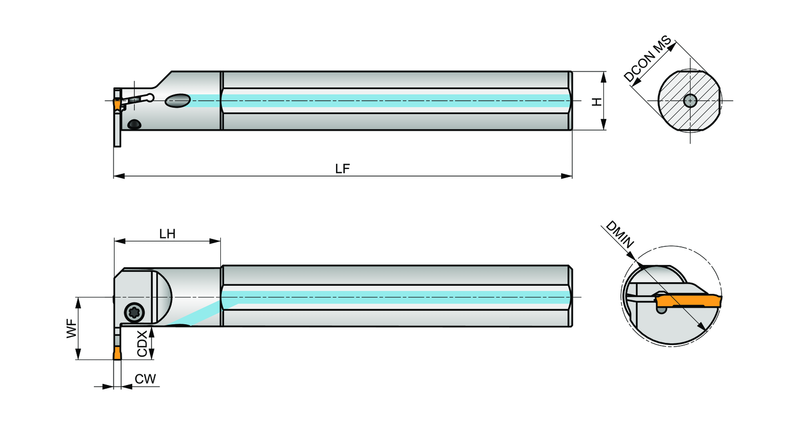

Dimensions
Functional Length — in (LF)9.843"
Functional Length — mm (LF)250.0 mm
Connection Dia. — in (DCON)1.26"
Connection Dia. — mm (DCON)32.0 mm
Shank Height — mm (H)1.181 mm
Min. Bore Dia. — in (DMIN)1.772"
Tool Information
Through Coolant Yes
Reference Numbers
EDP Number8461781
EAN3603604193160
File Type Download
GL2-A32SGL-10-45 — 3D Model STP Download
GL2-A32SGL-10-45 — 2D Model DXF Download
GL2-A32SGL-10-45 — Line Drawing PDF Download
