GL1-S1212HFL-12-40
GL1-S1212HFL-12-40
GL1-S1212HFL-12-40

GL1-S1212HFL-12-40

UGC DOR8462467
par Dormer Pramet
Primary Use:
Availability in Distribution Centers:
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)
For more information about this product, click here
$255.00 CAD - $255.00 CAD
$255.00 CAD
$255.00 CAD - $255.00 CAD
$255.00 CAD

Vendu en lots de : 1

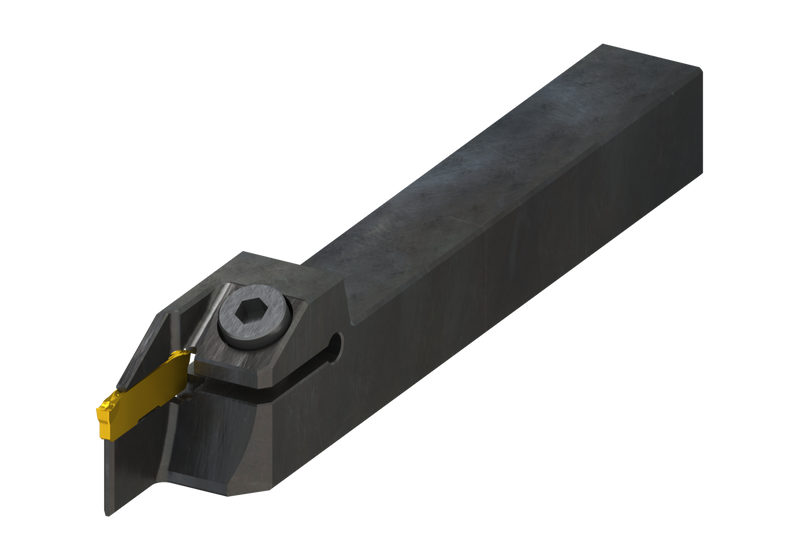

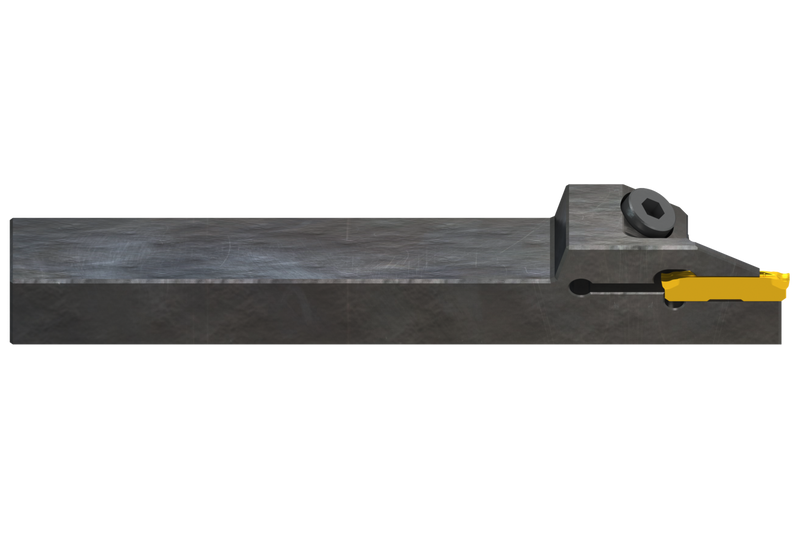

Le GL1-S1212HFL-12-40 est un outil externe pour gaucher destiné aux plaquettes GL, conçu pour les machines à tête coulissante et un accès facile au serrage des plaquettes. Convient aux applications de rainurage radial, de tronçonnage, de tournage et de profilage. Corps traité pour une durée de vie plus longue de l'outil.

For more information about this product, click here

Identification
Ordering Code (ANSI/ISO)GL1-S1212HFL-12-40
Product Number8462467
Product FamilyGLSF(RL) EXT-S
Insert Geometry
Depth of Cut Max — in (APMX)0.472"

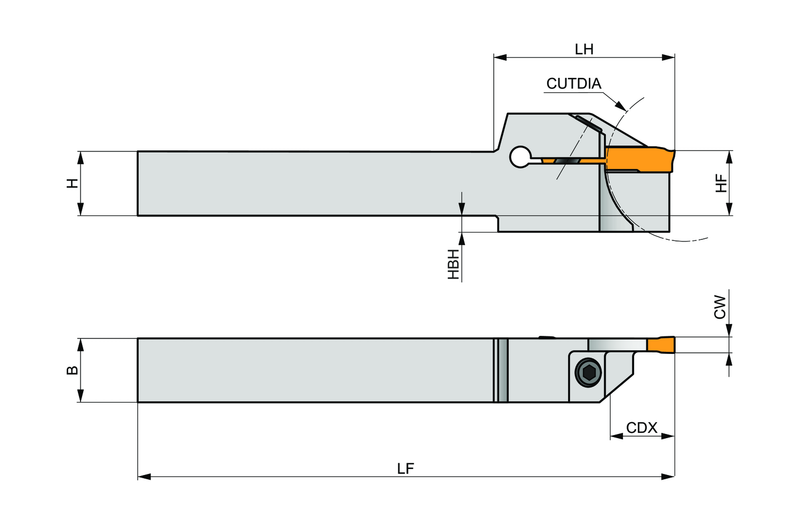

Dimensions
Functional Length — in (LF)3.937"
Functional Length — mm (LF)100.0 mm
Shank Height — mm (H)0.472 mm
Tool Information
Through Coolant No
Reference Numbers
EDP Number8462467
EAN3603604196536
File Type Download
GL1-S1212HFL-12-40 — 3D Model STP Download
GL1-S1212HFL-12-40 — 2D Model DXF Download
GL1-S1212HFL-12-40 — Line Drawing PDF Download
