GL1-S2020KFR-16-60
GL1-S2020KFR-16-60
GL1-S2020KFR-16-60

GL1-S2020KFR-16-60

UGC DOR8462752
par Dormer Pramet
Primary Use:
Availability in Distribution Centers:
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)
For more information about this product, click here
$309.00 CAD - $309.00 CAD
$309.00 CAD
$309.00 CAD - $309.00 CAD
$309.00 CAD

Vendu en lots de : 1

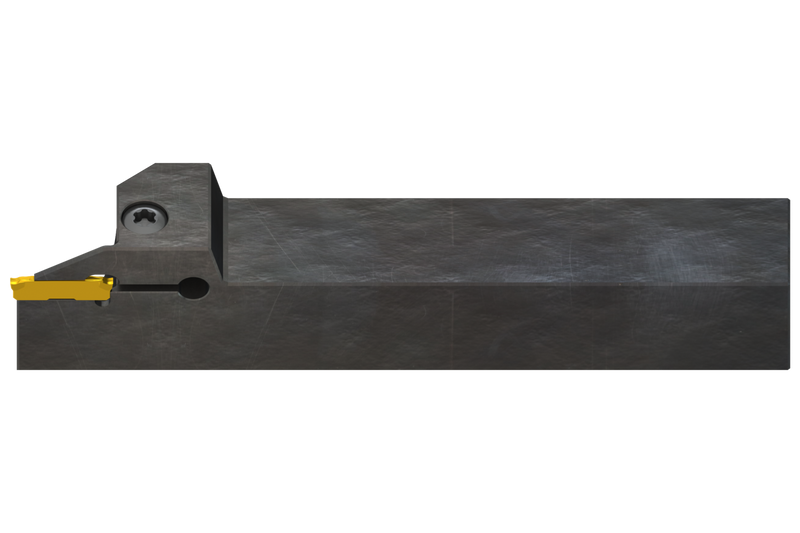

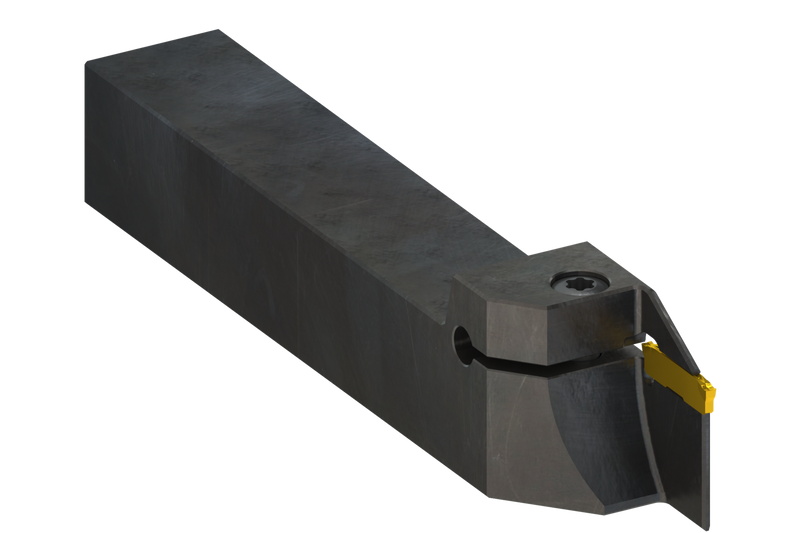

GL1-S2020KFR-16-60 est un porte-outil externe droit pour plaquettes GL. Adapté aux applications de gorge radiale, de tronçonnage, de tournage et de profilage. Conception du corps renforcée pour une durée de vie accrue de l'outil et de faibles vibrations. Corps traité pour une durée de vie accrue de l'outil.

For more information about this product, click here

Identification
Ordering Code (ANSI/ISO)GL1-S2020KFR-16-60
Product Number8462752
Product FamilyGLSF(RL) EXT.
Insert Geometry
Depth of Cut Max — in (APMX)0.63"

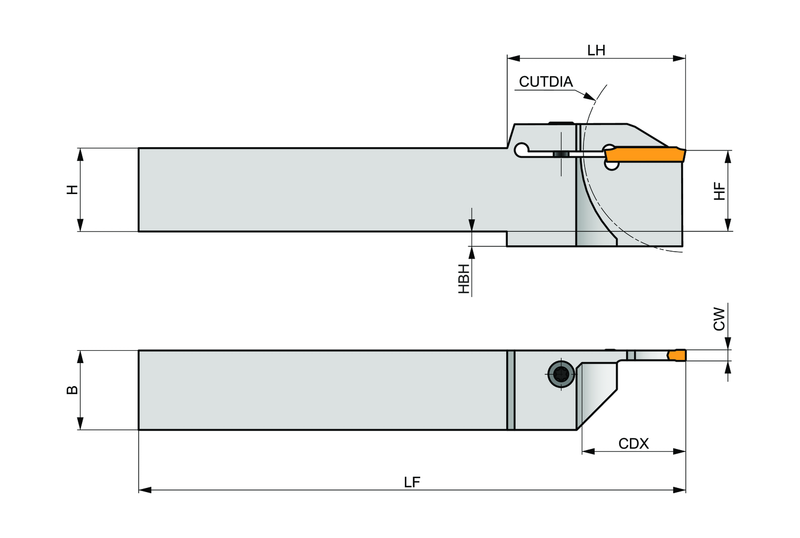

Dimensions
Functional Length — in (LF)4.921"
Functional Length — mm (LF)125.0 mm
Shank Height — mm (H)0.787 mm
Tool Information
Through Coolant No
Reference Numbers
EDP Number8462752
EAN3603604196581
File Type Download
GL1-S2020KFR-16-60 — 3D Model STP Download
GL1-S2020KFR-16-60 — 2D Model DXF Download
GL1-S2020KFR-16-60 — Line Drawing PDF Download
