GL1-S26KBR-16
GL1-S26KBR-16
GL1-S26KBR-16

GL1-S26KBR-16

UGC DOR8462754
par Dormer Pramet
Primary Use:
Availability in Distribution Centers:
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)
For more information about this product, click here
$238.00 CAD - $238.00 CAD
$238.00 CAD
$238.00 CAD - $238.00 CAD
$238.00 CAD

Vendu en lots de : 1

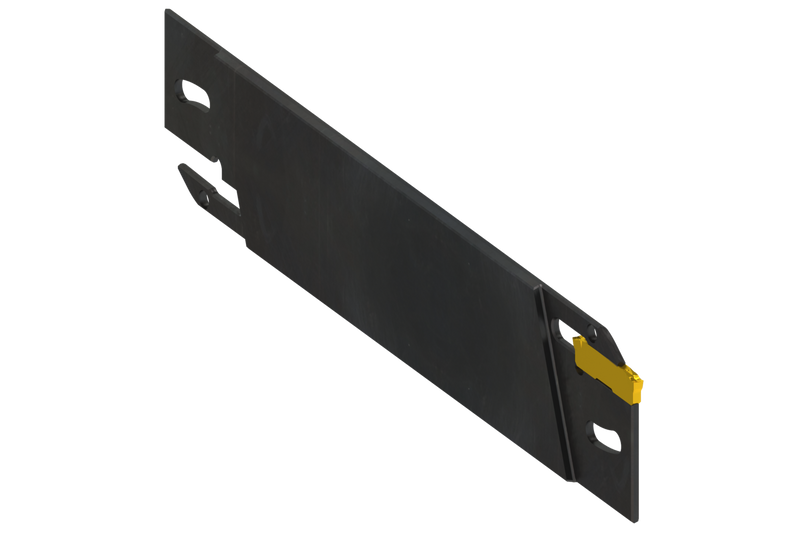

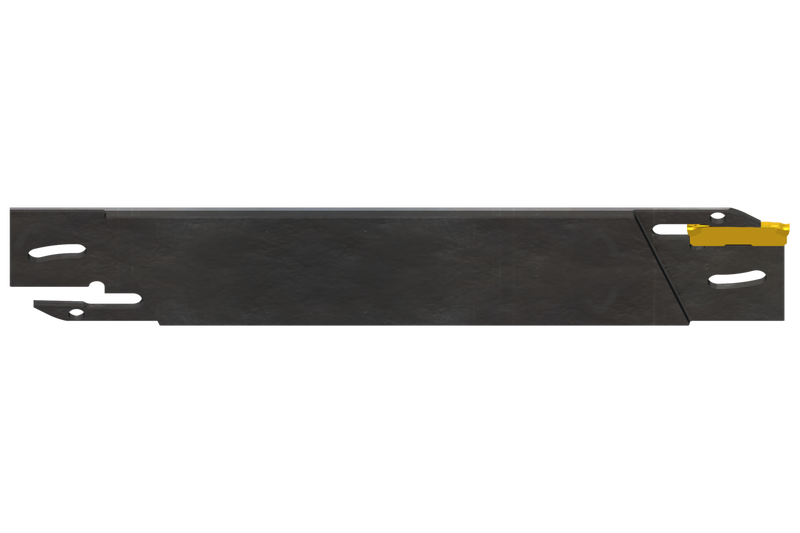

La GL1-S26KBR-16 est une lame pour plaquettes GL, adaptée aux opérations de tronçonnage et de rainurage. Remplacement facile des plaquettes grâce à une clé spécifique (incluse dans l'emballage). Peut être montée sur le porte-outil DU, D. Corps traité pour une durée de vie accrue de l'outil.

For more information about this product, click here

Identification
Ordering Code (ANSI/ISO)GL1-S26KBR-16
Product Number8462754
Product FamilyGLS B
Insert Geometry
Depth of Cut Max — in (APMX)0.63"

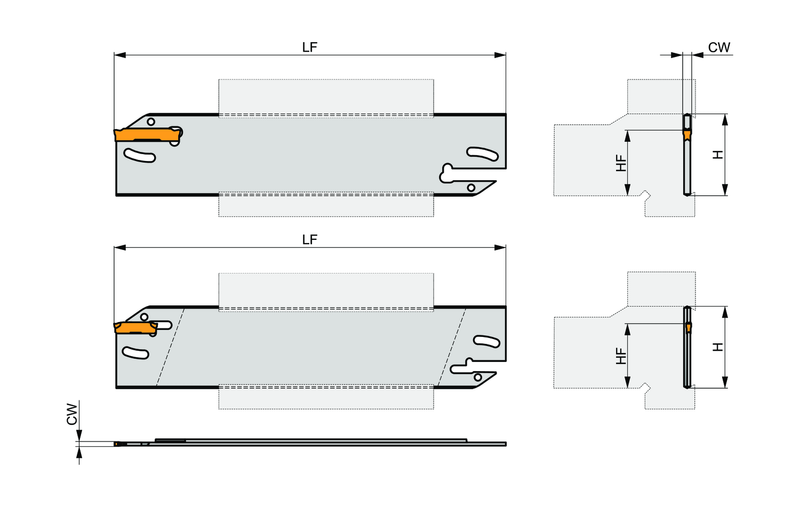

Dimensions
Functional Length — in (LF)4.921"
Functional Length — mm (LF)125.0 mm
Shank Height — mm (H)1.024 mm
Tool Information
Through Coolant No
Reference Numbers
EDP Number8462754
EAN3603604196604
File Type Download
GL1-S26KBR-16 — 3D Model STP Download
GL1-S26KBR-16 — 2D Model DXF Download
GL1-S26KBR-16 — Line Drawing PDF Download
