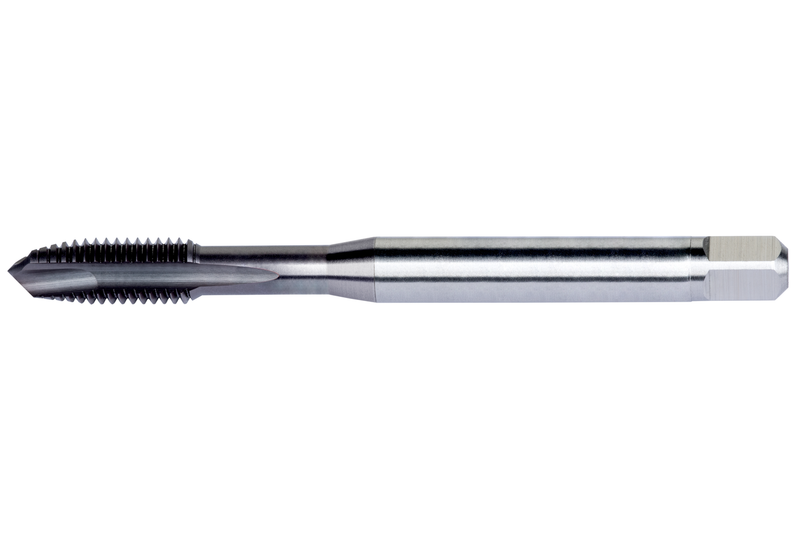

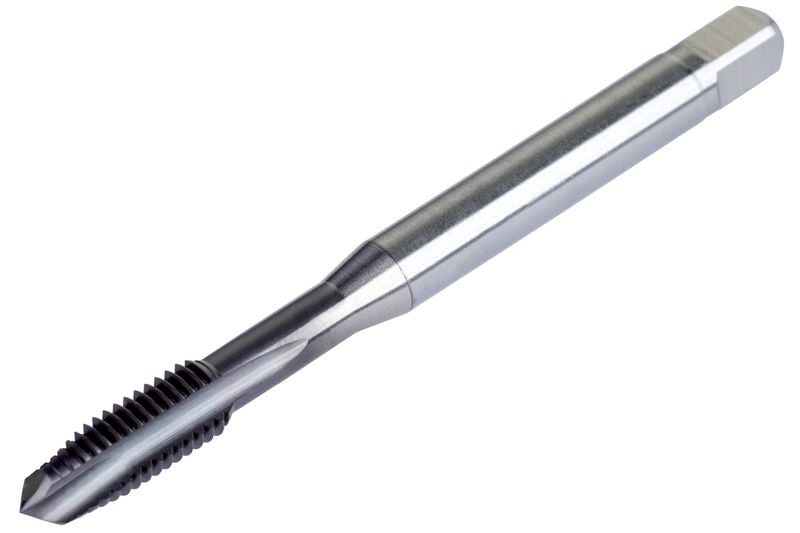

E397M3
E397M3
E397M3

E397M3

UGC DOR8464086
par Dormer Pramet
Primary Use: Possible Use:
Availability in Distribution Centers:
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)
For more information about this product, click here
$19.97 CAD - $19.97 CAD
$19.97 CAD
$19.97 CAD - $19.97 CAD
$19.97 CAD

Vendu en lots de : 1

Filetage M3 mm x 0,5 mm, avec tolérance de filetage de classe 93707, et profondeur de filetage maximale de 7,5 mm.

For more information about this product, click here

Identification
Ordering Code (ANSI/ISO)E397M3
GradeTiCN
Product Number8464086
Product FamilyE397(M)
Dimensions
Overall Length — in (OAL)2.205"
Overall Length — mm (OAL)56.0 mm
Length × Diameter Ratio2.5
Usable Length — in (LU)0.709"
Usable Length — mm (LU)18.0 mm
Connection Dia. — in (DCON)0.138"
Connection Dia. — mm (DCON)3.5 mm
Number of Flutes (NOF)3
Threading
Thread Diameter Size (TDZ)3
Thread Form (THFT)M - Pas métrique gros
Thread Pitch — mm (TP)0.5 mm
Thread Pitch — in (TP)0.02"
Tool Information
Direction of ToolD'accord
StandardDIN 371 LE 10, DIN 376 GE 12
Reference Numbers
EDP Number8464086
EAN3603607095072
File Type Download
E397M3 — Line Drawing PDF Download
