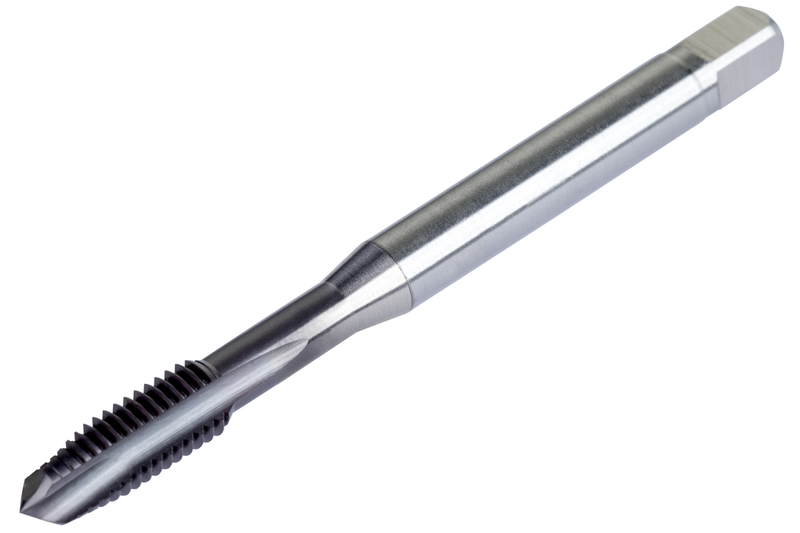

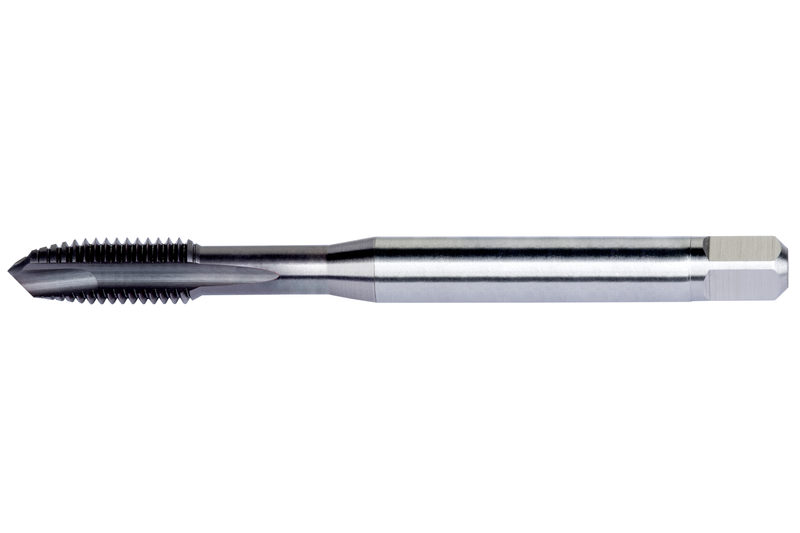

E397M10
E397M10
E397M10

E397M10

UGC DOR8464171
par Dormer Pramet
Primary Use: Possible Use:
Availability in Distribution Centers:
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)
For more information about this product, click here
$30.03 CAD - $30.03 CAD
$30.03 CAD
$30.03 CAD - $30.03 CAD
$30.03 CAD

Vendu en lots de : 1

Taille du filetage M10 mm x 1,5 mm, avec une classe de tolérance de filetage de 93707, et une profondeur de taraudage maximale de 25 mm.

For more information about this product, click here

Identification
Ordering Code (ANSI/ISO)E397M10
GradeTiCN
Product Number8464171
Product FamilyE397(M)
Dimensions
Overall Length — in (OAL)3.937"
Overall Length — mm (OAL)100.0 mm
Length × Diameter Ratio2.5
Usable Length — in (LU)1.535"
Usable Length — mm (LU)39.0 mm
Connection Dia. — in (DCON)0.394"
Connection Dia. — mm (DCON)10.0 mm
Number of Flutes (NOF)3
Threading
Thread Diameter Size (TDZ)10
Thread Form (THFT)M - Pas métrique gros
Thread Pitch — mm (TP)1.5 mm
Thread Pitch — in (TP)0.059"
Tool Information
Direction of ToolD'accord
StandardDIN 371 LE 10, DIN 376 GE 12
Reference Numbers
EDP Number8464171
EAN3603607095126
File Type Download
E397M10 — Line Drawing PDF Download
