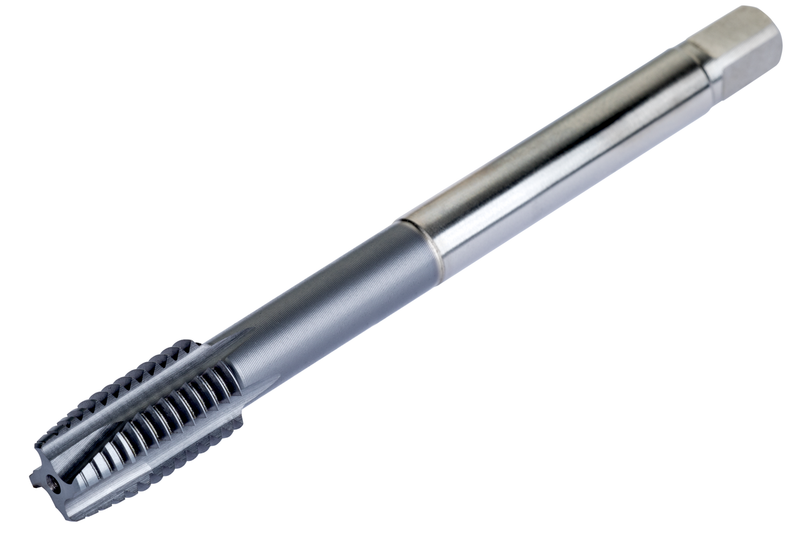

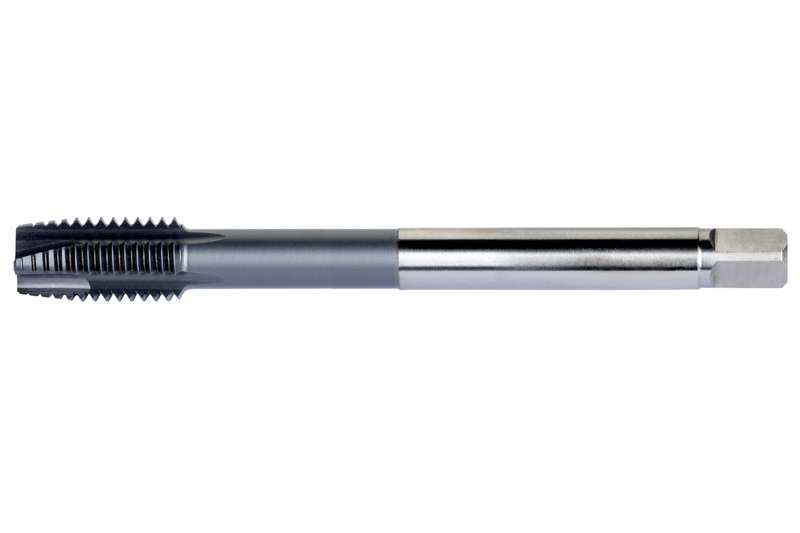

E397M22
E397M22
E397M22

E397M22

UGC DOR8464177
par Dormer Pramet
Primary Use: Possible Use:
Availability in Distribution Centers:
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)
For more information about this product, click here
$117.84 CAD - $117.84 CAD
$117.84 CAD
$117.84 CAD - $117.84 CAD
$117.84 CAD

Vendu en lots de : 1

Filetage M22 mm x 2,5 mm, avec une classe de tolérance de filetage 93707 et une profondeur de filetage maximale de 55 mm.

For more information about this product, click here

Identification
Ordering Code (ANSI/ISO)E397M22
GradeTiCN
Product Number8464177
Product FamilyE397(M)
Dimensions
Overall Length — in (OAL)5.512"
Overall Length — mm (OAL)140.0 mm
Length × Diameter Ratio2.5
Connection Dia. — in (DCON)0.709"
Connection Dia. — mm (DCON)18.0 mm
Number of Flutes (NOF)4
Threading
Thread Diameter Size (TDZ)22
Thread Form (THFT)M - Pas métrique gros
Thread Pitch — mm (TP)2.5 mm
Thread Pitch — in (TP)0.098"
Tool Information
Direction of ToolD'accord
StandardDIN 371 LE 10, DIN 376 GE 12
Reference Numbers
EDP Number8464177
EAN3603607095188
File Type Download
E397M22 — Line Drawing PDF Download
