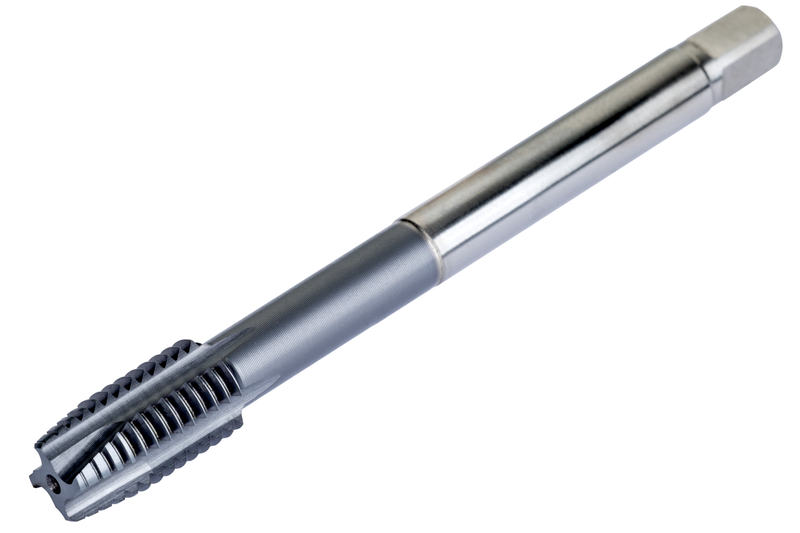

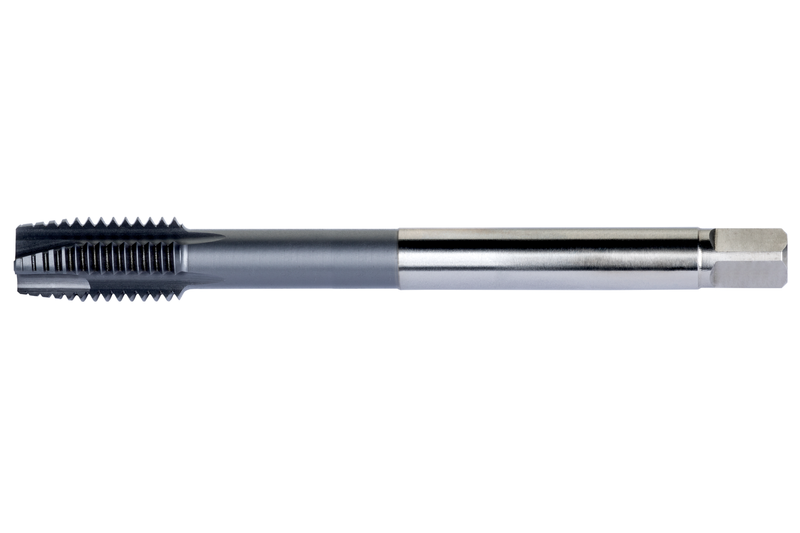

E397M27
E397M27
E397M27

E397M27

UGC DOR8464179
par Dormer Pramet
Primary Use: Possible Use:
Availability in Distribution Centers:
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)
For more information about this product, click here
$159.56 CAD - $159.56 CAD
$159.56 CAD
$159.56 CAD - $159.56 CAD
$159.56 CAD

Vendu en lots de : 1

Taille du filetage M27 mm x 3 mm, avec classe de tolérance de filetage 93707, et profondeur de filetage maximale de 67,5 mm.

For more information about this product, click here

Identification
Ordering Code (ANSI/ISO)E397M27
GradeTiCN
Product Number8464179
Product FamilyE397(M)
Dimensions
Overall Length — in (OAL)6.299"
Overall Length — mm (OAL)160.0 mm
Length × Diameter Ratio2.5
Connection Dia. — in (DCON)0.787"
Connection Dia. — mm (DCON)20.0 mm
Number of Flutes (NOF)4
Threading
Thread Diameter Size (TDZ)27
Thread Form (THFT)M - Filetage métrique à pas gros
Thread Pitch — mm (TP)3.0 mm
Thread Pitch — in (TP)0.118"
Tool Information
Direction of ToolD'accord
StandardDIN 371 LE 10, DIN 376 GE 12
Reference Numbers
EDP Number8464179
EAN3603607095201
File Type Download
E397M27 — Line Drawing PDF Download
