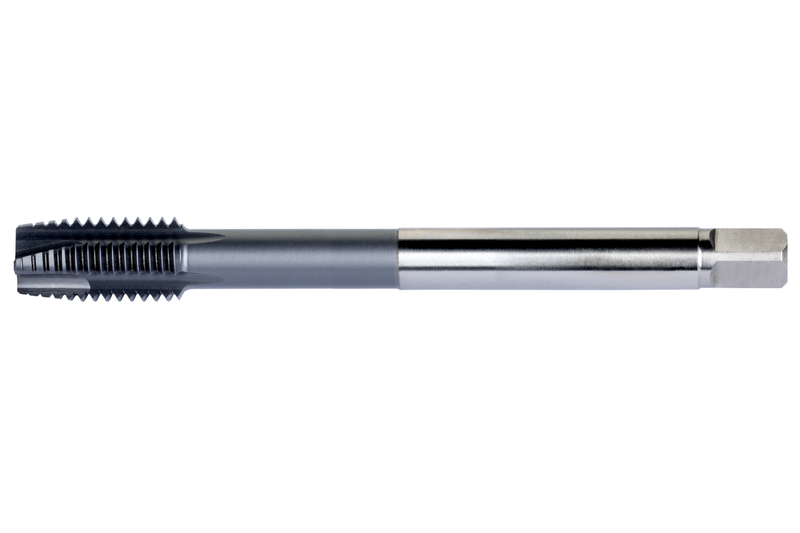

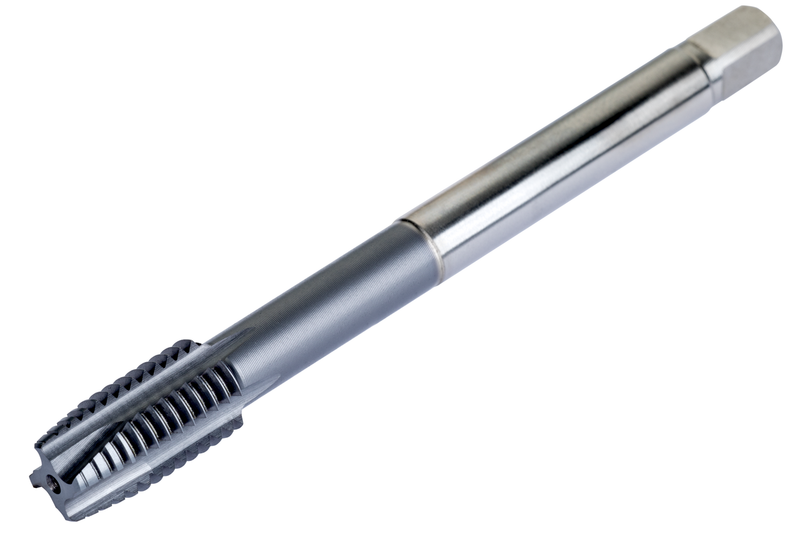

E397M30
E397M30
E397M30

E397M30

UGC DOR8464180
par Dormer Pramet
Primary Use: Possible Use:
Availability in Distribution Centers:
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)
For more information about this product, click here
$188.76 CAD - $188.76 CAD
$188.76 CAD
$188.76 CAD - $188.76 CAD
$188.76 CAD

Vendu en lots de : 1

Taille du filetage M30 mm x 3,5 mm, avec une classe de tolérance de filetage de 93707 et une profondeur de filetage maximale de 75 mm.

For more information about this product, click here

Identification
Ordering Code (ANSI/ISO)E397M30
GradeTiCN
Product Number8464180
Product FamilyE397(M)
Dimensions
Overall Length — in (OAL)7.087"
Overall Length — mm (OAL)180.0 mm
Length × Diameter Ratio2.5
Connection Dia. — in (DCON)0.866"
Connection Dia. — mm (DCON)22.0 mm
Number of Flutes (NOF)4
Threading
Thread Diameter Size (TDZ)30
Thread Form (THFT)M - Pas gros métrique
Thread Pitch — mm (TP)3.5 mm
Thread Pitch — in (TP)0.138"
Tool Information
Direction of ToolD'accord
StandardDIN 371 LE 10, DIN 376 GE 12
Reference Numbers
EDP Number8464180
EAN3603607095218
File Type Download
E397M30 — Line Drawing PDF Download
