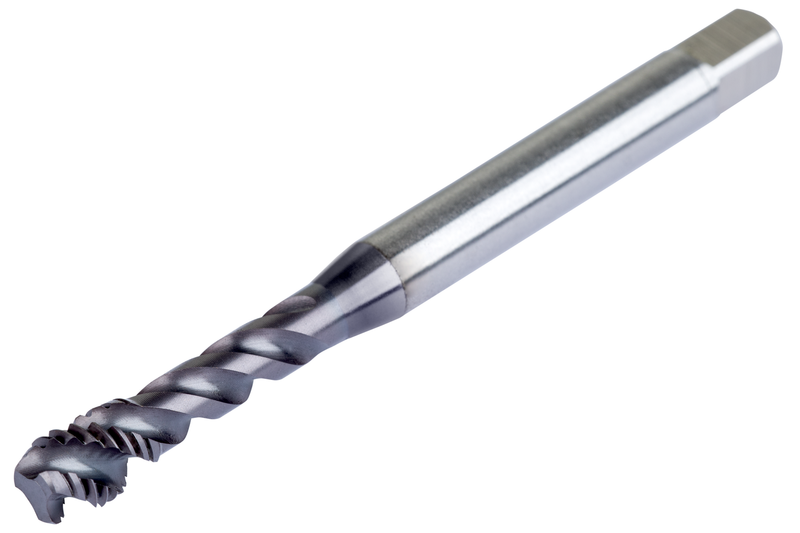

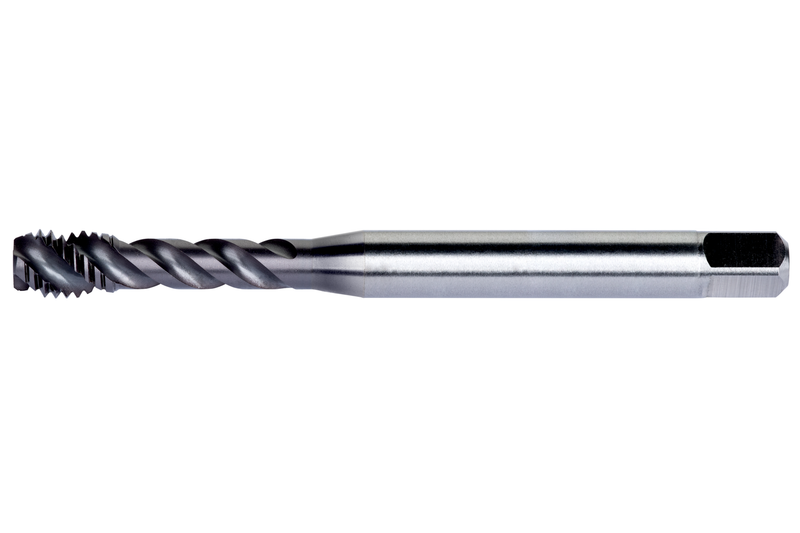

E398M4
E398M4
E398M4

E398M4

UGC DOR8464182
par Dormer Pramet
Primary Use: Possible Use:
Availability in Distribution Centers:
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)
For more information about this product, click here
$22.27 CAD - $22.27 CAD
$22.27 CAD
$22.27 CAD - $22.27 CAD
$22.27 CAD

Vendu en lots de : 1

Filetage M4 mm x 0,7 mm, avec classe de tolérance de filetage 93707 et profondeur de filetage maximale de 10 mm.

For more information about this product, click here

Identification
Ordering Code (ANSI/ISO)E398M4
GradeTiCN
Product Number8464182
Product FamilyE398(M)
Dimensions
Overall Length — in (OAL)2.48"
Overall Length — mm (OAL)63.0 mm
Length × Diameter Ratio2.5
Usable Length — in (LU)0.827"
Usable Length — mm (LU)21.0 mm
Connection Dia. — in (DCON)0.177"
Connection Dia. — mm (DCON)4.5 mm
Number of Flutes (NOF)3
Helix Angle (FHA)48.0°
Threading
Thread Diameter Size (TDZ)4
Thread Form (THFT)M - Pas gros
Thread Pitch — mm (TP)0.7 mm
Thread Pitch — in (TP)0.028"
Tool Information
Direction of ToolD'accord
StandardDIN 371 LE 10, DIN 376 GE 12
Reference Numbers
EDP Number8464182
EAN3603607095232
File Type Download
E398M4 — Line Drawing PDF Download
