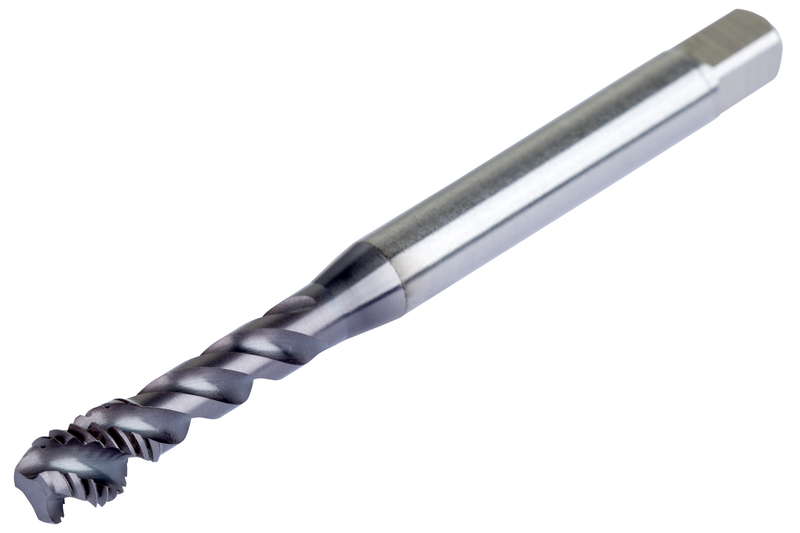

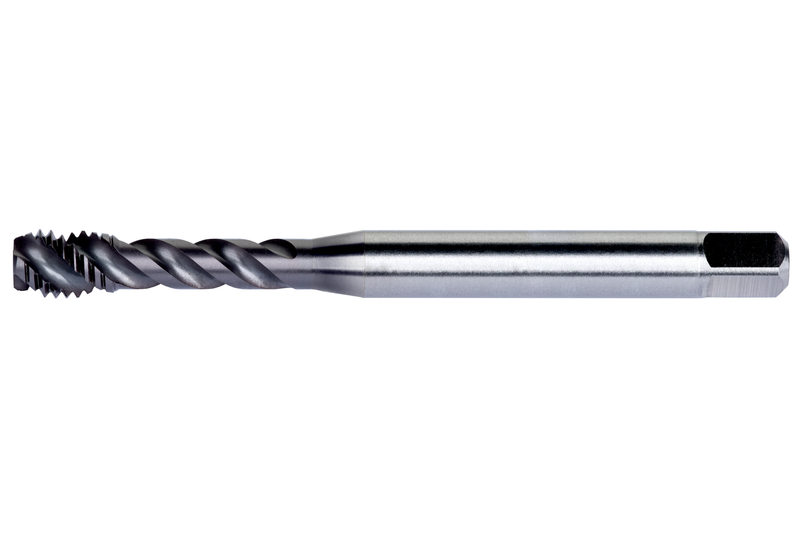

E398M5
E398M5
E398M5

E398M5

UGC DOR8464183
par Dormer Pramet
Primary Use: Possible Use:
Availability in Distribution Centers:
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)
For more information about this product, click here
$23.41 CAD - $23.41 CAD
$23.41 CAD
$23.41 CAD - $23.41 CAD
$23.41 CAD

Vendu en lots de : 1

Taille du filetage M5 mm x 0,8 mm, avec classe de tolérance du filetage 93707, et profondeur de filetage maximale de 12,5 mm.

For more information about this product, click here

Identification
Ordering Code (ANSI/ISO)E398M5
GradeTiCN
Product Number8464183
Product FamilyE398(M)
Dimensions
Overall Length — in (OAL)2.756"
Overall Length — mm (OAL)70.0 mm
Length × Diameter Ratio2.5
Usable Length — in (LU)0.984"
Usable Length — mm (LU)25.0 mm
Connection Dia. — in (DCON)0.236"
Connection Dia. — mm (DCON)6.0 mm
Number of Flutes (NOF)3
Helix Angle (FHA)48.0°
Threading
Thread Diameter Size (TDZ)5
Thread Form (THFT)M - Pas gros
Thread Pitch — mm (TP)0.8 mm
Thread Pitch — in (TP)0.031"
Tool Information
Direction of ToolD'accord
StandardDIN 371 LE 10, DIN 376 GE 12
Reference Numbers
EDP Number8464183
EAN3603607095249
File Type Download
E398M5 — Line Drawing PDF Download
