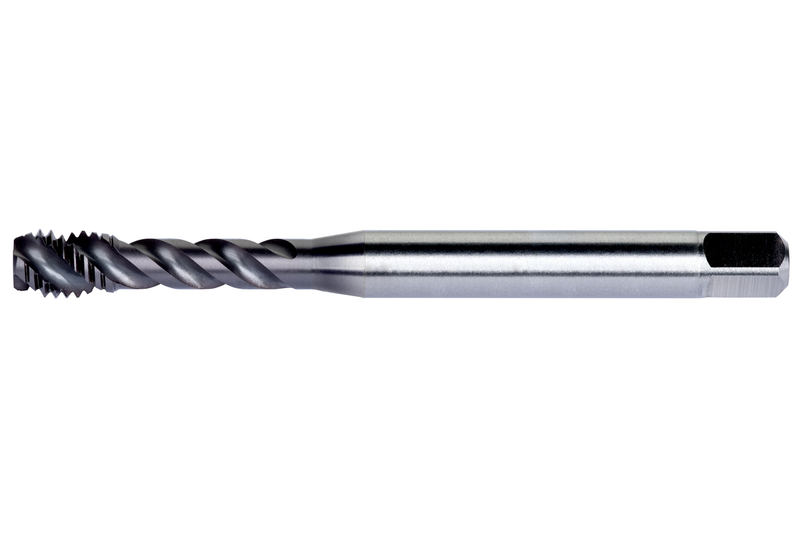

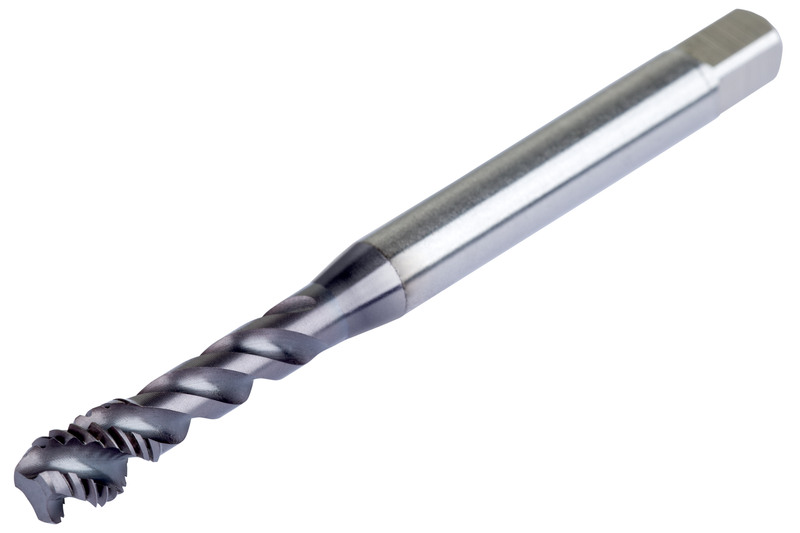

E398M6
E398M6
E398M6

E398M6

UGC DOR8464184
par Dormer Pramet
Primary Use: Possible Use:
Availability in Distribution Centers:
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)
For more information about this product, click here
$23.61 CAD - $23.61 CAD
$23.61 CAD
$23.61 CAD - $23.61 CAD
$23.61 CAD

Vendu en lots de : 1

Filetage M6 mm x 1 mm, avec classe de tolérance de filetage 93707, et profondeur de filetage maximale 15 mm.

For more information about this product, click here

Identification
Ordering Code (ANSI/ISO)E398M6
GradeTiCN
Product Number8464184
Product FamilyE398(M)
Dimensions
Overall Length — in (OAL)3.15"
Overall Length — mm (OAL)80.0 mm
Length × Diameter Ratio2.5
Usable Length — in (LU)1.22"
Usable Length — mm (LU)31.0 mm
Connection Dia. — in (DCON)0.236"
Connection Dia. — mm (DCON)6.0 mm
Number of Flutes (NOF)3
Helix Angle (FHA)48.0°
Threading
Thread Diameter Size (TDZ)6
Thread Form (THFT)M - Pas gros métrique
Thread Pitch — mm (TP)1.0 mm
Thread Pitch — in (TP)0.039"
Tool Information
Direction of ToolD'accord
StandardDIN 371 LE 10, DIN 376 GE 12
Reference Numbers
EDP Number8464184
EAN3603607095256
File Type Download
E398M6 — Line Drawing PDF Download
