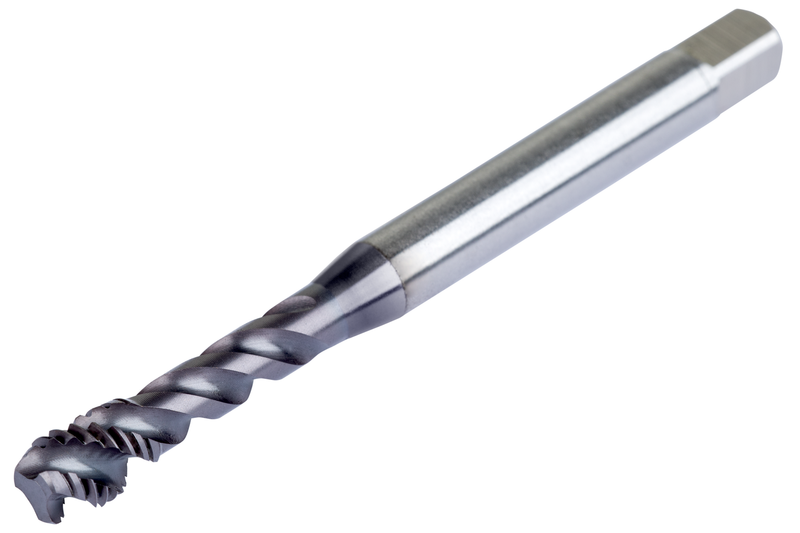

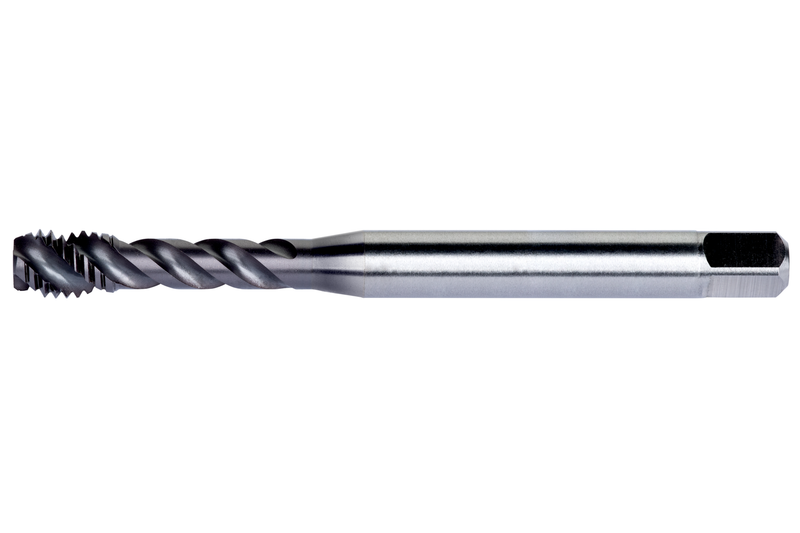

E398M8
E398M8
E398M8

E398M8

UGC DOR8464185
par Dormer Pramet
Primary Use: Possible Use:
Availability in Distribution Centers:
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)
For more information about this product, click here
$27.01 CAD - $27.01 CAD
$27.01 CAD
$27.01 CAD - $27.01 CAD
$27.01 CAD

Vendu en lots de : 1

Filetage M8 mm x 1,25 mm, avec classe de tolérance de filetage 93707, et profondeur de filetage maximale de 20 mm.

For more information about this product, click here

Identification
Ordering Code (ANSI/ISO)E398M8
GradeTiCN
Product Number8464185
Product FamilyE398(M)
Dimensions
Overall Length — in (OAL)3.543"
Overall Length — mm (OAL)90.0 mm
Length × Diameter Ratio2.5
Usable Length — in (LU)1.378"
Usable Length — mm (LU)35.0 mm
Connection Dia. — in (DCON)0.315"
Connection Dia. — mm (DCON)8.0 mm
Number of Flutes (NOF)3
Helix Angle (FHA)48.0°
Threading
Thread Diameter Size (TDZ)8
Thread Form (THFT)M - Métrique à pas gros
Thread Pitch — mm (TP)1.25 mm
Thread Pitch — in (TP)0.049"
Tool Information
Direction of ToolD'accord
StandardDIN 371 LE 10, DIN 376 GE 12
Reference Numbers
EDP Number8464185
EAN3603607095263
