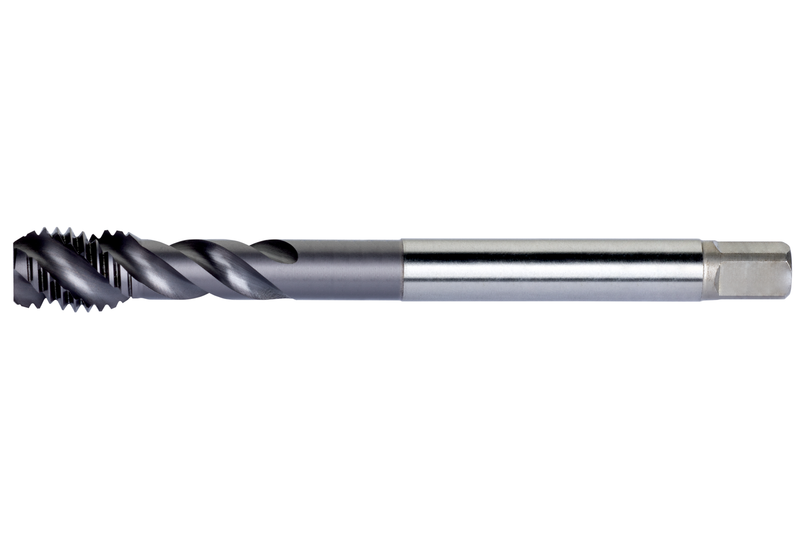

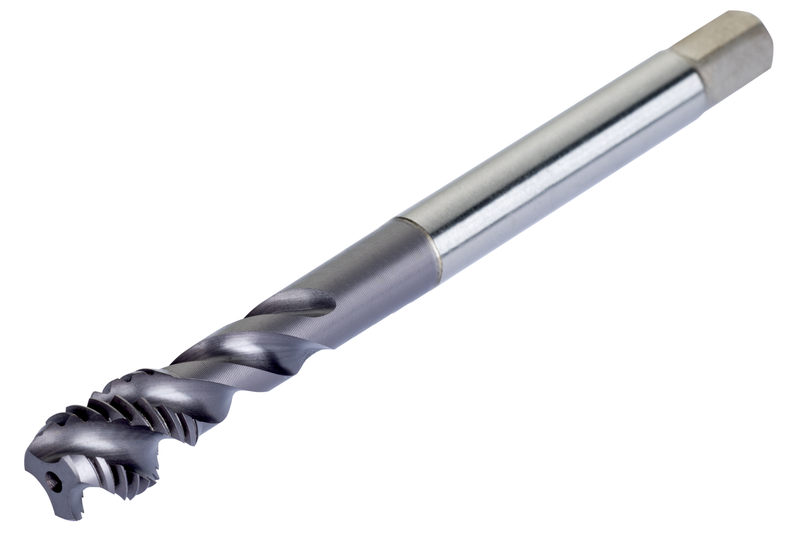

E398M12
E398M12
E398M12

E398M12

UGC DOR8464187
par Dormer Pramet
Primary Use: Possible Use:
Availability in Distribution Centers:
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)
For more information about this product, click here
$42.13 CAD - $42.13 CAD
$42.13 CAD
$42.13 CAD - $42.13 CAD
$42.13 CAD

Vendu en lots de : 1

Taille du filetage M12 mm x 1,75 mm, avec classe de tolérance de filetage 93707 et profondeur de taraudage maximale de 30 mm.

For more information about this product, click here

Identification
Ordering Code (ANSI/ISO)E398M12
GradeTiCN
Product Number8464187
Product FamilyE398(M)
Dimensions
Overall Length — in (OAL)4.331"
Overall Length — mm (OAL)110.0 mm
Length × Diameter Ratio2.5
Connection Dia. — in (DCON)0.354"
Connection Dia. — mm (DCON)9.0 mm
Number of Flutes (NOF)3
Helix Angle (FHA)48.0°
Threading
Thread Diameter Size (TDZ)12
Thread Form (THFT)M - Filetage métrique à pas gros
Thread Pitch — mm (TP)1.75 mm
Thread Pitch — in (TP)0.069"
Tool Information
Direction of ToolD'accord
StandardDIN 371 LE 10, DIN 376 GE 12
Reference Numbers
EDP Number8464187
EAN3603607095287
File Type Download
E398M12 — Line Drawing PDF Download
