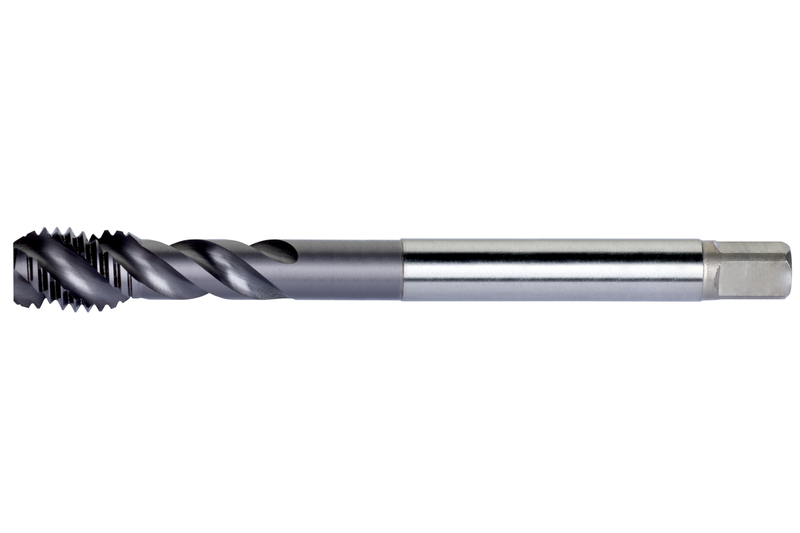

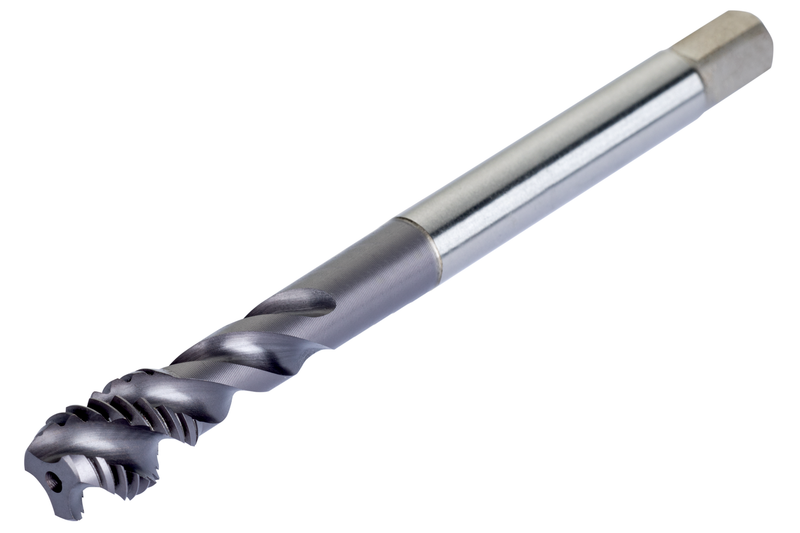

E398M16
E398M16
E398M16

E398M16

UGC DOR8464189
par Dormer Pramet
Primary Use: Possible Use:
Availability in Distribution Centers:
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)
For more information about this product, click here
$59.44 CAD - $59.44 CAD
$59.44 CAD
$59.44 CAD - $59.44 CAD
$59.44 CAD

Vendu en lots de : 1

Diamètre de filetage M16 mm x 2 mm, avec classe de tolérance de filetage 93707, et profondeur de filetage maximale de 40 mm.

For more information about this product, click here

Identification
Ordering Code (ANSI/ISO)E398M16
GradeTiCN
Product Number8464189
Product FamilyE398(M)
Dimensions
Overall Length — in (OAL)4.331"
Overall Length — mm (OAL)110.0 mm
Length × Diameter Ratio2.5
Connection Dia. — in (DCON)0.472"
Connection Dia. — mm (DCON)12.0 mm
Number of Flutes (NOF)4
Helix Angle (FHA)48.0°
Threading
Thread Diameter Size (TDZ)16
Thread Form (THFT)M - Pas gros métrique
Thread Pitch — mm (TP)2.0 mm
Thread Pitch — in (TP)0.079"
Tool Information
Direction of ToolD'accord
StandardDIN 371 LE 10, DIN 376 GE 12
Reference Numbers
EDP Number8464189
EAN3603607095300
File Type Download
E398M16 — Line Drawing PDF Download
