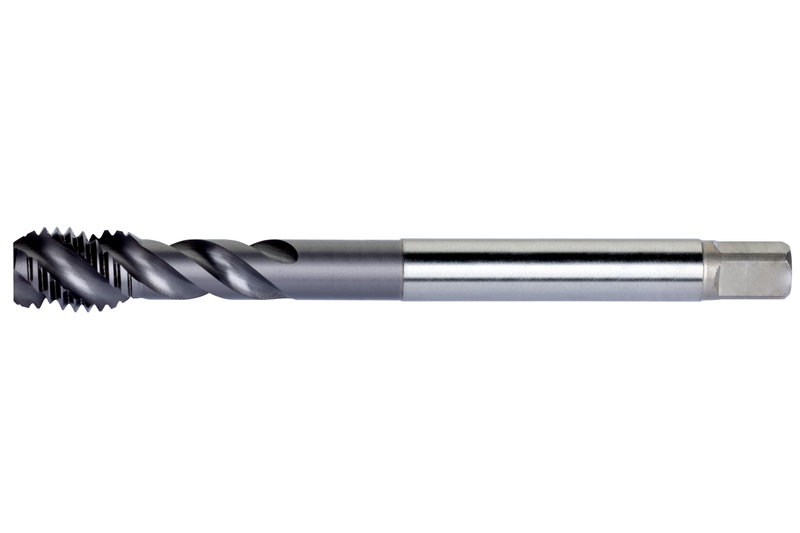

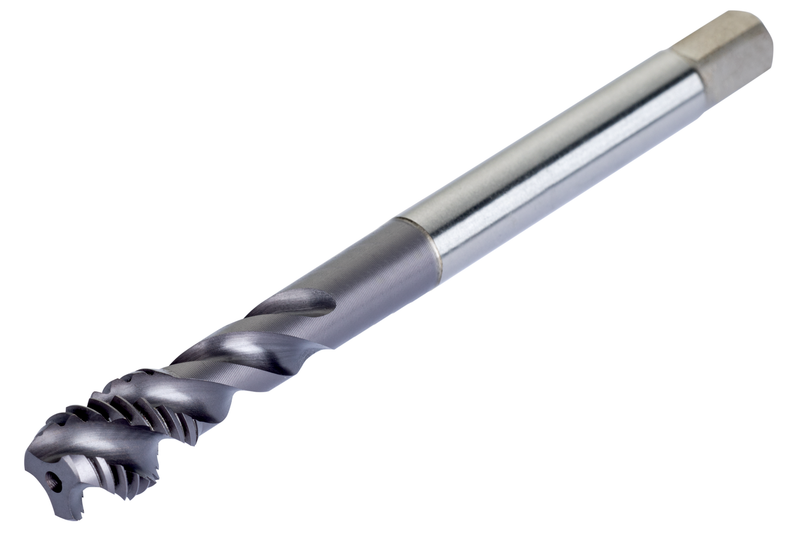

E398M18
E398M18
E398M18

E398M18

UGC DOR8464190
par Dormer Pramet
Primary Use: Possible Use:
Availability in Distribution Centers:
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)
For more information about this product, click here
$87.09 CAD - $87.09 CAD
$87.09 CAD
$87.09 CAD - $87.09 CAD
$87.09 CAD

Vendu en lots de : 1

Filetage M18 mm x 2,5 mm, avec une classe de tolérance de filetage de 93707, et une profondeur de filetage maximale de 45 mm.

For more information about this product, click here

Identification
Ordering Code (ANSI/ISO)E398M18
GradeTiCN
Product Number8464190
Product FamilyE398(M)
Dimensions
Overall Length — in (OAL)4.921"
Overall Length — mm (OAL)125.0 mm
Length × Diameter Ratio2.5
Connection Dia. — in (DCON)0.551"
Connection Dia. — mm (DCON)14.0 mm
Number of Flutes (NOF)4
Helix Angle (FHA)48.0°
Threading
Thread Diameter Size (TDZ)18
Thread Form (THFT)M - Pas métrique gros
Thread Pitch — mm (TP)2.5 mm
Thread Pitch — in (TP)0.098"
Tool Information
Direction of ToolD'accord
StandardDIN 371 LE 10, DIN 376 GE 12
Reference Numbers
EDP Number8464190
EAN3603607095317
File Type Download
E398M18 — Line Drawing PDF Download
