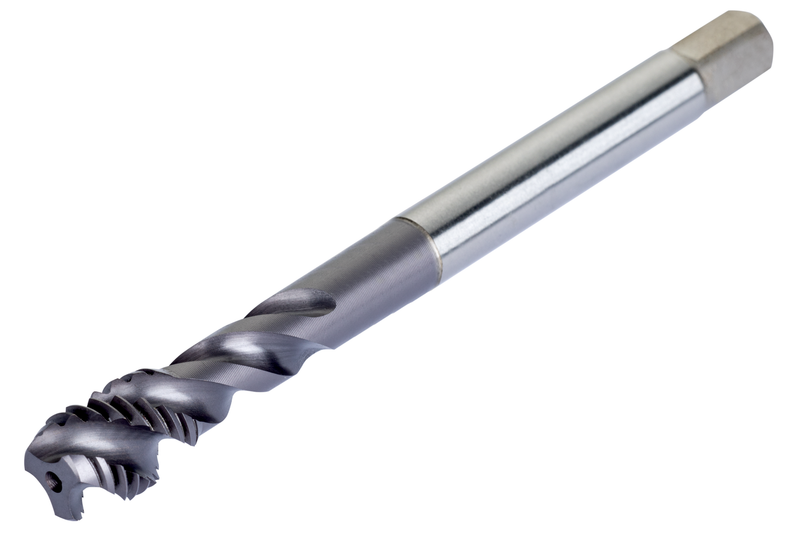

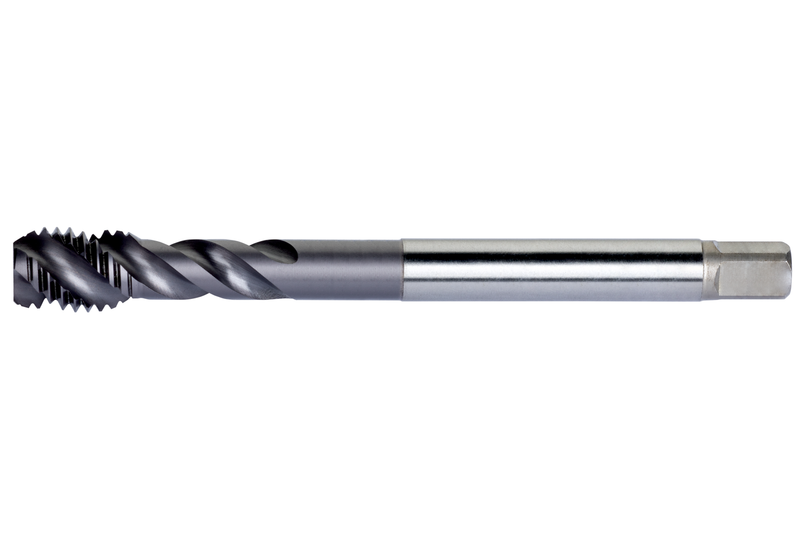

E398M20
E398M20
E398M20

E398M20

UGC DOR8464191
par Dormer Pramet
Primary Use: Possible Use:
Availability in Distribution Centers:
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)
For more information about this product, click here
$90.73 CAD - $90.73 CAD
$90.73 CAD
$90.73 CAD - $90.73 CAD
$90.73 CAD

Vendu en lots de : 1

Filetage M20 mm x 2,5 mm, avec une tolérance de filetage de classe 93707 et une profondeur de filetage maximale de 50 mm.

For more information about this product, click here

Identification
Ordering Code (ANSI/ISO)E398M20
GradeTiCN
Product Number8464191
Product FamilyE398(M)
Dimensions
Overall Length — in (OAL)5.512"
Overall Length — mm (OAL)140.0 mm
Length × Diameter Ratio2.5
Connection Dia. — in (DCON)0.63"
Connection Dia. — mm (DCON)16.0 mm
Number of Flutes (NOF)4
Helix Angle (FHA)48.0°
Threading
Thread Diameter Size (TDZ)20
Thread Form (THFT)M - Pas métrique gros
Thread Pitch — mm (TP)2.5 mm
Thread Pitch — in (TP)0.098"
Tool Information
Direction of ToolD'accord
StandardDIN 371 LE 10, DIN 376 GE 12
Reference Numbers
EDP Number8464191
EAN3603607095324
File Type Download
E398M20 — Line Drawing PDF Download
