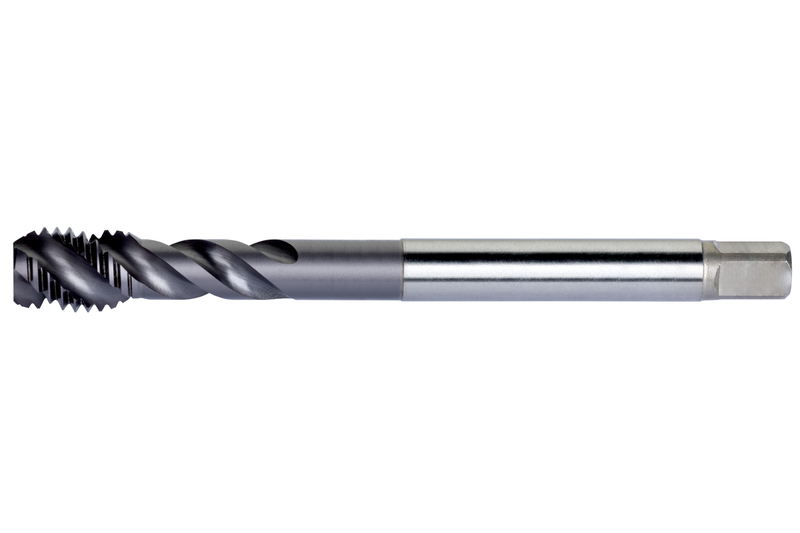

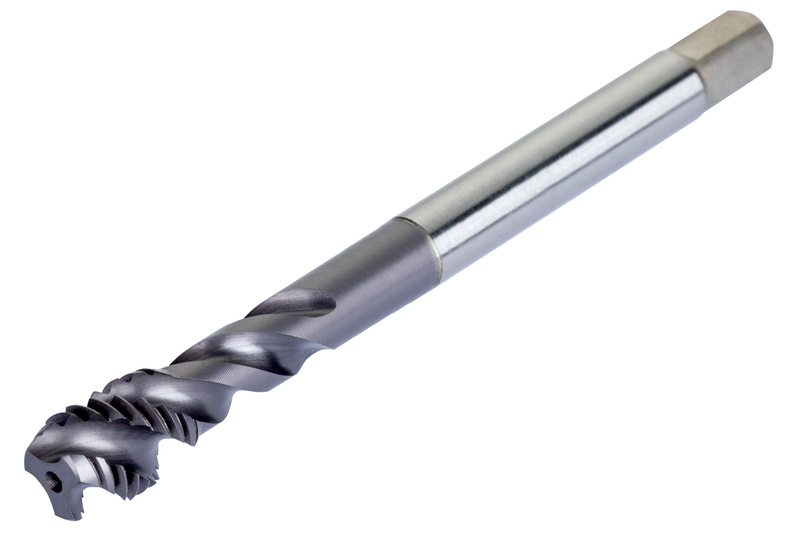

E398M24
E398M24
E398M24

E398M24

UGC DOR8464193
par Dormer Pramet
Primary Use: Possible Use:
Availability in Distribution Centers:
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)
For more information about this product, click here
$121.50 CAD - $121.50 CAD
$121.50 CAD
$121.50 CAD - $121.50 CAD
$121.50 CAD

Vendu en lots de : 1

Filetage M24 mm x 3 mm, avec tolérance de filetage de classe 93707 et profondeur de filetage maximale de 60 mm.

For more information about this product, click here

Identification
Ordering Code (ANSI/ISO)E398M24
GradeTiCN
Product Number8464193
Product FamilyE398(M)
Dimensions
Overall Length — in (OAL)6.299"
Overall Length — mm (OAL)160.0 mm
Length × Diameter Ratio2.5
Connection Dia. — in (DCON)0.709"
Connection Dia. — mm (DCON)18.0 mm
Number of Flutes (NOF)4
Helix Angle (FHA)48.0°
Threading
Thread Diameter Size (TDZ)24
Thread Form (THFT)M - Métrique à pas gros
Thread Pitch — mm (TP)3.0 mm
Thread Pitch — in (TP)0.118"
Tool Information
Direction of ToolD'accord
StandardDIN 371 LE 10, DIN 376 GE 12
Reference Numbers
EDP Number8464193
EAN3603607095348
File Type Download
E398M24 — Line Drawing PDF Download
